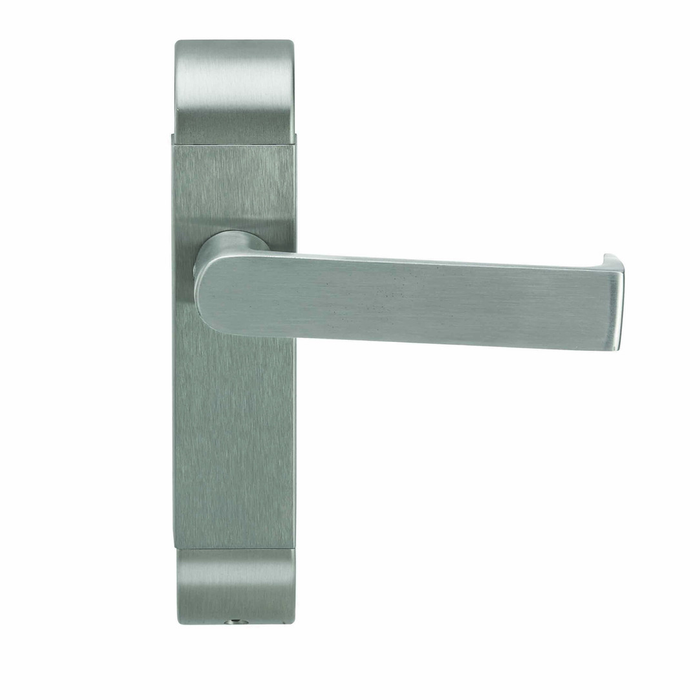

4600 HEAVY DUTY DESIGNER DEADLATCH HANDLES
The 4600 Heavy Duty Designer Deadlatch Handles are designed to operate Adams Rite deadlatches and retrofit onto the 2190 Interconnected Deadbolt/Deadlatch.Offered in a wide range of lever designs and architectural finishes to match the clean lines of a narrow stile door.
FUNCTIONS
Designed to operate 4300, 4500, and 4900 Series Deadlatches with either an upward or downward motion. 4600 Deadlatch Handles can be retrofitted in the field onto the 2190/2290 Interconnected Deadbolt/Deadlatch. Shipped handed, but easily reconfigured to accommodate either door swing. MV and MN handle types cannotbe re-handed. The patented adjustable drive mechanism allows the escutcheon to be set back from the door edge at the time of installation to provide additional clearance. Monitoring switch optional to provide signal when lever is actuated.
FEATURES
Handle
- Available in standard and designer series levers to blend with existing architecture or to create a new design statement. Made from solid cast stainless, brass, or bronze, and finished to match any design requirement.
- Standard series lever styles (-01, -02, -03) are designed to return within 1/2” [12.7 mm] of the door face, often required by code. Please verify local code requirementsto ensure compliance.
Escutcheons: Mounted base is secured by hidden screws and has two large helical compression springs. A 1/4” [6.4 mm] square heat-treated spindle is part of escutcheon assembly, which interlocks with the cam plug. Finished to match lever.
Cam Plug: Cam plug is required when 4600 handles are used to operate 4300,4500 or 4900 Series Deadlatches. Secured to the latch body by cylinder setscrew, the cam plug is tied to the handle escutcheon by integral anti-rotation pins.Handing easily reversed with push and-release cam design.
Standard Package: Individually packaged with cam plug (as needed), fasteners, and optional equipment specified.
Shipping Weight: 3 lbs [1.36 kg].
OPTIONS
- Ordered for left or right hand door, but is easily reconfigured in the field to accommodate either door swing.
- Standard handles are for 1-3/4” [44.5 mm] thick doors. Please contact factory for doors up to 3-1/4" [82.6 mm] available by special order. Please use part number DTK-4600 for fixed lever (dummy) kit.
- Please use part number TBK-4600 for through-bolt mounting kit for back to-back mounting on wood doors.
- Available in choice of US3 (605) Bright brass, US4 (606) Satin brass,10B powder coat to match Dark Bronze, US32 (629) Bright stainless, or US32D (630) Satin stainless
PRODUCT NOTE
- The 4600M with switch option cannot be used in conjunction with the 4300 Electrified Deadlatch.
DOCUMENTS
4600 Lever with 4300, 4500, 4900 Deadlatch Install Instructions
- Brand:
- Adams Rite
- Category:
- Parts and Accessories
- Series:
- 4600 Series
- Compatibilty:
- 4300, 4500, 4900 Series Deadlatches
- Product Group:
- Parts and Accessories
- Model:
- 4600
- Door Thickness:
- 1-3/4" to 1-7/8"
- Product Subgroup:
- Parts and Accessories
- Product Type:
- Deadlatch Handles
- Subcategory:
- Door Trims
- Commercial/Residential:
- Commercial
- Electronic:
- No
- Handle Type:
- Lever
- Substrate:
- Stainless Steel
