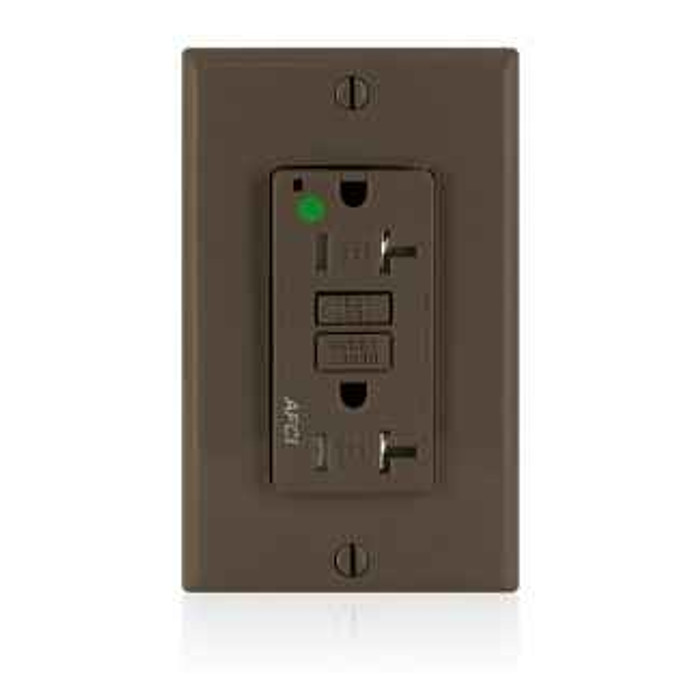

Leviton AFTR2-HG AFCI Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Wallplate Included, Tamper-Resistant, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Brown

Leviton AFTR2-HG AFCI Duplex Receptacle, Hospital Grade Tamper-Resistant, 20A 125V

(No reviews yet) Write a Review

Model: AFTR2-HG

In Stock (leaves warehouse same day if ordered before 3pm ET)

$125.26
$86.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton AFTR2-HG AFCI Duplex Receptacle, Hospital Grade Tamper-Resistant, 20A 125V

The Leviton AFTR2-HG is a heavy-duty hospital grade AFCI duplex receptacle rated 20A at 125V, built to protect against dangerous arc-fault conditions while meeting NEMA 5-20R configuration requirements. This 2-pole, 3-wire, self-grounding device accepts back or side wiring, ships with a wallplate included, and is finished in brown for a clean, professional appearance in healthcare, commercial, and industrial installations.

Key Features

  • Electrical Rating: 20 Amp, 125 Volt, NEMA 5-20R configuration for reliable power delivery.
  • AFCI Protection: Arc-fault circuit interrupter technology with power indication for added safety monitoring.
  • Hospital Grade Construction: Heavy-duty design with a Polycarbonate body and PBT face for enhanced durability.
  • Tamper-Resistant: Integrated shutters help prevent foreign object insertion for added occupant safety.
  • Wiring Flexibility: Back or side wire termination accommodates 14-10 AWG solid or stranded conductors.
  • Self-Grounding Design: Brass ground clips and a plated steel grounding screw simplify code-compliant grounding.
  • Durable Contacts: Brass double wipe line contacts, .031" thick, for a secure, long-lasting connection.
  • Wallplate Included: Ships complete with a matching wallplate for a finished installation out of the box.

Certifications & Compliance

  • UL, CSA, and NOM-ANCE Listed
  • Dielectric Withstands 2000V per UL498
  • ANSI C-73 Compliant
  • NEMA WD-1 & WD-6
  • Flammability Rated V-0 per UL 94

Technical Specifications

  • At Rated Voltage: 1 HP
  • Body Material: Polycarbonate
  • Certification Listing: UL, CSA, NOM-ANCE
  • Dielectric Voltage: Withstands 2000V per UL498
  • Face Material: PBT
  • Ground Clips: Brass
  • Grounding Screw: Plated Steel
  • Line Contacts: Brass Double Wipe .031 Thick
  • Operating Temperature: -35C to +66C
  • Product Id: Ratings are permanently marked on device
  • Strap Material: Zinc-Plated Steel
  • Terminal Accom: 14-10 AWG solid or stranded
  • Terminal Clamp: Plated Steel
  • Terminal Id: Brass-Hot, Green-Ground, Silver-Neutral
  • Terminal Screws: Plated Steel
  • Ansi: C-73
  • Feature: Wallplate Included, Tamper-Resistant, Power Indication
  • Flammability Class: Rated V-0 per UL 94
  • Nema: WD-1 & WD-6
  • Pole: 2
  • Wire Count: 3
  • Product Voltage: 125 VAC

Typical Applications

  • Hospitals and Healthcare Facilities
  • Patient Care and Clinical Areas
  • Commercial and Institutional Wiring Device Upgrades
  • Arc-Fault Protected Branch Circuits
  • Tamper-Resistant Receptacle Retrofits

Why Leviton?

Leviton engineers the AFTR2-HG to hospital grade standards, combining a Polycarbonate body, PBT face, brass double wipe contacts, and UL, CSA, and NOM-ANCE listing for dependable, code-compliant performance. Facility managers and electrical contractors can specify this AFCI receptacle with confidence in demanding, safety-critical environments.

Manufacturer Resources

Technical Information

Product Specs

At Rated Voltage:
1 HP
Body Material:
Polycarbonate
Certification Listing:
UL, CSA, NOM-ANCE
Device Type:
Duplex Receptacle Outlet
Dielectric Voltage:
Withstands 2000V per UL498
Face Material:
PBT
Ground Clips:
Brass
Grounding Screw:
Plated Steel
Line Contacts:
Brass Double Wipe .031 Thick
Operating Temperature:
-35C to +66C
Product Id:
Ratings are permanently marked on device
Strap Material:
Zinc-Plated Steel
Terminal Accom:
14-10 AWG solid or stranded
Terminal Clamp:
Plated Steel
Terminal Id:
Brass-Hot, Green-Ground, Silver-Neutral
Terminal Screws:
Plated Steel
Product Group:
Outlets
Department:
Electrical
Product Subgroup:
Switches & Receptacles
Amperage Rating:
20 A
Ansi:
C-73
Feature:
Wallplate Included, Tamper-Resistant, Power Indication
Flammability Class:
Rated V-0 per UL 94
Grade:
Heavy-Duty Hospital Grade
Grounding:
Self-Grounding
Nema:
WD-1 & WD-6
Pole:
2
Termination:
Back or Side Wire
Wire Count:
3
Product Voltage:
125 VAC
Product Function:
AFCI
Product Color:
Brown
Product Type:
Receptacle
