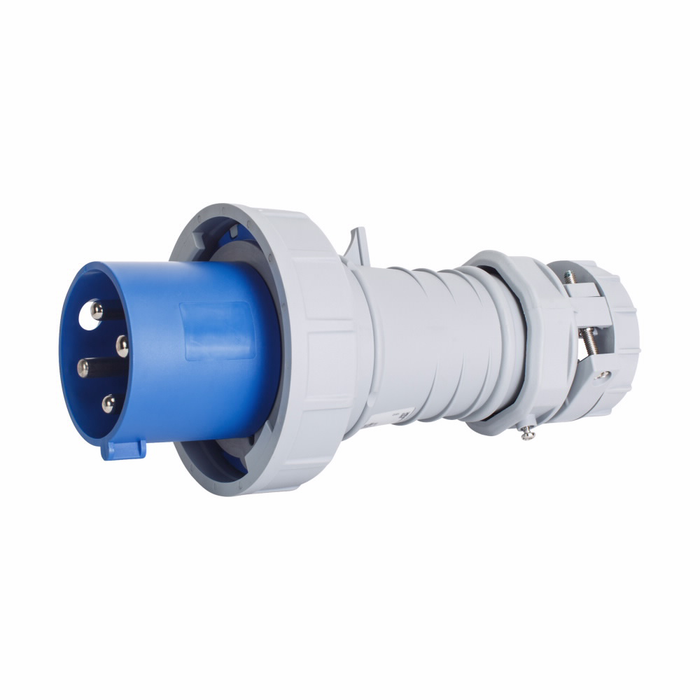

Eaton Pin and Sleeve Plug, 60A Three-Phase, Nylon

Eaton Pin and Sleeve Plug, 60A Three-Phase, Nylon

(No reviews yet) Write a Review

Model: AH460P9W
Selected Color is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$411.96
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Pin and Sleeve Plug, 60A Three-Phase, Nylon

The Eaton Pin and Sleeve Plug, 60A Three-Phase, Nylon is a heavy-duty male plug engineered for demanding industrial power connections. Rated 60A with a three-phase, three-pole, 4-wire configuration, this pin and sleeve design delivers a secure connection backed by an IP69K environmental resistance rating for high-pressure, high-temperature washdown environments. Its nylon face/body construction and nickel-plated brass contacts make it well suited for industrial, food and beverage, and wastewater treatment applications where durability and reliable conductivity are essential.

Key Features

  • Amperage Rating: 60A for heavy-duty three-phase power connections.
  • Durable Construction: Nylon face/body material provides corrosion resistance and impact strength in harsh environments.
  • Design Type: Pin and sleeve plug configuration for secure, dependable power transfer.
  • Phase and Poles: Three-phase, three-pole design with 4 wires for balanced industrial power distribution.
  • Environmental Resistance: IP69K rated to withstand high-pressure, high-temperature washdown, ideal for food and beverage and wastewater treatment settings.
  • Contact Material: Nickel-plated brass contacts deliver reliable conductivity and long-term corrosion resistance.
  • Torque Rating: 28 lbf-inch for secure termination.
  • Allowable Wire Size: #8-2 AWG, #10-2 AWG (ground), #12-16 AWG (pilot) for flexible field wiring options.
  • Cord Diameter: Accommodates cord diameters of 0.66-1.5in (1.68-3.81cm).
  • Gender: Male plug design for mating with corresponding pin and sleeve connectors.

Certifications & Compliance

  • IP69K Environmental Resistance Rating

Technical Specifications

  • Amperage Rating: 60A
  • Product Type: Electrical Component
  • Warranty: Refer to warranty document.
  • Number of wires: 4

Typical Applications

  • Industrial Electrical Installations
  • Food and Beverage Processing Facilities
  • Wastewater Treatment Plants
  • Washdown and Wet-Location Environments
  • Heavy-Duty Three-Phase Power Distribution

Why Eaton?

Eaton pin and sleeve plugs combine durable nylon construction, nickel-plated brass contacts, and an IP69K environmental resistance rating to deliver dependable performance in demanding industrial, food and beverage, and wastewater treatment environments. Built to handle 60A three-phase loads with a secure connection, this plug is engineered for professionals who need consistent, code-compliant power connections on the job site.

Manufacturer Resources

Product Specs

Torque rating:
28 lbf-inch
Amperage Rating:
60A
Application:
Industrial, food and beverage, wastewater treatment
Product Height:
5.125 in
Product Type:
Pin and Sleeve Plug
Phase:
Three-phase
Design type:
Pin and sleeve plug
Cord diameter:
0.66-1.5in (1.68-3.81cm)
Environmental resistance:
IP69K
Warranty:
Refer to warranty document.
Gender:
Male
Contact material:
Nickel plated brass
Number Of Poles:
Three-pole
Product Width:
5.125 in
Certifications:
Contact Manufacturer
Product Length/Depth:
11.5 in
Face/body material:
Nylon
Product Material:
Nylon
Allowable wire size:
#8-2 AWG, #10-2 AWG (ground), #12-16 AWG (pilot)
Number of wires:
4
Department:
Electrical
Configuration:
Three-Phase
Product Group:
Wiring Devices
Product Subgroup:
Pin & Sleeve Devices
Product Weight:
1.96 lb
Product Length:
11.5 in

Eaton AH460P9W – Frequently Asked Questions

1) What voltage and color options does the Eaton AH460P 60A pin and sleeve plug come in?
Two builds: the AH460P7W is the red 480 volt version, and the AH460P9W is the blue 250 volt version. Color is not cosmetic on pin and sleeve devices, it tracks the voltage band, so pick the one that matches the receptacle already on the wall or you will not be able to mate them.
2) What wire sizes can I terminate in the Eaton 60A pin and sleeve plug?
Line conductors land #8-2 AWG, the ground takes #10-2 AWG, and the pilot terminals take #12-16 AWG. Terminal screws torque to 28 lbf-inch. Anything smaller than #8 on the line side is outside what the plug is built to clamp.
3) Will this Eaton plug fit my SO cord?
The cord grip accepts jacket diameters from 0.66 to 1.5 inches (1.68 to 3.81 cm). Measure the outside diameter of your cable jacket, not the conductor size, and if it falls under 0.66 inches you will not get a watertight seal at the gland, which defeats the IP69K rating.
4) Is the Eaton AH460P rated for high pressure washdown?
IP69K, which is the washdown rating for high-pressure, high-temperature spray. That is why it shows up in food and beverage plants and wastewater treatment as well as general industrial work. The nylon body and nickel-plated brass contacts hold up to the chemistry and moisture that come with those rooms.
5) Is the Eaton AH460P a 3-pole 4-wire plug, and does that mean it has a neutral?
It is a three-phase, three-pole, 4-wire device: three current-carrying poles plus a ground. There is no separate neutral pole, so it suits a 3-phase delta load like a motor or a hoist, not a 3-phase-plus-neutral panel feed. If your load needs a neutral you want a 4-pole, 5-wire device instead.
6) I need a 250V plug but the load is single-phase, not three-phase - what should I use instead of the Eaton AH460P?
The Eaton AH460P is a three-phase, three-pole plug, so it is not the right device for a single-phase load even in the blue 250 volt version. For 250V single-phase, the Leviton 5666-C is a 3-wire 2-pole polarized industrial grade straight blade plug rated 250 volt 1-phase, and the Leviton 931-E is a commercial grade 3-wire 2-pole straight blade plug rated 250V AC at 30/50 amp.
7) Is the Eaton AH460P suitable for a hospital patient care area?
The Eaton AH460P is a 60A three-phase industrial pin and sleeve plug intended for industrial, food and beverage, and wastewater treatment applications. For hospital grade cord ends, Bryant offers the 8266T hospital grade plug in NEMA 5-15P, the 8395T angle hospital-grade plug in NEMA 5-20P, and the 8666TSP watertight hospital-grade plug in N6-15P.
8) What is the difference between the Eaton AH460P pin and sleeve plug and a straight blade plug like the Leviton 275-E?
The Eaton AH460P is a pin and sleeve plug with a nylon face/body and nickel plated brass contacts, rated 60A three-phase, three-pole, 4-wire, with an IP69K environmental resistance rating for high-pressure washdown. The Leviton 275-E is a commercial grade 4-wire 3-pole straight blade angle plug, so it mates with blade-type receptacles rather than pin and sleeve receptacles. Both carry four wires and three poles, but the contact geometry is not interchangeable - a pin and sleeve plug only mates with a pin and sleeve connector.
9) Should I use a pin and sleeve plug or a straight blade plug for a 3-phase industrial machine?
Pin and sleeve is the choice where the connection gets unplugged often, sees water, or carries real current. The Eaton 60A pin and sleeve plug uses round pins inside a sealed housing rated IP69K, and it is a male device meant to mate with matching pin and sleeve connectors. Straight blade devices like the Leviton 4-wire 3-pole angle plug are commercial grade and have no washdown sealing behind them. For a dry indoor machine on a cord cap, straight blade is fine. For a washdown floor or an outdoor skid, go pin and sleeve.
10) Do I need anything else besides the Eaton AH460P plug to complete the connection?
The AH460P is the male half only. You still need the mating pin and sleeve connector or receptacle in the same amperage, pole count, and voltage band (red 480V or blue 250V), plus cord with a jacket diameter in the 0.66 to 1.5 inch range and conductors sized within #8-2 AWG.
11) Which nylon-bodied plugs compare to the Eaton AH460P for cord-end use?
The Eaton AH460P uses a nylon face/body with nickel plated brass contacts and accepts cord diameters of 0.66 to 1.5 inch with #8-2 AWG conductors. Among lighter-duty nylon cord ends, the Pass and Seymour PS5266X is a 15A 125V extra-hard use spec-grade plug with a nylon housing and white face, and the PS5965Y is a MaxGrip M3 nylon cord plug in yellow. Those are 125V-class devices, while the Eaton is a 60A three-phase pin and sleeve device.
12) Do I need the Eaton AH460P for a washdown area, or will a watertight blade plug do?
The Eaton AH460P carries an IP69K environmental resistance rating, which covers high-pressure, high-temperature washdown, and uses nickel plated brass contacts for corrosion resistance. If the circuit is a 250V 15A branch rather than 60A three-phase, the Bryant 8666TSP is a watertight hospital-grade plug in the N6-15P configuration.
13) What are the physical dimensions of the Eaton AH460P plug?
It measures 11.5 x 5.125 x 5.125 inches. Worth checking against your cable tray clearance or enclosure door swing before you mount the mating receptacle, because a 60A pin and sleeve body plus the cord bend radius eats more space than a cord cap.
