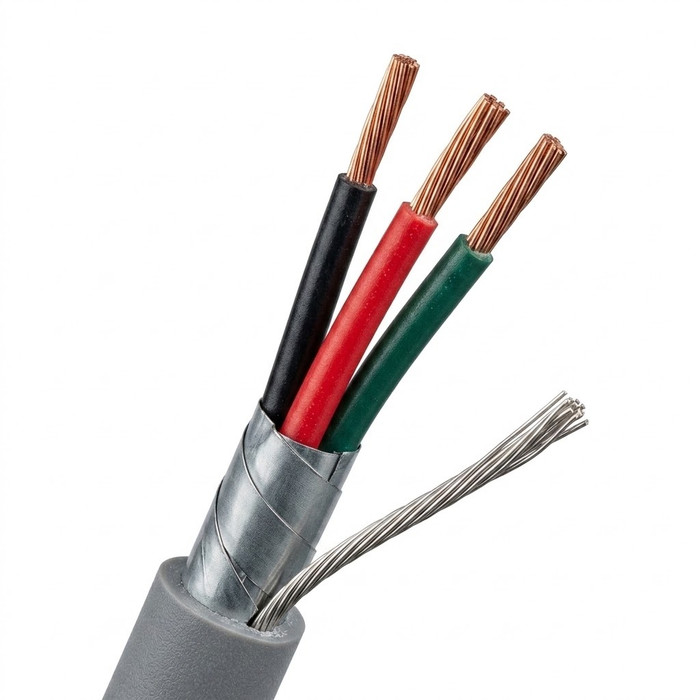

Aiphone 22AWG Shielded Wire, 500' — Extends Product Warranty by One Year
This Aiphone 22AWG shielded wire is supplied in a 500' length of multi-conductor wire with an overall shield, technically matched to the designated Aiphone system's wire specifications for dependable signal integrity. Constructed with PVC insulation and a PVC jacket, this wire carries a (UL) CL3R, FPLR rating and c(UL)us CMR FT-4 listing for commercial installations. It is RoHS III and REACH compliant and Made in USA, and using this Aiphone-specified wire extends the product warranty by one additional year.
Key Features
- Multi-Conductor Shielded Design: Multi-conductor construction with an overall shield helps reduce interference for dependable signal transmission.
- 500' Length, 22AWG Gauge: Supplied in a 500' length with 22AWG conductor sizing to match designated Aiphone system wiring runs.
- System-Matched Specifications: Technically matched to the designated system's wire specifications for optimal compatibility and performance.
- Extended Warranty Coverage: Using this Aiphone wire extends the product warranty by one additional year for added confidence.
- Durable PVC Construction: PVC insulation and a PVC jacket provide reliable protection for the internal conductors.
- Commercial Cable Rating: Rated (UL) CL3R, FPLR, and c(UL)us CMR FT-4 for compliant commercial installations.
- RoHS III and REACH Compliant: Meets RoHS III and REACH compliance standards for environmental responsibility.
- Made in USA: Manufactured in the USA for consistent quality control.
Certifications & Compliance
- UL and c(UL)us Listed
- (UL) CL3R, FPLR, c(UL)us CMR FT-4 Cable Rating
- RoHS III and REACH Compliant
- Extends Product Warranty by One Additional Year
Technical Specifications
- Product Type: Wiring
- Subcategory: Accessories
- Commercial/Residential: Commercial
- Product Group: Parts and Accessories
- Product Subgroup: Parts and Accessories
- Product Category: Door Trim and Accessories
- Department: Door Hardware
- PDF:Technical Sheet: https://zensupply.com/content/pdf/aiphone/technical-sheet-c3aa4c.pdf
- Insulation Material: PVC
- Jacket Material: PVC
- Cable Rating: (UL) CL3R, FPLR, c(UL)us CMR FT-4
- Weight (500' Length): 7.5 lbs
Typical Applications
- Commercial Office Buildings
- Educational Facilities
- Healthcare Institutions
- Retail Establishments
- Multi-Tenant Residential Properties
- Government and Municipal Buildings
- Access Control and Intercom System Installations
Why Aiphone Shielded Wire?
Aiphone wire is built with multi-conductor, overall-shielded construction and PVC insulation and jacketing rated (UL) CL3R, FPLR and c(UL)us CMR FT-4, giving installers a cable technically matched to designated Aiphone system specifications. RoHS III and REACH compliance combined with Made in USA manufacturing supports consistent, professional-grade quality for commercial installations.
Manufacturer Resources
Technical Sheet
Product Specs
- Product Type:
- Wiring
- Subcategory:
- Accessories
- Commercial/Residential:
- Commercial
- Product Group:
- Parts and Accessories
- Product Subgroup:
- Parts and Accessories
- Product Category:
- Door Trim and Accessories
- Department:
- Door Hardware
Aiphone 82220350C – Frequently Asked Questions
1) How many conductors does the Aiphone 82220350C 22AWG shielded wire come in?
The Aiphone 22AWG shielded cable is offered in six conductor counts: 3, 6, 10, 12, 15 and 20 conductor. All of them are 22AWG multi-conductor with an overall shield in a 500 foot spool, so you pick the count off the wiring diagram for the Aiphone system you are running and order that version.
2) Can Aiphone 22AWG shielded wire be run in a riser between floors of a commercial building?
Yes. The cable carries a (UL) CL3R and FPLR rating plus a c(UL)us CMR FT-4 listing, and the R suffix on those ratings is the riser designation, which is what an inspector looks for on a vertical run passing between floors. It is UL and c(UL)us Listed, so it also covers the Canadian side of a cross-border job. It is not a plenum cable, so an air-handling ceiling space needs a plenum-rated type instead.
3) Is this Aiphone shielded wire suitable for access control wiring, not just intercom?
It is built for access control and intercom system installations, and the CL3R rating is the Class 3 remote-control and signalling cable category those systems fall under. Typical jobs are commercial offices, schools, healthcare, retail, multi-tenant residential and government buildings. With counts up to 20 conductors on one spool, a single pull can carry a door strike, request-to-exit, contact and reader run rather than bundling several separate cables.
4) Is Aiphone 22AWG shielded wire rated for outdoor or direct burial use?
No. This is a PVC insulated, PVC jacketed indoor commercial cable, riser rated for interior building runs. For an entry panel at a gate or a run crossing a courtyard, use a cable rated for wet location or direct burial and transition to this wire once you are inside the building.
5) Does Aiphone 22AWG wire meet RoHS and REACH requirements for a government or institutional spec?
RoHS III and REACH compliant, and Made in USA. For federal, municipal and institutional procurement where domestic manufacture and substance compliance both show up in the submittal package, those are stated on the cable itself rather than something you have to chase down.
6) What jacket and insulation material is on Aiphone 22AWG shielded intercom cable?
PVC on both, insulation and jacket. That is a standard indoor commercial jacket, easy to strip and pull, and it is what carries the FT-4 flame test rating on the c(UL)us side. Where the spec calls for a low smoke or halogen free jacket, this is not that cable.
