Aiphone Aiphone 871804P50C - 4-Conductor, 18AWG, Solid, FEP Insulated, Plenum Wire, 500' 871804P50C

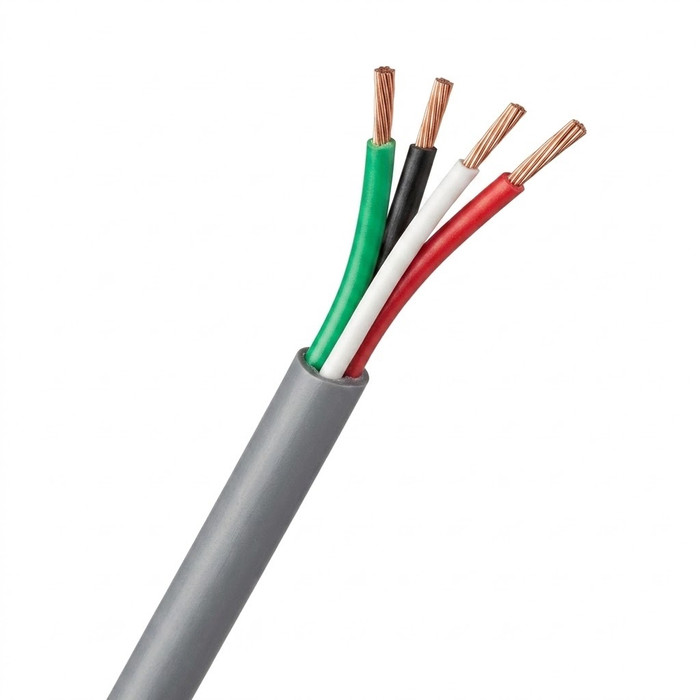

Aiphone 871804P50C - 4-Conductor, 18AWG, Solid, FEP Insulated, Plenum Wire, 500'

(No reviews yet) Write a Review

Model: 871804P50C

In Stock (leaves warehouse same day if ordered before 3pm ET)

$742.00
$536.81
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

FEATURES

  • Plenum rated, Mid capacitance, non-shielded
  • Technically matched to designated system’s wire specifications
  • Extends product warranty by one additional year
  • UL and c(UL)us listed
  • RoHS II and REACH compliant
  • Made in USA

SPECIFICATIONS

  • Insulation Material: Foamed FEP
  • Jacket Material: Plenum rated PVC
  • Cable Rating: (UL) CL3P, FPLP, c(UL)us CMP FT-6
  • Weight: 17 lbs
  • Capacitance: 23.6 pF/ft
  • DC Resistance: 6.8Ω per 1000' at 68°F

Product Specs

Product Type:
Wiring
Subcategory:
Accessories
Commercial/Residential:
Commercial
Product Group:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Aiphone 871804P50C – Frequently Asked Questions

1) Can Aiphone 871804P50C wire be run in an air-handling plenum space above a ceiling?
Yes. The 871804P50C is a plenum rated cable with a plenum rated PVC jacket and foamed FEP insulation, carrying (UL) CL3P and FPLP ratings plus c(UL)us CMP FT-6. Those are the listings inspectors look for when cable runs through a return-air plenum, so it can go in the ceiling space without conduit where the AHJ accepts CMP/CL3P cable.
2) Is this Aiphone 4-conductor 18AWG cable shielded?
No, it is non-shielded, mid capacitance cable. It is built to match the wire specification Aiphone designates for its systems, so for intercom and entry stations where Aiphone calls for non-shielded 18AWG, this is the correct run. If your station documentation calls for shielded cable on that particular run, this is not the part to use.
3) Is this cable suitable for the fire alarm circuit as well as the intercom run?
It carries the FPLP rating in addition to CL3P, so it is listed as power-limited fire protective cable for plenum use alongside its Class 3 listing. Confirm the circuit you are wiring is power-limited; FPLP does not cover non-power-limited fire alarm circuits.
4) Is the Aiphone 871804P50C solid conductor or stranded?
Solid conductor, 18AWG, four conductors. Solid lands cleanly in the screw terminals and punch-downs on Aiphone door stations and master stations, but it does not tolerate repeated flexing, so keep it to fixed in-wall and in-ceiling runs rather than anything that moves.
5) Does Aiphone plenum wire meet RoHS and REACH requirements for a government or healthcare spec?
It is RoHS II and REACH compliant and made in the USA, which covers the two environmental clauses that most commonly appear in institutional and federal cabling submittals. It is a commercial-duty product, listed for commercial use.
