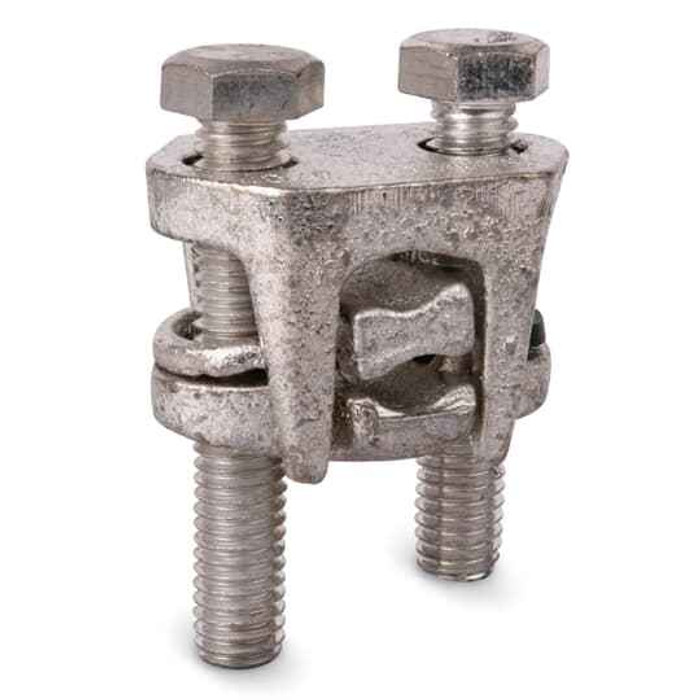

AL 2BLT CONN W/SPCR 1/0-6 12B
Manufacturer Resources
Product Specs
- Country Of Origin:
- India (IN)
- Outside Diameter:
- 1/2 in
- Product Group:
- Wire & Cable Management
- Product Type:
- Two-Bolt Connector
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Type2:
- Mechanical connectors
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Material:
- Aluminum
Blackburn 2B10PW – Frequently Asked Questions
1) What wire size range does the Blackburn 2B10PW two-bolt connector take?
The 2B10PW covers 1/0 through 6 AWG conductors in a single mechanical two-bolt body, so one part handles a service or feeder tap anywhere in that range instead of stocking separate connectors per size. It ships as an individual piece, sold each.
2) Can I use the 2B10PW on copper conductors or is it aluminum only?
The body is aluminum, and aluminum mechanical connectors of this style are the standard choice for aluminum-to-aluminum and, where the connector is marked AL9CU, aluminum-to-copper combinations. Check the marking stamped on the part for the conductor combination it is listed for before making a copper connection.
3) Is the Blackburn 2B10PW a UL listed connector?
Yes. It carries UL file E9809, which is the listing an inspector or an institutional spec will ask for on a mechanical pressure connector. Keep the conductor sizes within the 1/0 to 6 AWG range marked on the connector so the installation stays inside the listing.
4) What does the spacer on the 2B10PW do, and do I have to use it?
The W/SPCR designation means the connector comes with a spacer, which fills the channel when you land a conductor near the small end of the 1/0 to 6 AWG range so the bolts clamp evenly instead of crushing one side of the strand bundle. On larger conductors in the range the spacer is removed. It is included with the connector, so nothing extra to order.
5) Will a 1/2 inch conduit hub or opening clear this connector?
The 2B10PW measures 1/2 inch outside diameter, which is the dimension to work from when you are checking clearance inside a pull box, gutter, or a lug pocket in a panel. Two-bolt bodies need room for a wrench on both bolts, so allow working space beyond the connector diameter itself.
6) Should I use a two-bolt mechanical connector like this or a compression lug?
A two-bolt mechanical connector like the 2B10PW installs with nothing but a wrench, which is why it wins on service work, repairs, and tap connections where you cannot get a hydraulic crimper into the box or you need to open the joint again later. Compression lugs need a die-matched crimp tool and are one-time terminations. If you are terminating in the field across a range of conductor sizes, the mechanical connector is the practical pick.
7) Is the 2B10PW sold in packs or individually?
Individually. The selling unit is each, so order the exact count the job needs rather than a carton quantity. The manufacturer part number to reference is 2B10PW from Blackburn.
8) Where is the Blackburn 2B10PW made? I have country-of-origin reporting to fill out.
Country of origin on the 2B10PW is India. That is the value to put on a government, healthcare, or institutional submittal that asks for origin documentation on electrical materials.
