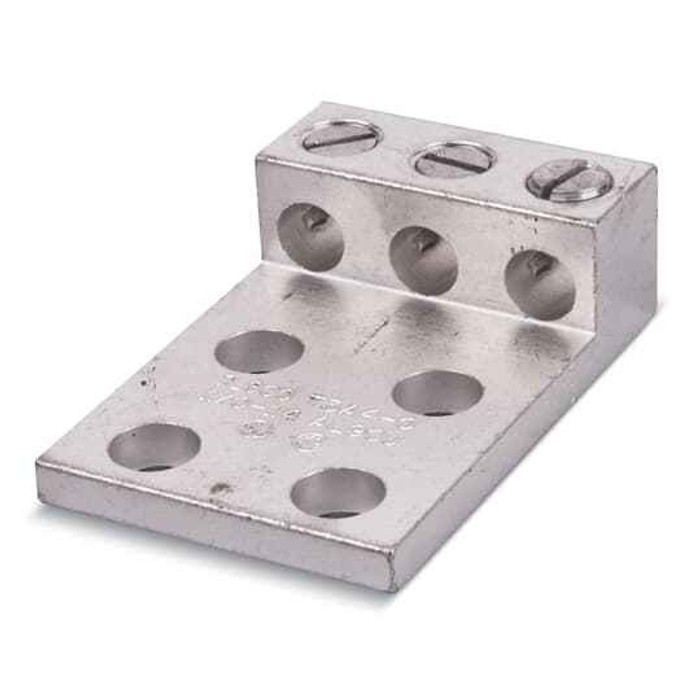

AL 3CNDTR 4HOLE MOUNT 6-350STR
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Number Of Conductors:
- 3
- Product Group:
- Wire & Cable Management
- Product Type:
- Dual-Rated Mechanical Connector
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Surface Finishing:
- Tin-Plated
- Type2:
- Mechanical connectors
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Material:
- Aluminum
Blackburn ADR35-34 – Frequently Asked Questions
1) Can the Blackburn ADR35-34 be used on both aluminum and copper conductors?
Yes. The ADR35-34 is a dual-rated mechanical connector, so it is rated for aluminum or copper conductors in the same body. The aluminum body is tin-plated, which is what allows copper to be terminated without a dissimilar-metal problem at the contact surface.
2) What wire sizes will the Blackburn ADR35-34 take?
Each of the ports accepts stranded conductors from 6 AWG up to 350 kcmil. If your run is smaller than 6 AWG or larger than 350, this is the wrong body and you want a different size in the ADR line.
3) Is the ADR35-34 a panel-mount lug or an in-line splice?
It is a mounting-type lug: the body has a 4-hole mounting pad, so it bolts to a bus bar, enclosure pad, or panel landing rather than floating in-line on the cable. Mounting bolts are supplied by whatever you are landing it on, not by the lug.
4) How many conductors does the ADR35-34 terminate?
Three. It is a 3-conductor mechanical lug, so one body handles a three-wire tap or a three-phase set rather than needing three single-barrel lugs.
5) Is this Blackburn connector UL listed for service and feeder terminations?
The ADR35-34 carries UL file E9809. That is the listing reference to quote on a submittal or to an inspector asking for the connector's UL basis.
6) Does the Blackburn ADR35-34 come as a single piece or in a pack?
Sold each. One ADR35-34 covers three conductors, so a three-phase plus neutral job typically needs more than one body, and quantity should be counted per landing point.
7) What part number do I order for the Blackburn 3-conductor 6-350 four-hole mount lug, and where is it made?
Order Blackburn ADR35-34. The country of origin is Mexico, which is the figure to use on domestic-preference or country-of-origin paperwork for a bid package.
