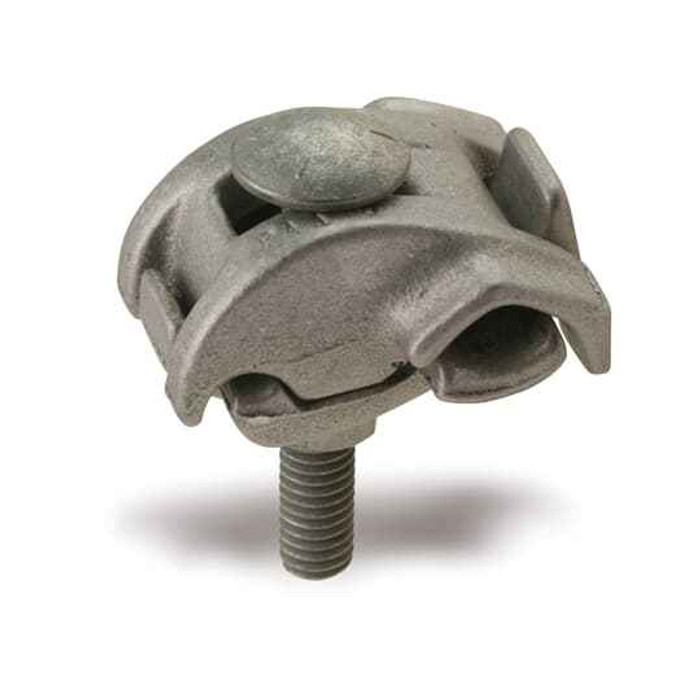

AL PARAGRV CLAMP 1-2BOLT 400-1/0
Manufacturer Resources
Product Specs
- Connection Type:
- Bolted
- Country Of Origin:
- India (IN)
- Insulation Material:
- None
- Number Of Conductors:
- 2
- Product Group:
- Grounding & Bonding
- Product Type:
- Parallel-Groove Clamp
- Selling Unit Of Measure:
- each
- Type2:
- Wire or cable compression splice
- Department:
- Electrical
- Product Subgroup:
- Ground Clamps
- Product Size:
- Bolt Head 3/4 inch, Bolt Size 1/2 inch, Height 3-1/4 X Length 3-3/4 X Width 2-1/2 inch
- Installation Category:
- None
- Product Material:
- Aluminum
Blackburn PAA400 – Frequently Asked Questions
1) Can I use an aluminum parallel groove clamp on copper conductors?
The PAA400 body is aluminum. Aluminum-bodied parallel groove clamps are made for aluminum-to-aluminum connections unless the clamp is specifically marked AL9CU dual rated. Nothing in the PAA400 record states a copper rating, so treat it as an aluminum conductor connector and use a dual rated or tin plated bronze clamp where copper is involved.
2) What size wrench or socket do I need to install the PAA400 clamp?
Two 1/2 inch bolts with 3/4 inch hex heads, so a 3/4 inch socket or wrench does the job. It is a 1-2 bolt parallel groove clamp, bolted rather than compression, so no hydraulic tool or die set is needed to make the connection.
3) How much room do I need in the enclosure or on the pole for this clamp?
Overall size is Height 3-1/4 by Length 3-3/4 by Width 2-1/2 inches. Allow clearance above that for a 3/4 inch socket to swing on the two bolt heads, since both bolts are tightened from the same side of the body.
4) Is a bolted parallel groove clamp or a compression connector better for a large aluminum tap?
A bolted parallel groove clamp like the PAA400 is the choice when you need the connection to be re-openable, when you cannot get a crimp tool to the location, or when conductor sizes in the joint differ. A compression splice is permanent and needs the matching die and hydraulic head, but it gives a sealed, one-piece joint. For utility taps, service laterals, and grounding runs that may be re-terminated later, the bolted clamp is the practical option.
5) What is the exact part number to order for the Blackburn 400-1/0 aluminum parallel groove clamp?
Order Blackburn PAA400. That is the manufacturer part number for the aluminum two-bolt parallel groove clamp covering 400 kcmil to 1/0. Country of origin is India.
6) Does the PAA400 come insulated, or do I need to cover the connection?
It ships bare, with no insulation on the body. Any insulating or re-jacketing of the splice, tape, cold shrink, or a cover, is a separate item you supply. Ordering is by the each, so one clamp per connection point.
