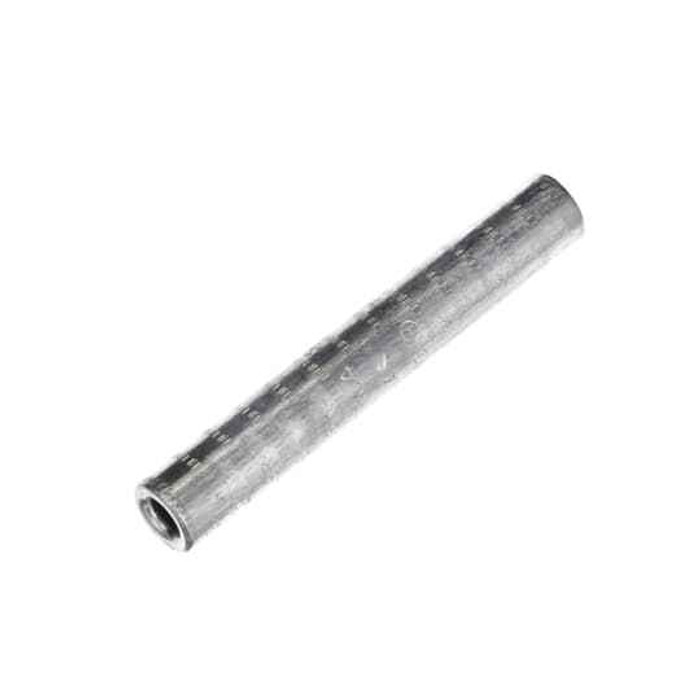

AL SERVENTR COMP SPLICE 2ASCR 4-1/4
Manufacturer Resources
Product Specs
- Connection Type:
- Compression
- Country Of Origin:
- Mexico (MX)
- Insulation Material:
- None
- Number Of Conductors:
- 2
- Product Group:
- Wire Connectors & Terminals
- Product Type:
- Compression Splice
- Selling Unit Of Measure:
- each
- Standards:
- Passes the requirements of ANSI C119.4
- Type2:
- Wire or cable compression splice
- Department:
- Electrical
- Product Subgroup:
- Wire Connectors
- Product Size:
- 4-1/4 inch
- Installation Category:
- None
Blackburn TR64 – Frequently Asked Questions
1) Is the Blackburn TR64 splice a compression connector or a set-screw type?
The TR64 is a compression splice. It is installed with a crimp tool and die, not tightened with a screw or bolt, so once it is crimped the joint is permanent and cannot be taken apart for re-tapping. If your job calls for a re-enterable, torque-tightened connection, a mechanical set-screw or bolted splice is the right family instead.
2) How many conductors does the Blackburn TR64 service entrance splice join?
Two. The TR64 is a two-conductor splice, so it joins one run to one run per barrel. For a three-way or multi-tap connection you need a different connector body, not this one.
3) Does the Blackburn TR64 splice come insulated, or do I need to cover it?
It ships bare, with no insulation on the connector. Plan on your own insulating cover, tape build-up, or heat shrink over the finished crimp if the application needs the joint insulated.
4) Does the Blackburn TR64 splice meet ANSI C119.4?
Yes. The TR64 passes the requirements of ANSI C119.4, the standard covering connectors used between aluminum-to-aluminum, aluminum-to-copper and copper-to-copper conductors. That is the reference an inspector or spec writer on a service entrance job will be looking for.
5) What does the 4-1/4 measurement on the Blackburn TR64 refer to?
4-1/4 inch is the stated product size of the TR64 splice body, which is the overall barrel length you need to allow for inside the enclosure or service entrance raceway. Budget for that length plus your stripped conductor ends when you lay out the splice location.
6) What part number do I give my distributor for the Blackburn aluminum service entrance compression splice, 4-1/4 inch?
Blackburn TR64. That is the manufacturer part number for the two-conductor aluminum service entrance compression splice at the 4-1/4 inch size. It is manufactured in Mexico.
7) Is the Blackburn TR64 sold individually or in a bag of multiples?
Each. The TR64 compression splice is sold as a single piece, so order one per splice point rather than assuming a carton quantity.
