Thomas & Betts W20-1 AL SERVENTR WDGE CLAMP/SLDR 1/0-4

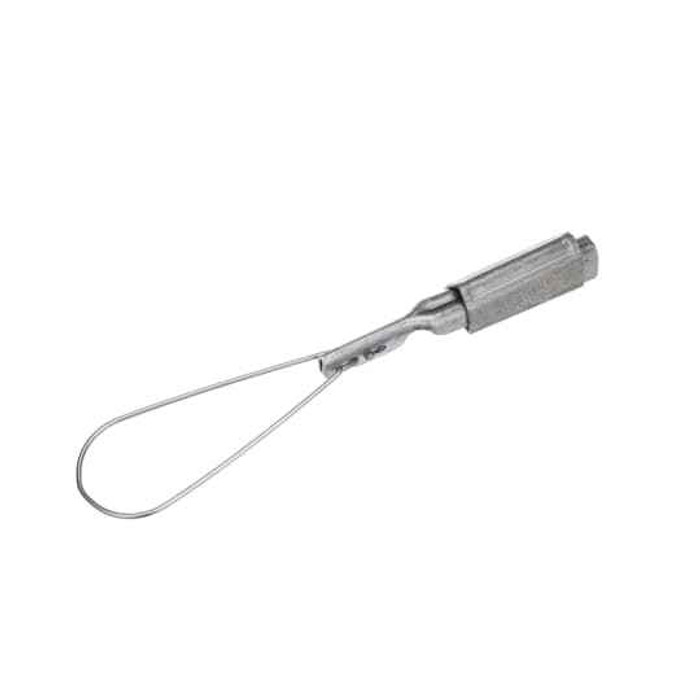

Thomas & Betts Aluminum Service Wedge Clamp 1/0-4 AWG 35kV Tension Connection

(No reviews yet) Write a Review

Model: W20-1
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$66.23
$38.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Thomas & Betts Aluminum Service Wedge Clamp 1/0-4 AWG 35kV Tension Connection

Professional aluminum service entrance wedge clamp for reliable electrical connections

The Thomas & Betts Aluminum Service Wedge Clamp delivers dependable electrical connections for service entrance applications. This professional-grade aluminum clamp accommodates 1/0-4 AWG conductors with a 35kV voltage rating and tension connection design, providing secure mounting and reliable performance for electrical service installations.

Professional Features & Benefits

  • 35kV Voltage Rating: High-voltage capability ensures safe operation in demanding electrical service applications
  • Aluminum Construction: Lightweight yet durable material provides excellent conductivity and corrosion resistance
  • 1/0-4 AWG Conductor Range: Versatile sizing accommodates common service entrance conductor specifications
  • Tension Connection Type: Secure connection method maintains reliable electrical contact under load conditions
  • Bare Surface Finish: Clean aluminum surface optimizes electrical conductivity and connection integrity
  • Single Conductor Design: Focused connection capability for precise electrical installations

Technical Specifications

  • Connection Type: Tension
  • Department: Electrical
  • Idea Granular Category Code Igcc: 4601 >> Cable gland connector
  • Insulation Material: None
  • Material: Aluminum
  • Mounting Type: Yes
  • Number Of Conductors: 1
  • Product Group: Connectors
  • Product Subgroup: Clamps
  • Product Type: Aluminum Service Wedge Clamp
  • Selling Unit Of Measure: each
  • Surface Finishing: Bare
  • Voltage Rating: 35 kV

Professional Applications

  • Service Entrance Connections
  • Utility Distribution Systems
  • Commercial Electrical Installations
  • Industrial Power Distribution
  • High-Voltage Electrical Systems
  • Professional Electrical Contracting

Why Choose Thomas & Betts Quality?

Thomas & Betts aluminum service wedge clamps provide professional-grade reliability with aluminum construction and 35kV voltage rating capability. The tension connection design and bare surface finish ensure optimal electrical performance for demanding service entrance applications.

Manufacturer Resources

Product Specs

Connection Type:
Tension
Idea Granular Category Code Igcc :
4601 >> Cable gland connector
Insulation Material:
None
Number Of Conductors:
1
Product Group:
Connectors
Product Type:
Aluminum Service Wedge Clamp
Selling Unit Of Measure:
each
Surface Finishing:
Bare
Voltage Rating:
35 kV
Department:
Electrical
Product Subgroup:
Clamps
Installation Category:
Yes
Product Material:
Aluminum

Thomas & Betts W20-1 – Frequently Asked Questions

1) What wire sizes does the Thomas & Betts W20-1 wedge clamp take?
The W20-1 aluminum service wedge clamp is built for 1/0 through 4 AWG conductors, one conductor per clamp. If your service drop or entrance conductor falls outside that range, this is the wrong clamp and you want a different wedge size in the series.
2) Can I use an aluminum wedge clamp on copper conductors?
The W20-1 body is aluminum with a bare finish, no plating and no insulation. Aluminum-to-copper contact in an outdoor or damp service location is where galvanic corrosion starts, so for copper runs electricians normally specify a tin-plated or dual-rated connector instead. On aluminum service conductors this clamp is the intended pairing.
3) Is a 35kV connector overkill for a 120/240V service drop?
No. The 35 kV rating on the W20-1 is the insulation class of the system it may be applied on, not a minimum. A connector rated to 35 kV is fine on a 600V or residential service; the rating just means it is also acceptable on medium-voltage distribution work.
4) What does a tension connection mean on a service wedge clamp, and do I need a torque wrench?
Tension type means the wedge is driven into the shell and the conductor is gripped by the mechanical tension of that wedge, rather than by a torqued setscrew or a compression die. That's the appeal on service entrance work: no crimp tool, no torque spec to chase, the grip tightens as the conductor pulls.
5) Does the W20-1 come insulated or do I have to cover the connection myself?
It ships bare. Insulation material is none and the finish is bare aluminum, so any covering the job calls for, tape, a boot, or a shrink sleeve, is a separate line item on your order.
6) Is the W20-1 a splice connector or a tap connector?
It's a service entrance wedge clamp, used to terminate or tap a single conductor at the service point, one conductor to the clamp. It is not a two-run parallel splice and not a compression sleeve for joining two conductors end to end. For joining two cable ends, look at a compression splice sized to the conductor instead.
