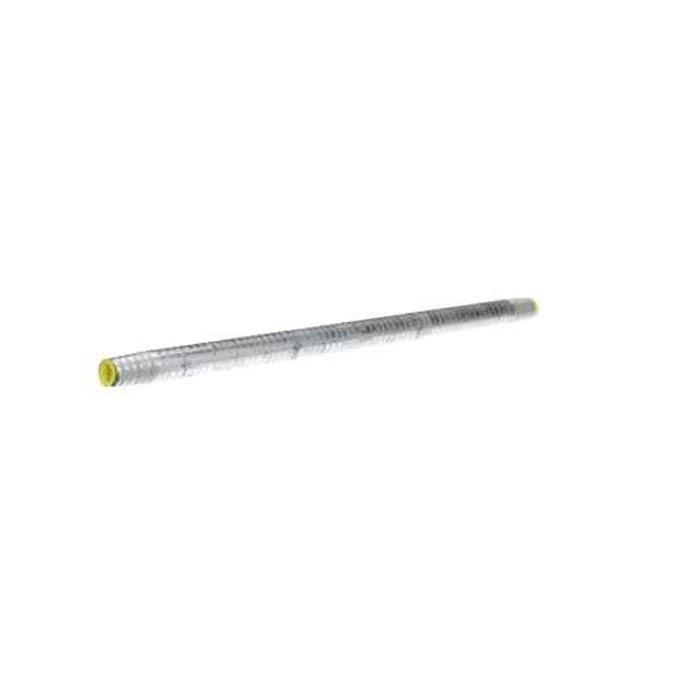

AL TENS DISTR COMP SPLICE 1/0ASCR
Manufacturer Resources
Product Specs
- Connection Type:
- Compression
- Country Of Origin:
- Mexico (MX)
- Insulation Material:
- None
- Number Of Conductors:
- 2
- Product Group:
- Wire & Cable Management
- Product Type:
- Compression Splice
- Selling Unit Of Measure:
- each
- Standards:
- ANSI C119.4
- Type2:
- Wire or cable compression splice
- Department:
- Electrical
- Product Subgroup:
- Splices
- Product Size:
- 15-1/4 inch
- Installation Category:
- None
Blackburn RC10 – Frequently Asked Questions
1) What conductor does the Blackburn RC10 compression splice take?
The RC10 is an aluminum full tension distribution compression splice sized for 1/0 ACSR conductor. It joins two conductor ends, so it takes one 1/0 ACSR run in each end. It is not a reducing or transition connector, both ends are the same size.
2) Is the RC10 splice rated for full tension on an overhead distribution span?
Yes. The RC10 is a full tension distribution splice, meaning it is built to carry the mechanical load of the 1/0 ACSR conductor across the joint rather than just make an electrical connection. That is what lets it be used in a span rather than only in a slack jumper.
3) Does the Blackburn RC10 meet ANSI C119.4 for electrical connectors?
The RC10 compression splice is built to ANSI C119.4, the standard covering connectors for use between aluminum and aluminum or aluminum and copper bare overhead conductors. Utility and municipal specs that call out C119.4 class connectors are satisfied by that designation.
4) Can I use the RC10 to splice a different size conductor than 1/0 ACSR?
No. Full tension compression splices are sized to one conductor, and the RC10 is the 1/0 ACSR size. Using it on a smaller or larger conductor will not develop the rated tension and the crimp dies will not match. Pick the splice that matches the conductor stamped on your reel.
5) How long is the RC10 splice, and will it clear my existing hardware?
The body measures 15-1/4 inches. That is the working length you need clear of dead-ends, taps, and insulators when you position the splice in the span, and it is also the length of conductor you need to strip and clean for the installation.
6) Does the RC10 come insulated, or do I need to cover it?
It is a bare connector with no insulation on the body. For overhead bare conductor work that is normal. If the application calls for covering, the insulating or covering material is a separate item.
7) What tooling does a Blackburn RC10 splice need to install?
It is a compression connector, so it installs with a hydraulic compression tool and the correct die for the connector, not with bolts or set screws. Nothing about it is mechanically reusable once crimped, so figure one splice per joint and order spares for the crew.
8) Is the RC10 sold individually or in a box?
The RC10 is sold each, one splice per unit, so quantity ordered equals splices received. Manufacturer part number is RC10 from Blackburn, made in Mexico.
