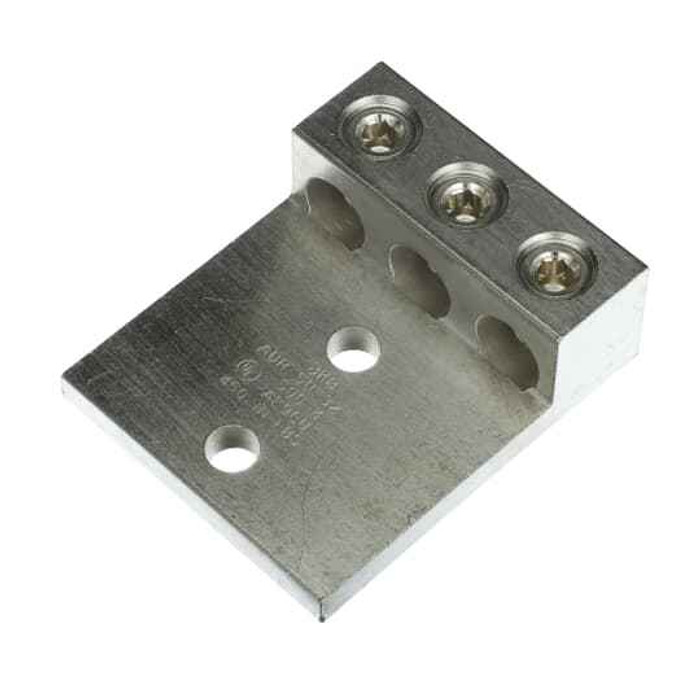

AL TP 3CNDTR 2HOLE MOUNT 4-500STR
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Number Of Conductors:
- 3
- Product Group:
- Wire & Cable Management
- Product Type:
- Dual-Rated Mechanical Connector
- Selling Unit Of Measure:
- each
- Spacing:
- 1/2 in
- Standards:
- UL E9809
- Surface Finishing:
- Tin-Plated
- Type2:
- Mechanical connectors
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Material:
- Aluminum
Blackburn ADR50-32 – Frequently Asked Questions
1) Can the Blackburn ADR50-32 connector be used on copper as well as aluminum conductors?
Yes. The ADR50-32 is a dual-rated mechanical connector, so it accepts both aluminum and copper conductors. The body is aluminum with a tin-plated surface, which is what makes the copper connection acceptable and limits galvanic corrosion where dissimilar metals meet.
2) What wire size range does the Blackburn ADR50-32 take?
It lands stranded conductors from 4 AWG through 500 kcmil, per the 4-500STR rating in the part description. Three conductors can be terminated in the one body.
3) How does the ADR50-32 mount to a panel or bus bar?
It is a two-hole mount connector with 1/2 inch hole spacing, so it bolts flat to a pad, bus, or ground bar drilled on 1/2 inch centers. Two-hole mounting also keeps the connector from rotating under torque when you land heavy feeder conductors.
4) Can I land three separate feeders in one ADR50-32 instead of using three single connectors?
Yes, that is the point of this body. It is a three conductor connector, so three runs anywhere from 4 AWG to 500 kcmil stranded can be terminated on a single two-hole pad. It saves pad space on a crowded ground bar compared with three individual lugs.
5) Is the ADR50-32 sold individually or in a box?
Sold each. One connector body per unit, so order one per termination point rather than in a carton quantity.
6) Is the ADR50-32 suitable for outdoor or damp electrical enclosures?
The aluminum body is tin-plated, a finish specified to slow oxidation on the contact surfaces and allow mixed copper and aluminum terminations. Tin plating is the standard choice for connectors used in wet-location and direct-burial-rated gear, though the enclosure and any required oxide inhibitor still govern the installation.
7) Where is the Blackburn ADR50-32 made?
Manufactured in Mexico. That is the country of origin to cite on submittal packages or procurement documents that require it.
