Alarm Lock 271 Series 18" Armored Door Loop Wire Transfer for Electrified Lock Systems

Alarm Lock 271 Series 18" Armored Door Loop Wire Transfer for Electrified Lock Systems

Professional Wire Transfer Solution for Commercial Electrified Lock Applications

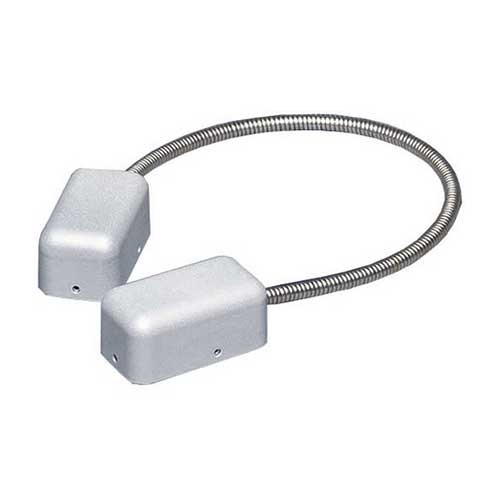

The Alarm Lock 271 Series armored door loop provides a reliable means for bringing electric current from the hinge side of a door frame to the door in electrified lock applications. This 18" flexible armored cable features deep drawn anodized aluminum end brackets designed to conceal wire connections, ensuring professional installation and long-term durability in commercial environments. Specifically engineered for electrified lock compatibility with reliable electrical continuity and signal transfer performance.

Professional Features & Benefits

• 18" Flexible Armored Cable: Provides optimal length and flexibility for standard door applications while maintaining protection for electrical connections.
• Deep Drawn Anodized Aluminum Construction: End brackets conceal wire connections for clean, professional appearance and enhanced corrosion resistance in commercial environments.
• Electrified Lock Compatibility: Specifically designed for use with electrified locks, ensuring proper electrical transfer and system integration with reliable continuity.
• 271 Series Quality: Part of the established 271 Series product line known for consistent performance and reliability in commercial applications.
• Commercial Grade Construction: Built for demanding commercial applications with reliable performance in high-traffic environments and professional installation requirements.
• Electronic Integration Support: Supports electronic door hardware systems with reliable electrical continuity and signal transfer for access control applications.
• Professional Installation Design: Streamlined design facilitates straightforward installation and maintenance procedures in commercial settings with concealed connections.

Technical Specifications

• Commercial/Residential: Commercial
• Department: Door Hardware
• Electronic: Yes
• Product Category: Exit Devices and Trim
• Product Function: Door Cords & Wire Transfers
• Product Group: Exit Devices and Trim
• Product Size: 18"
• Product Subgroup: Exit Control Locks and Alarms
• Product Type: Door Cords & Wire Transfers
• Series: 271 Series
• Subcategory: Parts and Accessories

Installation & Operation

1. Mount the armored door loop brackets in suitable locations on the door frame and door with appropriate clearance for door movement and wire access.
2. Disconnect power supply before beginning electrical connections. Follow all applicable electrical codes and safety procedures.
3. Connect electrical conductors through the armored cable following manufacturer wiring diagrams and installation instructions for proper continuity.
4. Route the 18" flexible armored cable to accommodate door swing while maintaining protection for internal wiring connections and preventing binding.
5. Secure end brackets and verify proper electrical continuity between door frame and door-mounted electrified hardware using appropriate testing equipment.
6. Test door operation and electrical functionality to ensure proper performance of the electrified lock system throughout full range of motion.
7. Complete final inspection and document installation. Refer to manufacturer documentation for complete wiring specifications and troubleshooting procedures.

Professional Applications

• Commercial Building Access Control Systems
• Office Building Security Door Hardware
• Retail Establishment Entry Control
• Educational Facility Door Applications
• Healthcare Facility Access Management
• Multi-Tenant Building Door Systems
• Professional Office Complex Security

Why Choose Alarm Lock Quality?

Alarm Lock delivers professional-grade door hardware solutions engineered for commercial applications. The 271 Series armored door loop combines durable anodized aluminum construction with flexible armored cable design, providing reliable electrical transfer performance for electrified lock systems. Engineered for demanding commercial environments where dependable electrical continuity and professional installation are essential for long-term operation.
