Alarm Lock DL1200 Series Elect...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,166.88
$454.99

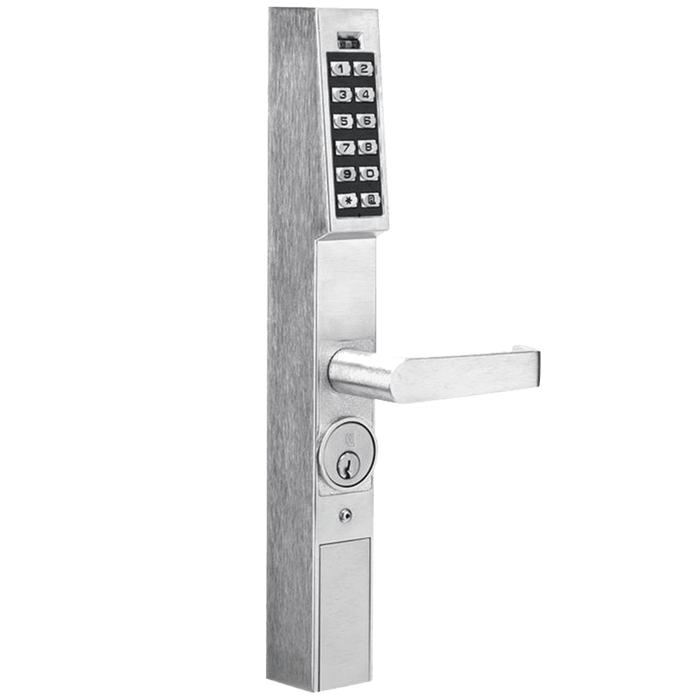

Alarm Lock DL1200 Narrow Stile Electronic Pushbutton Exit Device Trim in Satin Chrome (US26D) — angled view showing keypad, lever handle, and key cylinder

Alarm Lock DL1200 Series Electronic Pushbutton Exit Device Trim with 100 User Codes and Narrow Stile Design

(No reviews yet) Write a Review

Model: DL1200/26D1
From the DL1200 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,166.88
$454.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Alarm Lock DL1200 Series Electronic Pushbutton Exit Device Trim with 100 User Codes and Narrow Stile Design

Professional Keyless Access Solution for Aluminum Glass Doors

Keypad-only aluminum door retrofit outside trim. Works with Adams Rite 4500, 4700 & 4900 series deadlatch and 4070, MS18505 & MS19505 series deadbolts. The Alarm Lock DL1200 Series delivers reliable electronic access control with vandal-resistant 12-button keypad technology for commercial aluminum glass door applications. This narrow stile door trim retrofit solution works seamlessly with Adams Rite 4500, 4700, 4900 series deadlatch and 4070, MS18505, MS19505 series deadbolts. Battery-operated design ensures 100,000 cycles of dependable operation with weatherproof performance from -31°F to +151°F, featuring multiple backset options (31/32", 1-1/8" and 1-1/2") for versatile installation.

Professional Features & Benefits

  • Narrow Stile Compatibility: Specifically designed for narrow stile applications with multiple backset options (31/32", 1-1/8" and 1-1/2") for versatile installation on aluminum glass doors.
  • Heavy-Duty Durability: Battery-operated design provides up to 100,000 cycles of dependable operation for long-term reliability in high-traffic commercial applications.
  • Weatherproof Performance: Operates reliably in extreme temperatures from -31°F to +151°F (-35°C to +66°C) for year-round outdoor performance.
  • Comprehensive User Management: 100 user code capacity supports 3-5 digit PIN codes, master, manager, basic user and one-time user codes for flexible security control.
  • Exit Device Integration: Works seamlessly with Adams Rite series including 1850, 1950, 4710, 4070, 4730, 4900 and MS1850S, MS1950S series latch locks for comprehensive door control.
  • Vandal-Resistant Construction: All-metal 12-button keypad withstands commercial use while maintaining reliable operation in demanding environments.
  • Long-Life Battery Operation: 2 DL123A lithium batteries provide extended operation with low battery alert for proactive maintenance scheduling.
  • Commercial Grade Security: Includes mortise cylinder with key override capability and supports interchangeable cores from major manufacturers for enhanced security management.

Technical Specifications

  • Door Thickness: 1 3/4" only
  • Backset: 31/32", 1 1/8", & 1 1/2"
  • Handing: Non-handed
  • Power: 2 DL123A lithium batteries
  • Keypad: All metal, vandal resistant 12 button keypad supports 3–5 digit PIN codes
  • Cylinder: Supplied with 6 pin mortise standard cylinder SC1 Keyway. Accepts 1 3/8" or 1 1/2" cylinders
  • Cams: Standard cams available for Best, Corbin-Russwin, Medeco, Schlage & Yale

Installation & Operation

  1. Verify electrical requirements and confirm battery compatibility. Ensure 2 DL123A lithium batteries are available before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings including user codes, master codes, and manager codes per application requirements.
  6. Restore power and test all functions including normal operation, keypad functionality, battery operation, and mechanical override features.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Storefronts and Glass Door Entries
  • Retail Establishments and Shopping Centers
  • Office Buildings and Professional Facilities
  • Educational Institutions and Campus Buildings
  • Healthcare Facilities and Medical Offices
  • Multi-Tenant Properties and Managed Buildings
  • Exit Device Integration for Panic Door Applications

Why Choose Alarm Lock Quality?

Alarm Lock DL1200 Series combines proven electronic lock technology with durable construction designed for commercial applications. The weatherproof design rated for -31°F to +151°F and long-life battery operation providing 100,000 cycles ensure reliable performance, while the vandal-resistant all-metal keypad construction provides lasting durability in high-traffic environments. Engineered for demanding commercial applications where dependable keyless access control is essential.

Product Specs

Series:
DL1200 Series
Power:
Battery Operated
Application:
Pushbutton Keypad
Lock Type:
Mortise
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Subcategory:
Mortise Locks
Reader Type:
Keypad
Product Type:
Exit Device Trim
Commercial/Residential:
Commercial
Battery Operated:
Yes
Batteries:
2 DL123A lithium batteries
Stile Type:
Narrow Stile
Audit Trail:
No
User Codes:
100
Electronic:
Yes
Product Attribute:
Electronic Locks
Backset (Distance):
31/32", 1-1/8", 1-1/2"
Product Category:
Electronic Locks
Collection:
DL1200 Series
Department:
Door Hardware

Alarm Lock DL1200/26D1 – Frequently Asked Questions

1) Will the Alarm Lock DL1200 keypad trim work with my Adams Rite deadlatch on an aluminum storefront door?
The DL1200 is built for exactly that retrofit. It works with Adams Rite 4500, 4700 and 4900 series deadlatches, and with 4070, MS18505 and MS19505 series deadbolts. So a typical aluminum glass entry running a 4510 or 4710 deadlatch takes the DL1200 as the outside keypad trim without changing the latch in the door. Two things still have to line up: the door has to be 1-3/4 inches thick, and you have to order the backset that matches the latch already in the stile (31/32, 1-1/8 or 1-1/2 inch).
2) Does the DL1200 come with the latch, or do I need to keep the lock that is in the door?
Outside trim only. The DL1200 is a keypad retrofit for the exterior face of a narrow stile aluminum door, and it operates the Adams Rite deadlatch or deadbolt that is already in the stile. Keep the existing 4500, 4700 or 4900 series deadlatch, or the 4070, MS18505 or MS19505 deadbolt, and the trim does the access control side. What does ship with it is the cylinder for key override, a 6 pin mortise cylinder in SC1 keyway. If the latch in your door is worn out or is not one of those Adams Rite families, order the latch separately as part of the job.
3) Which backset do I order for the Alarm Lock DL1200, and how do I know which one I have?
Three backsets are offered on the DL1200: 31/32 inch, 1-1/8 inch and 1-1/2 inch. Backset here is the distance from the edge of the door to the centerline of the cylinder, and on narrow stile aluminum doors it is set by the deadlatch already installed, not by preference. Pull the existing cylinder or the latch faceplate and measure it before ordering. 31/32 inch is the common Adams Rite narrow stile dimension, so that is the one most storefront retrofits take, but the 1-1/8 and 1-1/2 inch versions exist because plenty of doors are not. Get this wrong and the trim will not line up with the latch, no matter that everything else fits.
4) Will the DL1200 fit a 1-3/8 inch door or a thicker wood door?
No. The DL1200 is a single thickness device, 1-3/4 inches only, and it is cut for narrow stile aluminum doors. A 1-3/8 inch door, or anything thicker than 1-3/4, is outside what it mounts on. It is also not the part for a standard wood or hollow metal opening with a 2-3/4 inch backset bored lock prep, since the backsets offered are 31/32, 1-1/8 and 1-1/2 inch. For those doors you want a cylindrical or mortise electronic lockset rather than narrow stile trim.
5) Can I key the DL1200 to my existing master key system, and what cylinder does it take?
It ships with a 6 pin mortise cylinder in SC1 keyway, and it accepts 1-3/8 inch or 1-1/2 inch mortise cylinders, so you can swap in your own. Standard cams are available for Best, Corbin-Russwin, Medeco, Schlage and Yale, and it supports interchangeable cores from major manufacturers. That covers most locksmiths coming in with an existing system: pull the supplied SC1 cylinder, drop in a cylinder on your keyway with the matching cam, and the key override runs on the building's master. Order the cylinder in the correct length for the door, 1-3/8 or 1-1/2 inch.
6) Do I have to run power or wiring to the door for the Alarm Lock DL1200?
No wiring. The DL1200 runs on 2 DL123A lithium batteries mounted in the trim itself, rated for up to 100,000 cycles, with a low battery alert before they go. That is the reason this one gets specified on storefront retrofits: no power transfer hinge, no door loop, no transformer, no trenching a raceway to an aluminum door that was never prepped for it. Budget for a set of DL123A cells on the shelf and the maintenance story is a battery change, not an electrician.
7) Can I put a keypad lock on an exterior storefront door that sees freezing winters and full afternoon sun?
The DL1200 is rated to operate from -31F to +151F (-35C to +66C), which covers northern winters and a south facing glass entry in summer. The keypad is all metal and vandal resistant, 12 button, so it stands up to an exposed exterior face better than a plastic pad. Worth knowing on battery powered hardware specifically: cold is where cheap keypads quit, and that rated low end is the number to check against your climate.
8) How many people can I give codes to on the DL1200, and can I delete one tenant without recoding everyone?
100 user codes, each 3 to 5 digits, programmed at the keypad. The code set is tiered: master, manager, basic user and one time user codes. So a property manager can hand every tenant or crew their own code, pull a single code when someone leaves, and never touch the other 99. One time codes are the answer for a contractor or a delivery that needs access once. Programming is done at the door, not from software.
9) Does the DL1200 keep a log of who came through the door?
It does not. The DL1200 has no audit trail, and the keypad is the only credential it reads, so there are no cards or fobs either. For most storefronts and small multi tenant buildings that is fine, the value is keyless entry with codes you control. If your facility needs event logs for compliance or an incident review, or needs prox and card credentials, you want a Trilogy model with audit trail and a reader rather than this keypad only trim.
10) Do I need to specify handing for the Alarm Lock DL1200 narrow stile trim?
Handing is not a factor. The DL1200 is non-handed, so the same part goes on a left hand or right hand door and you can stock one unit for a building where the entries swing both ways. The two things you do specify are backset (31/32, 1-1/8 or 1-1/2 inch, matched to the latch in the stile) and finish.
11) What finishes does the Alarm Lock DL1200 come in for matching the rest of my storefront hardware?
Two finishes: US26D satin chrome and US10B oil rubbed bronze. US26D is the one that blends with the clear or brushed aluminum and satin chrome pulls on most commercial glass entries, and US10B is the match for dark bronze anodized storefront framing, which is the other common look. If you are standardizing several openings in one building, pick one and order it across all of them, since the trim is the piece people put their hands on and a mismatched face is obvious.
12) Is a pushbutton lock like the DL1200 rated for a busy commercial entrance, or is it a light duty product?
Commercial duty. Battery operation is rated at up to 100,000 cycles and the keypad is all metal and vandal resistant rather than a plastic membrane, which is what separates this from residential keypad hardware on a high traffic door. Where it lands well is retail and office storefronts, schools, medical offices and multi tenant entries running Adams Rite narrow stile latches. What it does not include is any monitoring or event logging, so on a door that needs to report activity, plan for a different device.
