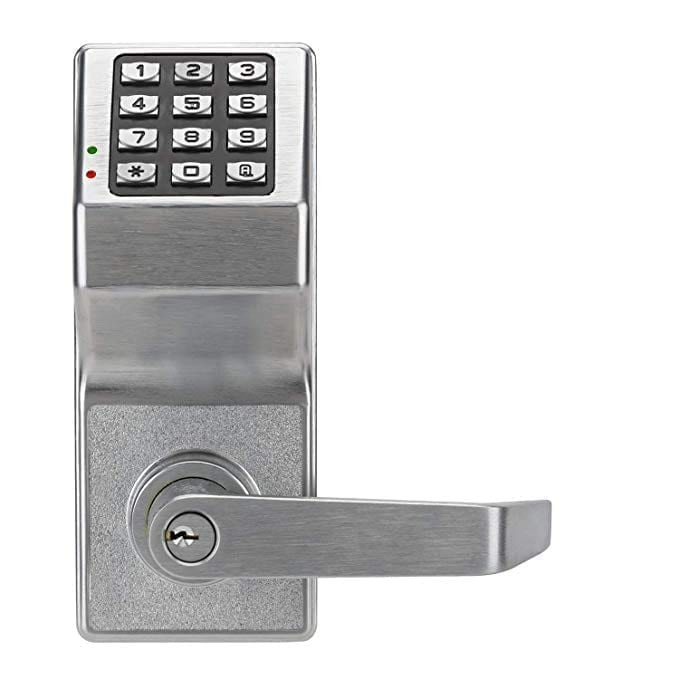

Alarm Lock Trilogy DL2700 Grade 1 standalone electronic cylindrical lock, digital keypad, straight return lever, conventional cylinder key override, satin chrome US26D finish

Alarm Lock Trilogy T2 DL2700 / DL2775 Grade 1 Standalone Electronic Cylindrical Entrance Lock - Digital Keypad, 100 User Codes, IC/SFIC Compatible

(15 reviews) Write a Review

Model: DL2700 US26D
From the DL2700 Series Collection
$1,043.29
$329.95
Selected Finish is
Selected Lever is
Selected Cylinder is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,043.29
$329.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Alarm Lock Trilogy T2 DL2700 Series Grade 1 Electronic Cylindrical Lock

Grade 1 standalone electronic cylindrical lock for commercial and institutional applications including schools, healthcare facilities, offices, and retail environments. Part of the Trilogy T2 series, the DL2700 operates independently without network connectivity or external power. A heavy-duty clutch mechanism and all-metal keypad construction support up to 200,000 operational cycles on 5 AA batteries. Weatherproof versions are available for exterior applications.

Key Features

  • Grade 1 Commercial Rating: Heavy-duty clutch mechanism prevents wear in high-traffic environments.
  • 100 User Codes: Supports 100 user codes plus service and master codes, all programmable directly at the keypad without external hardware or software.
  • Battery Operated: 5 AA alkaline batteries (included) with low-battery LED and audible alerts.
  • UL Fire Rated: 3-hour fire rating with reversible deadlocking latch.
  • Non-Handed: Installs on doors of either hand without modification.
  • Weatherproof Option: Weather-resistant versions available for exterior and exposed applications.
  • IC/SFIC/LFIC Compatible: Available with SFIC prep (less core) or LFIC prep for Schlage, Corbin Russwin, Sargent, Medeco, and Yale cylinders.
  • ADA Compliant Levers: Available in standard straight return (00) and Regal curved (75) lever styles, both ADA compliant.
  • 2-Year Limited Warranty: Covers defects in materials and workmanship.

Technical Specifications

  • Door Thickness: 1-5/8" to 1-7/8"
  • Backset: 2-3/4"
  • Strike: T-Standard and ASA (included)
  • Latchbolt: Reversible, UL fire rated 3 hours
  • Handing: Non-handed
  • Power: 5 AA alkaline batteries (included)
  • Keypad: All-metal, 12-button; all functions programmable at keypad
  • User Codes: 100
  • Grade: BHMA Grade 1
  • Cylinder (standard): Conventional cylinder with key override
  • IC Options: SFIC prep (less core); LFIC prep for Schlage FSIC, Corbin Russwin 6-pin, Sargent, Medeco, and Yale 6-pin
  • Finishes: US10B (Oil Rubbed Bronze), US19 (Flat Black), US26D (Satin Chrome)

Typical Applications

  • Commercial office buildings
  • Educational facilities
  • Healthcare institutions
  • Government and municipal buildings
  • Industrial and warehouse facilities
  • Multi-tenant residential properties
  • Exterior doors requiring weatherproof access control

Product Specs

Series:
DL2700 Series
Grade:
Grade 1
Standard Cylinder:
Conventional Cylinder (standard); IC/LFIC prep less core (IC variants)
Power:
Battery Operated
Warranty:
2 Year Limited
Application:
Digital Keypad / Pushbutton
Lock Type:
Cylindrical
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Subcategory:
Cylindrical Locks
Reader Type:
Keypad
Commercial/Residential:
Commercial
Product Type:
Cylindrical Locks
Batteries:
AA (5)
Battery Operated:
Yes
Audit Trail:
No
User Codes:
100
Weather Proof:
Optional
Electronic:
Yes
Product Attribute:
Electronic Locks
Product Model:
DL2700
Door Thickness Range:
1-5/8" to 1-7/8"
Door Strike:
T-Standard and ASA
Product Category:
Electronic Locks
Backset (Distance):
2-3/4"
Collection:
DL2700 Series
Department:
Door Hardware

Alarm Lock DL2700 US26D – Frequently Asked Questions

1) Will the Alarm Lock DL2700 keypad lock fit a 1-3/4 inch commercial door?
A 1-3/4 inch door sits right in the middle of the range: the DL2700 covers 1-5/8 to 1-7/8 inch doors. The window is narrow at both ends, so a 1-3/8 inch interior door is out and so is anything thicker than 1-7/8. If you're working on 1-3/8 inch doors, the Lockey E985 and E995 electronic keypad lever locks cover 1 3/8 to 1 3/4 inches. For doors up to 2-1/8 inches, the SDC E75 battery-powered keypad lockset covers 1-3/4 to 2-1/8, and the TownSteel XCE-2000 keypad lockset covers 1-3/4 to 2 inches.
2) What backset does the Alarm Lock DL2700 need, and will it drop into a door already bored at 2-3/8 inches?
The DL2700 is a 2-3/4 inch backset lock. A door prepped at 2-3/8 inches, the other standard cylindrical backset, will not take it without relocating the cross-bore, so check the existing prep before you order. On the frame side you're covered either way: both a T-standard strike and an ASA strike come with the lock.
3) Is the Alarm Lock DL2700 handed? I'm doing a building with left and right hand doors.
Non-handed. One part number covers both hands, and the latchbolt is reversible, so you're not tracking LH and RH on the order or holding two versions in the truck. That is the practical reason it works well for a property manager standardizing across a mixed set of openings: the only choices you actually make are lever style, finish, and cylinder prep.
4) Can the Alarm Lock DL2700 go on a fire rated door?
Yes. The DL2700 latch carries a 3 hour UL fire rating, with a 1/2 inch throw reversible deadlocking latchbolt. The deadlocking feature is what keeps the latch from being shimmed once the door is closed, and it is why the lock is used on rated corridor and stairwell openings in schools and healthcare buildings.
5) Can the Alarm Lock DL2700 be keyed into my existing SFIC or Schlage master key system?
Yes, and you pick the prep when you order. Seven cylinder options: SFIC prep (IC), Schlage FSIC prep (IC-S), Corbin Russwin 6-pin LFIC (IC-C), Sargent LFIC (IC-R), Medeco LFIC (IC-M), Yale 6-pin LFIC (IC-Y), or the Standard version with a conventional cylinder and key override. Every IC and LFIC prep ships less core, so the core comes out of your own system and the lock lands on your existing keying with no re-pinning of the building. If there's no interchangeable core system in place, take the Standard.
6) Do I need software, wiring, or a network to run the Alarm Lock DL2700?
None of the three. The DL2700 is standalone: 100 user codes plus master and service codes, all programmed at the 12-button all-metal keypad with nothing plugged into it. Power is 5 AA alkaline batteries, included, with a low-battery LED and audible alert. No panel, no reader wiring, no door cord. For a property manager handing out codes to tenants or trades, that means adding and deleting a code is done at the door in a minute.
7) Is there a weatherproof version of the Alarm Lock DL2700 for an exterior door?
Yes, weather resistance is one of the ordering options: non-weatherproof or weatherproof. Pick the weatherproof build for anything exposed to driving rain, wind, or temperature swing, such as a rear service door, a yard gate house, or an unconditioned stair tower. It's a build option and not a field kit you add later, so specify it when you place the order.
8) What are the closest alternatives to the Alarm Lock Trilogy DL2700 electronic cylindrical lock?
The Trilogy T2 DL2700 is a Grade 1 cylindrical lock with an all-metal keypad, 100 user codes, and 5 AA batteries, programmed entirely at the keypad. The nearest peers are other standalone battery keypad cylindricals: the Accentra nexTouch NTB613, a Grade 1 cylindrical keypad lock with pushbutton entry; the BEST 9KZ EZ Series electronic keypad cylindrical lock with key override function; the SDC E75 Series battery-powered electronic cylindrical lockset with keypad access control; and the TownSteel XCE-2000, a Grade 1 electronic cylindrical lockset with keypad in classroom function. Confirm door thickness before swapping: the DL2700 covers 1-5/8 in. to 1-7/8 in.
9) The door is 2 inches thick. What keypad cylindrical lock fits when the Alarm Lock DL2700 does not?
The Trilogy T2 DL2700 is built for doors 1-5/8 in. to 1-7/8 in. thick. For a 2 in. door, the SDC E75 Series battery-powered keypad cylindrical lockset covers 1-3/4 in. to 2-1/8 in., and the TownSteel XCE-2000 keypad cylindrical covers 1-3/4 in. to 2 in. The Schlage NDEB, a Grade 1 ENGAGE Series cylindrical lock, covers 1-5/8 in. to 2 in., though it reads 2.4 GHz Bluetooth Low Energy credentials rather than keypad codes. Measure at the lock prep, not the door edge trim, since these ranges differ by only a quarter inch at the top end.
10) Which keyless lock should I use on a 1-3/8 inch door instead of the Alarm Lock DL2700?
The Trilogy T2 DL2700 starts at 1-5/8 in. door thickness. On a 1-3/8 in. door, the Lockey E985 and Lockey E995 electronic keypad lever locks fit doors 1-3/8 in. to 1-3/4 in., the E985 with remote control and key override and the E995 with remote control and battery power. The Kwikset 912TNL SmartCode with Z-Wave fits 1-3/8 in. to 2 in. in a keyed-one-side function. If the opening does not need electronics, the Lockey 2830 mechanical pushbutton keyless knob lock covers 1-1/8 in. to 2 in.
11) Is the SDC Electra 7200 a substitute for the Alarm Lock DL2700?
They install in a similar cylindrical prep but they are not interchangeable in how they get power. The SDC Electra 7200 Series is a solenoid controlled cylindrical lock running dual voltage 12/24VDC, so it needs a power supply and wiring run to the opening and an access control device to release it. The Trilogy T2 DL2700 runs on 5 AA alkaline batteries with credentials entered at its own keypad, no external power or network connection. The 7200 also fits doors 1-3/4 in. to 2 in., against 1-5/8 in. to 1-7/8 in. for the DL2700.
12) What comes with the Alarm Lock DL2700 and what do I still have to order separately?
In the box: the lock, both strikes (T-standard and ASA), and the 5 AA batteries. If you order any of the IC or LFIC cylinder preps, they ship less core, so the core is the one thing you supply, either from your existing system or ordered alongside. The Standard version already has a conventional cylinder with key override, so nothing is missing there. Levers are included with whichever style you specify, 00 straight return or 75 Regal curved.
13) Does the Alarm Lock DL2700 log who went through the door?
No. The DL2700 stores codes, it does not keep an event record, so if the requirement is knowing who opened a door and when, this is the wrong lock to specify. Locks built around phone-based management are the direction to look: the Schlage NDEB is a Grade 1 ENGAGE Series cylindrical lock with a 2.4 GHz Bluetooth Low Energy reader and mobile-enabled multi-function operation, and the CENTRIOS CEB100 is a Grade 1 smart Bluetooth cylindrical lock. The DL2700 is the right answer when you want 100 separate codes managed at the door and nothing to administer.
14) Does the Alarm Lock DL2700 need to be tied into an access control panel or door power?
Not at all, and that is usually the reason it gets picked. It runs entirely off 5 AA alkaline batteries with no wiring to the door, so there's no power transfer hinge, no door loop, no conduit, and no electrician on the job. Alarm Lock rates the clutch and keypad for up to 200,000 cycles on a set. If you actually do want the lock controlled from a panel or released by an access system, that's a different animal: the SDC Electra 7200 Series is a solenoid controlled cylindrical lock running on 12/24VDC.
15) Is the Alarm Lock DL2700 a classroom intruder lock a teacher can lock down from inside the room?
No. The DL2700 is a keypad entry lock: enter a code at the keypad, or use the key override on the cylinder. Inside-the-room lockdown is a specific classroom intruder function and it is a different lock. TownSteel's XCE-9000 Series is an electronic classroom intruder cylindrical lockset with keypad, and the FCE-4000 Series is the RFID electronic intruder classroom version. Both are Grade 1 and both are built for 1-3/4 inch doors, with the XCE-9000 covering 1-3/4 to 2 inches.
16) I want keyless entry on a storage room but I don't want to change batteries. What should I use instead of an Alarm Lock DL2700?
Go mechanical. The DL2700 runs on 5 AA batteries, which is fine on a door you visit regularly but a nuisance on a remote or rarely-used opening. Lockey's 2830 is a mechanical pushbutton keyless knob lock with auto-locking passage function, and the Lockey 1600 is a heavy duty mechanical keyless knob lock with an adjustable backset. Both cover 1-1/8 to 2 inch doors, a far wider range than the DL2700's 1-5/8 to 1-7/8. The trade you make is administration: the DL2700 gives you 100 separate user codes you can add and delete per person, which a mechanical pushbutton lock does not.
17) Is the Alarm Lock DL2700 heavy duty enough for a high traffic entrance?
It's BHMA Grade 1, the commercial heavy duty tier, built around a clutch mechanism that lets the outside lever spin free when the door is locked so forcing the lever doesn't wear the chassis. Rated up to 200,000 cycles on a battery-powered platform. Grade 1 is what an institutional spec typically calls for on entrances, stair doors, and anything a hundred people touch a day, and it is the same grade as the Schlage CO-100 and TownSteel XCE-2000 electronic cylindrical locks.
18) We want cards or phones instead of PIN codes. What replaces the Alarm Lock DL2700?
The Trilogy T2 DL2700 is a keypad reader, with all 100 user codes programmed at the keypad without software or a network connection. For credential-based openings, the TownSteel FCE-2000 Series is a Grade 1 standalone motorized cylindrical lockset with RFID, and the FCE-4000 Series is an RFID electronic intruder classroom cylindrical lockset, both on 1-3/4 in. doors. The Schlage NDEB is a Grade 1 ENGAGE Series cylindrical lock with a 2.4 GHz Bluetooth Low Energy mobile-enabled reader for doors 1-5/8 in. to 2 in., and the CENTRIOS CEB100 is a Grade 1 smart Bluetooth cylindrical lock.
19) Is the Schlage CO-100 keypad lock the same thing as the Alarm Lock DL2700?
Both are standalone electronic cylindrical keypad locks, but the function differs. The Schlage CO-100-CY-40-KP is catalogued in privacy function on doors 1-3/4 in. thick, Grade 1 heavy duty, with keypad and cylinder options. The Trilogy T2 DL2700 is a Grade 1 keypad lock holding 100 user codes plus service and master codes, with a conventional key override cylinder standard and a 1/2 in. throw reversible deadlocking latch, on doors 1-5/8 in. to 1-7/8 in. The CENTRIOS CEB100 is likewise a Grade 1 smart Bluetooth cylindrical in privacy function. Match the function to the opening before you match the credential.
20) The classroom doors have to lock down from inside. Which lock covers that, and how does the Alarm Lock DL2700 compare?
For classroom intruder openings, the TownSteel XCE-9000 Series is an electronic classroom intruder cylindrical lockset with keypad, Grade 1, for doors 1-3/4 in. to 2 in., and the FCE-4000 Series is the RFID electronic intruder classroom version on 1-3/4 in. doors. The Schlage XE360M is a Grade 1 wireless tubular lock in classroom/storeroom function with offline push button operation. The Trilogy T2 DL2700 covers the general commercial and institutional opening: Grade 1, 100 user codes, non-handed, UL fire rated 3 hours, on doors 1-5/8 in. to 1-7/8 in.
21) Is the Schlage XE360M a drop-in for the Alarm Lock DL2700 door prep?
No, the door prep is different. The Schlage XE360M is a Grade 1 wireless tubular lock with offline push button function and a smart mobile reader, for 1-3/4 in. doors. The Trilogy T2 DL2700 is a cylindrical lock with a 2-3/4 in. backset and T-Standard and ASA strikes included. A cylindrical chassis and a tubular chassis take different cross-bores and edge prep, so treat this as a re-prep or a new door, not a trim swap. For a cylindrical prep with an offline pushbutton, the TownSteel XCE-2000 keypad cylindrical is the closer match.
22) We key everything on small format interchangeable cores. What are the mechanical options next to the Alarm Lock DL2700 IC versions?
The Trilogy T2 DL2700 is ordered with SFIC prep less core, or LFIC prep less core for Schlage FSIC, Corbin Russwin 6-pin, Sargent, Medeco, and Yale 6-pin, so the core drops into the existing key system. If a given opening does not need a keypad, the Marks USA 175RF is a small format IC storeroom clutched lever lockset, less core, 2-3/4 in. backset, ANSI strike, Grade 2, and the Marks USA 195RAB is a Grade 1 Survivor Series entry clutched lever, less core, with the American lever. Both take the same cores you are already stocking.
23) What is a simpler keyless lock than the Alarm Lock DL2700 for a door where nobody wants to change batteries?
The Trilogy T2 DL2700 runs on 5 AA alkaline batteries with a low-battery LED and audible alert. For an opening where battery service is a problem, the Lockey 2830 is a mechanical pushbutton keyless knob lock with auto-locking passage function for doors 1-1/8 in. to 2 in., and the Lockey 1600 is a heavy duty mechanical keyless knob lock with adjustable backset over the same 1-1/8 in. to 2 in. range. Both are knob trim rather than the ADA lever the DL2700 carries in straight return and Regal curved styles, so check barrier-free requirements for the opening.
24) If we do not need user codes on every door, what Grade 1 keyed lever goes with the Alarm Lock DL2700 on the rest of the openings?
The Trilogy T2 DL2700 is a Grade 1 keypad lock with 100 user codes for the doors that need code access. For the keyed-only doors in the same building, the Dorma C853 is an entry keyed single cylinder lever lockset, Grade 1, for doors 1-3/8 in. to 2-1/4 in.; the Dorma C150 is a Grade 1 heavy duty cylindrical lock in entry/office function over the same 1-3/8 in. to 2-1/4 in. range; and the Marks USA 195RAB is a Grade 1 Survivor Series entry clutched lever, less core. All three carry the same Grade 1 rating as the DL2700.
25) The door is bored for a 2-3/8 inch backset. Does the Alarm Lock DL2700 work, and what does?
The Trilogy T2 DL2700 is specified at a 2-3/4 in. backset with T-Standard and ASA strikes included, so a 2-3/8 in. bore is the wrong prep for it. The Lockey 1600 heavy duty mechanical keyless knob lock has an adjustable backset and covers doors 1-1/8 in. to 2 in. The Marks USA 110AB entry knob lockset is a Grade 2 round knob on a 2-3/8 in. backset in satin stainless steel. If you are staying at 2-3/4 in., the Marks USA 175RF SFIC storeroom lever and the Stanley QCL150 entry lever both use a 2-3/4 in. backset latch.
26) Which lever should I specify on the Alarm Lock DL2700, and do they meet ADA?
Two lever styles: 00, the standard straight return, and 75, the Regal curved lever. Both are ADA compliant, so the choice is aesthetic rather than code driven. Straight return is the plainer institutional look and matches most existing commercial lever hardware; Regal is the curved profile for a lobby or a front-of-house opening. The lever is a build option, so it is decided on the order, not swapped in the field.
27) What finishes does the Alarm Lock DL2700 come in for matching the rest of a building's hardware?
Three: US26D satin chrome, US10B oil rubbed bronze, and US19 flat black. US26D is the one that matches most existing commercial lever hardware and institutional openings, so it's the usual pick when a keypad lock is going onto one door in a corridor full of mechanical levers. US10B and US19 are for residential-facing or darker-trimmed openings, common in multi-tenant lobbies and hospitality.
28) Are passage and dummy levers an alternative to the Alarm Lock DL2700 for keyless entry?
They are keyless, but they do not control access. The Dorma C501 is a single dummy trim keyless lever lockset, Grade 2, for doors 1-3/8 in. to 1-3/4 in.; the Dorma CL701 is a Grade 2 single dummy non-keyed lever; the Orca OCL2170 is a Grade 2 half dummy lever; and the Marks USA 195N is a Grade 1 passage lever in the Survivor Series with an ADA compliant American lever. None of them latch against a credential. The Trilogy T2 DL2700 secures the opening with 100 user codes plus service and master codes and a key override cylinder.
How fast can I get the Alarm Lock DL2700 US26D delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Alarm Lock DL2700 US26D come with a warranty?
Absolutely. The Alarm Lock DL2700 US26D is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Alarm Lock DL2700 US26D?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Alarm Lock DL2700 US26D from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
