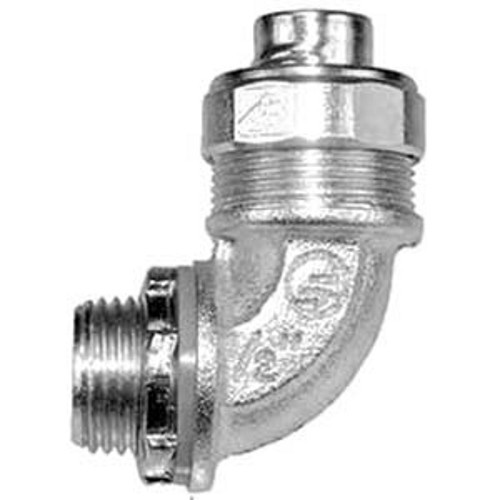

American Fittings 90° Liquidtight Steel Connector

American Fittings 90° Liquidtight Steel Connector

(No reviews yet) Write a Review

Model: STR5090

In Stock (leaves warehouse same day if ordered before 3pm ET)

$7.88
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

American Fittings STR-90 90° Liquidtight Steel Connector

American Fittings 90° liquidtight steel connectors provide a secure angled transition for liquidtight flexible conduit installations, available in trade sizes from 1/2" through 2" (1/2", 3/4", 1", 1-1/4", 1-1/2", and 2") to fit a wide range of conduit runs. Manufactured in the USA and listed to UL 514B, 467, this connector line meets NEMA FB 1 standards and Federal Spec No A-A-50553, making it a dependable choice for commercial, industrial, and government-spec electrical installations that call for angled liquidtight conduit terminations where a straight-line connector will not fit.

Key Features

  • Trade Size Range: available in 1/2" through 2" sizes to match liquidtight flexible conduit runs of varying diameter.
  • 90° Angle Body: routes conduit around obstructions and into tight enclosures where a straight connector cannot be used.
  • Liquidtight Design: steel construction built for use with liquidtight flexible conduit to help protect conductors from moisture, oil, and coolant in demanding environments.
  • Made in USA: manufactured domestically and Buy American Act compliant, supporting ARRA-funded and federal procurement projects.
  • UL Listed Construction: listed to UL 514B, 467 and rated to NEMA FB 1 for dependable performance across the liquidtight connector line.
  • Materials Compliance: RoHS compliant, REACH compliant, CA Prop 65 compliant, and Conflict Minerals certified for responsible sourcing.

Certifications & Compliance

  • UL Listed to UL 514B, 467
  • NEMA FB 1 Standard
  • Federal Spec No A-A-50553
  • Buy American Act Compliant
  • ARRA Compliant
  • Made in USA
  • RoHS Compliant
  • REACH Compliant
  • CA Prop 65 Compliant
  • Conflict Minerals Certified

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Liquidtight Flexible Conduit Installations
  • Wet and Damp Location Wiring
  • Motor, Pump, and Machinery Connections
  • Industrial and Commercial Electrical Systems
  • Federal and Government-Spec Construction Projects

Why American Fittings?

American Fittings backs its 90° liquidtight steel connector line, spanning 1/2" through 2" trade sizes, with domestic manufacturing, UL 514B, 467 listing, and NEMA FB 1 compliance, giving electricians a dependable angled connector for code-compliant liquidtight conduit installations. Full RoHS, REACH, CA Prop 65, and Conflict Minerals compliance further supports specification on projects with strict material and sourcing requirements, while Buy American Act, ARRA, and Federal Spec No A-A-50553 compliance make it well suited for government and federally funded construction work.

Manufacturer Resources

Product Specs

Product Type:
90 Degree Liquidtight Connector
Product Material:
Steel
Product Size:
1/2" - 2"
Angle:
90°
Listing:
UL Listed
Standards:
NEMA FB 1
Country Of Origin:
United States
Department:
Electrical
Product Group:
Conduit & Raceway
Product Subgroup:
Liquidtight Conduit & Fittings

American Fittings STR5090 – Frequently Asked Questions

1) What trade sizes does the American Fittings STR-90 liquidtight connector come in?
The STR-90 line runs 1/2 inch through 2 inch: 1/2, 3/4, 1, 1-1/4, 1-1/2, and 2 inch trade sizes. Order by the part number matching the size, STR5090 for 1/2 inch, STR7590 for 3/4 inch, STR10090 for 1 inch, STR12590 for 1-1/4 inch, STR15090 for 1-1/2 inch, and STR20090 for 2 inch. Match the connector size to the trade size of the liquidtight flexible conduit, not to the enclosure knockout.
2) Is this connector approved for wet and damp locations?
Yes. It is built for liquidtight flexible conduit and is UL Listed to UL 514B and 467, and meets NEMA FB 1. The steel body and liquidtight design are intended to keep moisture, oil, and coolant off the conductors, which is what makes it suitable for wet and damp location wiring, outdoor machinery, and washdown areas.
3) Will this liquidtight connector meet Buy American requirements on a federal job?
It will. The STR-90 connectors are made in the United States and are Buy American Act compliant, ARRA compliant, and meet Federal Spec No A-A-50553. That combination is what specifiers usually want to see on federally funded and government-spec electrical work. They are also RoHS, REACH, and CA Prop 65 compliant and Conflict Minerals certified.
4) Can I use this on EMT or rigid conduit?
No. This is a liquidtight connector, made to terminate liquidtight flexible metal conduit. EMT and rigid need their own fitting types, set screw or compression for EMT and threaded for rigid. If your run is flexible liquidtight whip to a motor or pump and the entry needs to turn, this is the right fitting; if the run is hard pipe, it is not.
5) When should I use a 90 degree liquidtight connector instead of a straight one?
Use the 90 degree body when the conduit has to turn immediately at the box, a motor housing, or a pump, and there is not enough clearance behind or above the enclosure to sweep a straight connector into it. The angled body routes the whip around obstructions and into tight enclosures where a straight-line connector will not fit. If you have room for the conduit to come in on axis, a straight connector is the simpler termination.
6) Does this connector provide equipment grounding continuity?
The line is UL Listed to UL 514B and 467. UL 467 is the grounding and bonding equipment standard, so the connector is listed for grounding and bonding use alongside its fitting listing. Follow your local inspector's requirement on whether a separate bonding jumper is still needed for the circuit in question.
7) Is the body steel or die cast zinc?
Steel. American Fittings builds the STR-90 line in steel, which is what contractors normally spec for industrial and machinery connections where the fitting can take mechanical abuse and exposure to oil and coolant.
