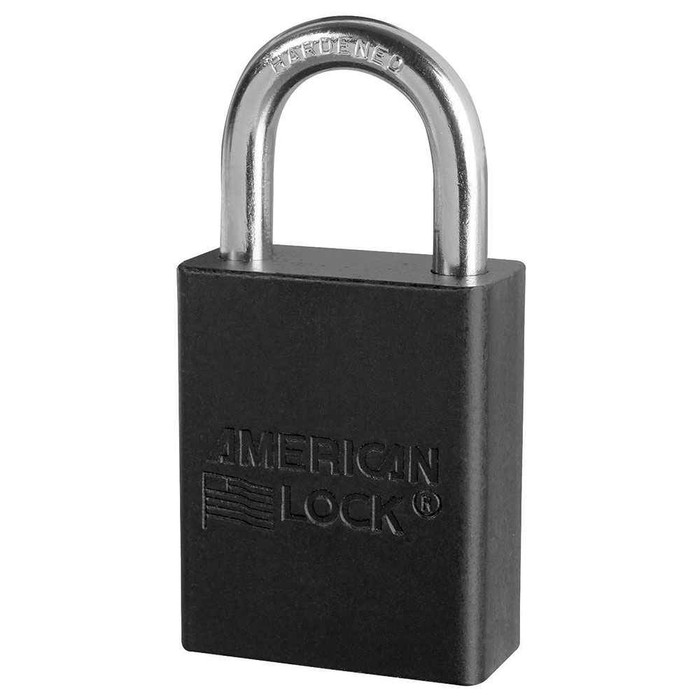

American Lock American Lock A3105WO (A3105WOKD) Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different AME-A3105WO

American Lock A3105WO (A3105WOKD) Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different

(No reviews yet) Write a Review

Model: AME-A3105WOKD BLK 2KEY
$27.00
Selected Lockbody Color is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$27.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

AMERICAN LOCK A3105WO (A3105WOKD) SOLID ALUMINUM SMALL FORMAT INTERCHANGEABLE CORE PADLOCK WITHOUT CYLINDER OVERVIEW

A3105WO (A3105WOKD) Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder. Small Format Interchangeable Cores & Padlocks - Aluminum.

The American Lock No. A3105WO (A3105WOKD) Small Format Interchangeable Core Solid Aluminum Padlock features a 1-1/2in (38mm) wide black aluminum body and a 1-1/2in (38mm) tall, 1/4in (6mm) diameter hardened boron shackle for superior cut resistance. Solid aluminum body is corrosion resistant, ideal for harsh environments while also being spark resistant and lightweight. A dual ball bearing mechanism resists pulling and prying and 16 interchangeable core keyways are available to match your door security system.

Buy the American Lock A3105WO (A3105WOKD) Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder for easy installation and dependable door hardware solution.

AMERICAN LOCK A3105WO (A3105WOKD) SOLID ALUMINUM SMALL FORMAT INTERCHANGEABLE CORE PADLOCK WITHOUT CYLINDER PRODUCT FEATURES

  • 1-1/2in (38mm) wide solid aluminum body offers strong protection against the elements
  • Durable black anodized finish withstands abuse and harsh environments
  • 1-1/2in (38mm) tall, 1/4in (6mm) diameter boron alloy steel shackle for superior cut resistance
  • Small Format Interchangeable Core padlock - 16 keyway options available
  • Self-Storage Units & Lockers
  • Tool Cribs
  • Utility Industry
  • Keying Options
  • Laser Engraving & Custom Marking
  • Shackle Options

AMERICAN LOCK A3105WO (A3105WOKD) SOLID ALUMINUM SMALL FORMAT INTERCHANGEABLE CORE PADLOCK COLOR VARIATION

American Lock A3105WOBLU (A3105WOKDBLU) Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder
American Lock A3105WOBRN (A3105WOKDBRN) Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder
American Lock A3105WOCLR (A3105WOKDCLR) Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder
American Lock A3105WOGRN (A3105WOKDGRN) Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder
American Lock A3105WOORJ (A3105WOKDORJ) Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder
American Lock A3105WOPRP (A3105WOKDPRP) Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder
American Lock A3105WORED (A3105WOKDRED) Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder
American Lock A3105WOYLW (A3105WOKDYLW) Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder

AMERICAN LOCK SMALL FORMAT INTERCHANGEABLE CORES & PADLOCKS - ALUMINUM COLLECTION

American Lock A3105CY (A3105CYKD) Solid Aluminum Small Format Interchangeable Core Padlock, Keyed Different
American Lock A3105CYUN Solid Aluminum Small Format Interchangeable Core Padlock, Uncombinated
American Lock A3105CYKA Solid Aluminum Small Format Interchangeable Core Padlock, Keyed Alike
American Lock A3105CYMK Solid Aluminum Small Format Interchangeable Core Padlock, Keyed Different (Master Keyed)
American Lock A3105CYKAMK Solid Aluminum Small Format Interchangeable Core Padlock, Keyed Alike (Master Keyed)
American Lock A3105WO (A3105WOKD) Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3105WOUN Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3105WOKA Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3105WOMK Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3105WOKAMK Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)
American Lock A3106WO (A3106WOKD) Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3106WOUN Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3106WOKA Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3106WOMK Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3106WOKAMK Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)
American Lock A3107WO (A3107WOKD) Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3107WOUN Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3107WOKA Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3107WOMK Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3107WOKAMK Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)

RESOURCES & DOWNLOADS

American Lock A3105WO (A3105WOKD) Solid Aluminum Small Format Interchangeable Core Padlock Catalog



Manufacturer Resources

Product Specs

Subcategory:
Solid Body Padlocks
Shelf Pack Qty:
6
Master Carton Qty:
24
Shackle Width:
3/4"
Shackle Diameter:
1/4"
Keyed:
Yes
Product Group:
Other / Miscellaneous Hardware
Product Subgroup:
Padlocks
Product Type:
Padlocks
Commercial/Residential:
Commercial
Cylinder Included:
No
Product Model:
A3105
Product Shackle Length:
1-1/2"
Product Style:
Small Format Interchangeable Cores & Padlocks
Product Category:
Other / Miscellaneous Hardware
Product Substrate:
Aluminum
Product Width:
1-1/2"
Department:
Door Hardware

American Lock AME-A3105WOKD BLK 2KEY – Frequently Asked Questions

1) Does the American Lock A3105WO padlock come with a core, or do I have to supply my own?
No cylinder ships with the A3105WO. It's a Small Format Interchangeable Core padlock body only, so you drop in your own SFIC core to key it into the system you already run. That's the point of the WO designation. If you want the lock supplied with a core already in it, the A3105CY is the same aluminum body with a cylinder.
2) Will my existing SFIC cores fit the A3105WO aluminum padlock?
The A3105 body takes a standard small format interchangeable core, and American Lock builds it for 16 interchangeable core keyways so it can be matched to an existing door system. If the cores in your building are SFIC and you already stock a control key for them, they go straight into these padlocks and the padlocks join the same master key system as the doors.
3) How wide is the shackle opening on the A3105 padlock, and will it go through my hasp?
Shackle clearance is 3/4 inch wide with a 1-1/2 inch shackle length and a 1/4 inch diameter boron alloy steel shackle. So the staple or hasp eye has to accept a 1/4 inch shank, and anything you're locking through needs to sit inside that 3/4 inch inside width. Body width is 1-1/2 inch. On self-storage hasps, tool crib cabinets and locker doors that's the usual fit; on a heavy chain link gate chain, measure the link first.
4) Should I order keyed different or keyed alike padlocks for a self-storage or locker installation?
Keyed different, which is what the A3105WO is, gives every lock its own key. That's right when each padlock belongs to a different tenant, employee or cabinet and nobody should cross into another. If you want one key to open the whole run, order the A3105WOKA keyed alike version instead. Where you need both, a tenant key on each lock plus a manager key over all of them, the A3105WOMK is keyed different master keyed and the A3105WOKAMK is keyed alike master keyed. There's also A3105WOUN, uncombinated, if your locksmith is pinning the cores in house.
5) What is the closest equivalent to an American Lock A3105WO if the facility standardizes on Sargent keying?
The Sargent 60-858-2 is a removable core padlock with a 2 inch stainless steel shackle, which is the same idea as the A3105WO: a padlock body that takes an interchangeable core so it joins an existing key system rather than carrying its own factory cylinder. The A3105WO ships without a cylinder and has a 1-1/2 inch aluminum body with a 1/4 inch diameter shackle and 1-1/2 inch shackle length, so the Sargent runs a longer shackle and a different body material. Pick by which core format the site already stocks.
6) Is an aluminum body padlock strong enough for outdoor gates and wash-down areas?
Solid aluminum is what you want where corrosion is the enemy. The A3105 body resists corrosion, is spark resistant, and is light in the hand compared with a steel or brass lock of the same size. Cut resistance comes from the shackle, not the body: it's 1/4 inch hardened boron alloy steel, and a dual ball bearing locking mechanism holds it against pulling and prying. For a coastal site, a utility yard or a chemical plant, that combination is the reason to pick aluminum over brass.
7) Can I get these American Lock aluminum padlocks in different colors to separate departments or crews?
Nine lockbody colors are offered on the A3105WO: black, blue, brown, clear, green, orange, purple, red and yellow. That's what makes this lock useful for color coding, one color per trade, per building, per tenant or per lockout crew, while every lock still takes the same SFIC core so your keying doesn't change. The black is an anodized finish over the aluminum.
8) What do I have to specify when ordering the A3105WO padlock?
Three things get chosen at order time. Lockbody color, one of nine. Key count, either 0, 1, 3, 4, or the standard 2 keys per lock. And whether you want it with a chain, which is a #40 sash chain, 9 inches (229mm) long, zinc plated, or with no chain at all. Keying on this version is keyed different, so each lock operates on its own change key.
9) I need a longer shackle than the A3105 gives me. What's the next size up in the same American Lock aluminum padlock?
The A3105 carries a 1-1/2 inch shackle. When it won't reach through a thick hasp, a gate chain or a stacked pair of ears, step up within the same aluminum SFIC family: the A3106WO and the A3107WO are the longer shackle versions of the same body, and each is offered in the same keyed different, keyed alike, master keyed and uncombinated variants. Same core, same aluminum body, more reach.
10) What's the difference between the A3105WO and an ABUS aluminum safety padlock?
Both are aluminum body locks, but they're built for different jobs. The A3105WO is a small format interchangeable core lock with no cylinder supplied, so it joins an existing SFIC master key system, and it has a 1/4 inch shackle in a 1-1/2 inch body. The ABUS 72/30 anodized aluminum safety padlock is a narrower 1-1/4 inch body with a 3/16 inch shackle, built as a lockout/tagout safety lock rather than a keyed-system padlock. The ABUS 74/40 insulated safety padlock matches the A3105 on shackle diameter at 1/4 inch and body width at 1-1/2 inch, with a 6-pin cylinder supplied. If the requirement is LOTO, look at the ABUS safety locks. If the requirement is one key system across doors and padlocks, the A3105WO is the one.
11) What else should I look at if I need an interchangeable core padlock but not an aluminum one?
Sargent builds a removable core padlock in the 758/858 family, the 60-858-2, with a 2 inch stainless steel shackle, which is the option when you want a brass or steel body and a taller shackle than the A3105's 1-1/2 inch. Medeco's 521 G8R is a weather-tight solid stainless steel body padlock supplied less pop-out cylinder, so it's another cylinder-supplied-separately choice, aimed at exposed outdoor service. The A3105WO stays the pick where weight and spark resistance matter, since the body is solid aluminum.
12) What padlock takes an interchangeable core like the A3105WO but has a metal body for a coastal or wash-down location?
The Medeco 521 G8R is a weather-tight padlock with a solid stainless steel body supplied less its pop-out cylinder, so like the American Lock A3105WO it is ordered as a body and cored separately. The A3105WO uses a solid aluminum body, which is corrosion resistant, spark resistant and lightweight, with a 1/4 inch boron alloy shackle. Choose between them on body material and on which cylinder format the key system uses.
13) For color-coded lockout or department tagging, what are the options besides buying different padlock brands?
The American Lock A3105WO body is offered in black, blue, brown, clear, green, orange, purple, red and yellow, so one part family covers a color-coded scheme across departments while every lock still accepts the same small format interchangeable core. If a covered body is preferred instead, the ABUS 76/40 is a plastic-covered aluminum core padlock with a 1/4 inch shackle diameter and a 1-37/64 inch width, and the ABUS T84MB/30 Nautic uses a black sleeve over the body with a 13/64 inch shackle and 1-17/64 inch body width.
14) What should be used instead of an A3105WO when the hasp needs a heavier shackle than 1/4 inch?
The American Lock A3105WO carries a 1/4 inch diameter shackle with a 3/4 inch shackle width, which suits standard self-storage, locker and tool crib hasps. For a thicker shackle, the Medeco 5260 is a 52 Series brass body padlock with a 7/16 inch shackle diameter in satin chrome, and the Schlage KS23D/KS23F is a brass padlock with a 5/16 inch diameter shackle. Both are brass bodied rather than aluminum, so weight and finish change along with the shackle.
15) Does the A3105WO retain the key when the lock is open, and what are the alternatives?
Key retention on the American Lock A3105WO depends on the small format interchangeable core installed, since the body ships without a cylinder. Where retention has to be fixed by the lock itself, the Sargent 758 is a key retaining standard padlock in US4 satin brass, and the Sargent 858 is the non-key-retaining version with a stainless steel shackle in the same US4 satin brass finish. The Sargent 82-856 is also non-key-retaining, with a 2 inch by 2 inch brass case and stainless steel shackle.
16) What replaces a mechanical interchangeable core padlock when access needs to be audited or revoked remotely?
The Medeco 54515G XT is an electronic indoor/outdoor padlock, non-key-retaining, with a 5/16 inch shackle diameter and a cylinder included. That is a different access model from the American Lock A3105WO, which is a mechanical body supplied without a cylinder and keyed by installing a small format interchangeable core. Use the A3105WO where the site runs a mechanical key system and the XT where credentials are managed electronically.
17) How many A3105WO padlocks come in a box for a bulk order?
Shelf pack is 6 locks and the master carton holds 24. For a property manager doing a building rekey or a distributor stocking the shelf, that's the buying unit to plan around.
18) Is the A3105WO padlock rated for commercial use or is it a consumer lock?
Commercial. The A3105 is a solid body padlock built for self-storage units and lockers, tool cribs and utility industry work, with a hardened boron alloy shackle and a dual ball bearing locking mechanism. It isn't a retail hardware-aisle lock, and the fact that it takes an interchangeable core is the tell: it's meant to be administered as part of a keying system by a locksmith or facility team.
19) Can I get the A3105 padlock with a chain so it doesn't get lost when the gate is open?
Yes. A chain option is offered alongside the plain lock: #40 sash chain, 9 inches (229mm) long, zinc plated. It keeps the padlock tethered to the hasp or door when the lock is off, which is the standard fix for locks walking away on utility cabinets and gate installs. The alternative is NONE, the lock supplied loose.
20) For a distributor stocking padlocks, what separates the American Lock A3105WO from the brass-body Sargent and Schlage padlocks?
The A3105WO is model A3105 in the small format interchangeable core aluminum line, a solid body padlock supplied without a cylinder, 1-1/2 inch body width, 1/4 inch shackle diameter, 1-1/2 inch shackle length, packed 6 per shelf pack and 24 per master carton. The brass-body peers are complete locks with their own cylinders: the Schlage KS23D/KS23F in the 20 Series with a 5/16 inch shackle, the Sargent 758 in the 758 Series and the Sargent 858 in the 858 Series, both in US4 satin brass. The A3105WO also comes in nine body colors, which the brass peers do not offer.
