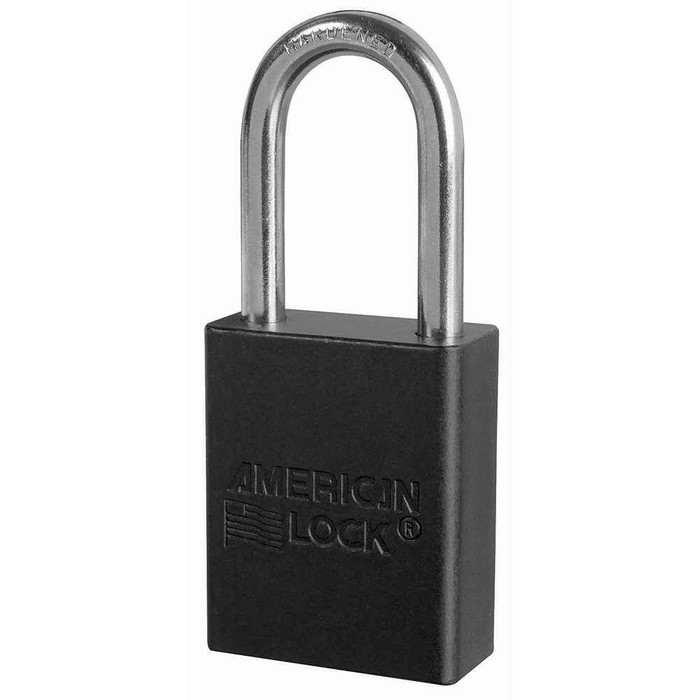

American Lock A3106WOUN Solid ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$33.40
American Lock American Lock A3106WOUN Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated AME-A3106WOUN

American Lock A3106WOUN Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated

(No reviews yet) Write a Review

Model: AME-A3106WOUN BLK 2KEY
$33.40
Selected Lockbody Color is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$33.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

AMERICAN LOCK A3106WOUN SOLID ALUMINUM SMALL FORMAT INTERCHANGEABLE CORE PADLOCK WITHOUT CYLINDER OVERVIEW

A3106WOUN Solid Aluminum Small Format Interchangeable Core Padlock. Small Format Interchangeable Cores & Padlocks - Aluminum.

The American Lock No. A3106WOUN Small Format Interchangeable Core Solid Aluminum Padlock features a 1-1/2in (38mm) wide black aluminum body and a 1-1/2in (38mm) tall, 1/4in (6mm) diameter hardened boron shackle for superior cut resistance. Solid aluminum body is corrosion resistant, ideal for harsh environments while also being spark resistant and lightweight. A dual ball bearing mechanism resists pulling and prying and 16 interchangeable core keyways are available to match your door security system.

Buy the American Lock A3106WOUN Solid Aluminum Small Format Interchangeable Core Padlock for easy installation and dependable door hardware solution.

AMERICAN LOCK A3106WOUN SOLID ALUMINUM SMALL FORMAT INTERCHANGEABLE CORE PADLOCK WITHOUT CYLINDER PRODUCT FEATURES

  • 1-1/2in (38mm) wide solid aluminum body offers strong protection against the elements
  • Durable black anodized finish withstands abuse and harsh environments
  • 1-1/2in (38mm) tall, 1/4in (6mm) diameter boron alloy steel shackle for superior cut resistance
  • Small Format Interchangeable Core padlock - 16 keyway options available
  • Self-Storage Units & Lockers
  • Tool Cribs
  • Utility Industry
  • Keying Options
  • Laser Engraving & Custom Marking
  • Shackle Options

A3106WOUN SOLID ALUMINUM SMALL FORMAT INTERCHANGEABLE CORE PADLOCK COLOR VARIATION

American Lock A3106WOUNBLU Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder
American Lock A3106WOUNBRN Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder
American Lock A3106WOUNCLR Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder
American Lock A3106WOUNGRN Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder
American Lock A3106WOUNORJ Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder
American Lock A3106WOUNPRP Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder
American Lock A3106WOUNRED Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder
American Lock A3106WOUNYLW Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder

AMERICAN LOCK SMALL FORMAT INTERCHANGEABLE CORES & PADLOCKS - ALUMINUM COLLECTION

American Lock A3105CY (A3105CYKD) Solid Aluminum Small Format Interchangeable Core Padlock, Keyed Different
American Lock A3105CYUN Solid Aluminum Small Format Interchangeable Core Padlock, Uncombinated
American Lock A3105CYKA Solid Aluminum Small Format Interchangeable Core Padlock, Keyed Alike
American Lock A3105CYMK Solid Aluminum Small Format Interchangeable Core Padlock, Keyed Different (Master Keyed)
American Lock A3105CYKAMK Solid Aluminum Small Format Interchangeable Core Padlock, Keyed Alike (Master Keyed)
American Lock A3105WO (A3105WOKD) Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3105WOUN Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3105WOKA Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3105WOMK Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3105WOKAMK Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)
American Lock A3106WO (A3106WOKD) Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3106WOUN Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3106WOKA Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3106WOMK Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3106WOKAMK Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)
American Lock A3107WO (A3107WOKD) Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3107WOUN Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3107WOKA Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3107WOMK Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3107WOKAMK Solid Aluminum Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)

RESOURCES & DOWNLOADS

American Lock A3106WOUN Solid Aluminum Small Format Interchangeable Core Padlock Catalog

Manufacturer Resources

Product Specs

Subcategory:
Solid Body Padlocks
Shelf Pack Qty:
6
Master Carton Qty:
24
Shackle Width:
3/4"
Shackle Diameter:
1/4"
Product Group:
Other / Miscellaneous Hardware
Product Subgroup:
Padlocks
Product Type:
Padlocks
Commercial/Residential:
Commercial
Cylinder Included:
No
Product Model:
A3106UN
Keying Option:
Uncombinated
Product Shackle Length:
1-1/2"
Product Style:
Small Format Interchangeable Cores & Padlocks
Product Category:
Other / Miscellaneous Hardware
Product Substrate:
Aluminum
Product Width:
1-1/2"
Department:
Door Hardware

American Lock AME-A3106WOUN BLK 2KEY – Frequently Asked Questions

1) Does the American Lock A3106WOUN padlock come with a core or keys?
No core, no keys. The A3106WOUN ships without a cylinder and uncombinated, so you supply and install your own small format interchangeable core to bring it onto your existing key system. If you want the lock delivered with a factory core instead, the A3106 family also runs in keyed different, keyed alike, and master keyed versions with cylinder.
2) Will a small format interchangeable core from my building key system fit this American Lock aluminum padlock?
Yes, it is built as a small format interchangeable core padlock and American Lock offers 16 interchangeable core keyway options to match an existing door system. Pull the core you use on your doors, drop it in with the control key, and the padlock works off the same keys as the openings.
3) What size shackle opening does the A3106 aluminum padlock give me for a hasp?
The shackle is 1/4 inch in diameter with a 3/4 inch clearance between the legs and 1-1/2 inch of vertical height, on a body 1-1/2 inches wide. That 3/4 inch inside width is the number to check against your hasp staple or chain link, and the 1/4 inch diameter needs a hasp hole that will pass it.
4) What padlock can replace the American Lock A3106WOUN if the site standardizes on Sargent removable core cylinders instead?
The A3106WOUN is a small format interchangeable core padlock shipped without a cylinder and uncombinated, so the core comes from your keying system. If the facility keys to Sargent, the Sargent 60-858-2 is a removable core padlock with a 2 inch stainless steel shackle, and the Sargent 82-856 is a non-key-retaining padlock with a 2 inch by 2 inch brass case and stainless steel shackle. Both are larger-bodied brass or stainless designs rather than the 1-1/2 inch wide solid aluminum body of the A3106WOUN.
5) Is there an aluminum body padlock with the same 1/4 inch shackle diameter as the American Lock A3106WOUN but supplied with its own cylinder?
Yes. The A3106WOUN uses a 1/4 inch diameter shackle on a 1-1/2 inch wide aluminum body and arrives without a cylinder so you fit your own small format interchangeable core. The ABUS 74/40 insulated safety padlock has a 1/4 inch shackle diameter and a 1-1/2 inch body width with a 6-pin cylinder, and the ABUS 76/40 pairs a 1/4 inch shackle with a plastic-covered aluminum core body about 1-37/64 inch wide. Those come keyed as built rather than accepting an interchangeable core.
6) Which padlock should be used instead of the American Lock A3106WOUN on a wet or exposed outdoor hasp?
The A3106WOUN has a corrosion resistant solid aluminum body, but it is an open small format interchangeable core design with no weather cover. For exposed service, the Medeco 521 G8R is a weather-tight padlock with a solid stainless steel body supplied less pop-out cylinder, and the Medeco 54515G XT is an indoor/outdoor electronic padlock with a 5/16 inch shackle diameter supplied with its cylinder. The ABUS T84MB Nautic uses a black sleeve over the body with a 13/64 inch shackle on a 1-17/64 inch wide body.
7) If a thicker shackle is required than the American Lock A3106WOUN provides, what padlocks step up?
The A3106WOUN uses a 1/4 inch diameter hardened boron shackle. For a heavier cross section, the Schlage KS23D/KS23F is a brass padlock with a 5/16 inch diameter shackle, the Medeco 54515G also runs a 5/16 inch shackle, and the Medeco 5260 in the 52 Series has a brass body with a 7/16 inch shackle diameter and M3 key technology in satin chrome. Confirm the hasp opening accepts the larger shackle before substituting.
8) Why choose an aluminum body padlock instead of steel or brass for outdoor and utility work?
Solid aluminum is corrosion resistant, spark resistant, and light, which is why this body style gets used in utility work, tool cribs, self storage, and lockers. The security still comes from steel: the shackle is hardened boron alloy for cut resistance, and a dual ball bearing mechanism holds it against pulling and prying. If you want a brass or stainless body instead, the Sargent 858 uses a stainless steel shackle with a satin brass case and the Medeco 521 G8R has a solid stainless steel body.
9) Can I get these American Lock aluminum SFIC padlocks in colors to code different departments?
Yes. The lock body comes in nine colors: black, blue, brown, clear, green, orange, purple, red, and yellow. Fleet and MRO buyers use that to color code by department, contractor, or energy source across a facility while keeping one core type throughout.
10) Is there a chain option so the padlock stays attached to the gate or locker?
There is. You can order it with a #40 sash chain, 9 inches (229mm) long, zinc plated, or with no chain at all. The chain keeps the lock tethered so it does not walk off when the hasp is open.
11) What is the difference between the A3105, A3106 and A3107 aluminum SFIC padlocks?
They are the same solid aluminum small format interchangeable core family, separated by shackle height. The A3106 carries a 1-1/2 inch shackle. The A3105 and A3107 are the shorter and taller members of the same line, so pick by how much clearance your hasp or chain needs while the body, core type, and keyway options stay the same.
12) I need a padlock for lockout tagout on electrical gear, is this the right one?
The A3106 aluminum body is non-sparking and light, which suits it to electrical and utility environments, but it is a keyed SFIC padlock rather than a dedicated safety lockout lock. If you want a purpose built safety padlock, the ABUS 74/40 is an insulated safety padlock with a 6-pin cylinder, 1/4 inch shackle and 1-1/2 inch body, and the ABUS 72/30 is an anodized aluminum safety padlock with a 1-1/4 inch body and 3/16 inch shackle.
13) Is the ABUS 72/30 a direct substitute for the American Lock A3106WOUN on color-coded lockout stations?
They are close in intent but not dimensionally equal. The A3106WOUN is a 1-1/2 inch wide aluminum body with a 1/4 inch shackle and 3/4 inch shackle width, and it is available in black, blue, brown, clear, green, orange, purple, red and yellow bodies. The ABUS 72 Series 72/30 is an anodized aluminum safety padlock with a 1-1/4 inch body width and a 3/16 inch shackle diameter, so it is a smaller body on a thinner shackle. The A3106WOUN also takes a separate small format interchangeable core, while the 72/30 does not.
14) Which padlocks look like substitutes for the American Lock A3106WOUN but will not accept an interchangeable core?
The A3106WOUN is built as a small format interchangeable core padlock supplied uncombinated with no cylinder, so it is meant to be cored into an existing system. Padlocks that ship with their own cylinder are not drop-in equivalents for that workflow: the ABUS 74/40 comes with a 6-pin cylinder, the Medeco 5260 uses M3 key technology in its brass body, and the Medeco 54515G XT is an electronic padlock supplied with cylinder. If core interchange matters, look instead to removable core designs such as the Sargent 60-858-2 or a body supplied less cylinder like the Medeco 521 G8R.
15) How many keys ship with the A3106WOUN and does that matter if I am supplying my own core?
Key count is an order option: 0, 1, 2 (standard), 3, or 4 keys per lock. Since this version is uncombinated and has no cylinder, most buyers keying it into an existing SFIC system take the zero key option and use the keys already cut for their system.
16) How are these American Lock padlocks packed for a bulk facility order?
Shelf pack is 6 locks and the master carton holds 24. Standardizing a facility on one body size and one core keyway is straightforward at those quantities.
17) Is this padlock meant for commercial use or is it a consumer lock?
It is a commercial solid body padlock, model A3106UN, built for facility use such as tool cribs, utility applications, self storage units and lockers rather than household use.
18) For a spark resistant, lightweight padlock, does the American Lock A3106WOUN or an ABUS aluminum lock suit better?
Both are aluminum-bodied. The A3106WOUN uses a solid aluminum body described as spark resistant and lightweight with a black anodized finish, in a 1-1/2 inch width with a 1/4 inch boron shackle. On the ABUS side, the 72/30 is an anodized aluminum safety padlock at 1-1/4 inch body width with a 3/16 inch shackle, and the 76/40 is a plastic-covered aluminum core body with a 1/4 inch shackle. The A3106WOUN differs in that the body is left uncombinated for your own core.
