Anchor 3/16 x 2-1/4 (1/4" Hd) Quadrive Concrete Screw USA (1000pcs)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Screws
Metallics QCSH3B – Frequently Asked Questions
1) What driver do I need for the Metallics QCSH3B concrete screw?

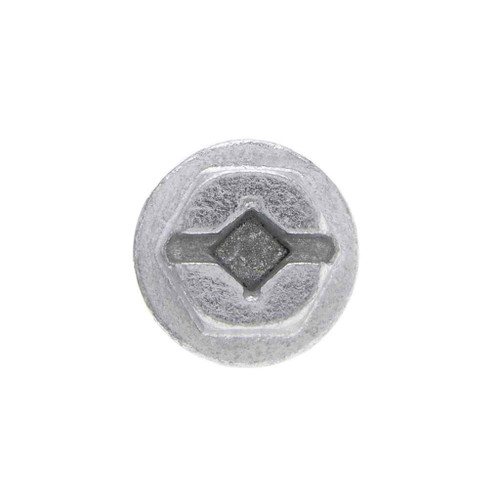

It has a 1/4 inch hex washer head, so a 1/4 inch hex nut setter in an impact driver is what you want. The Quadrive thread form cuts its own threads in the pre-drilled hole, so no separate plug, shield or sleeve anchor is needed.
2) Can I use the QCSH3B to mount electrical boxes and strut to a concrete or block wall?
Yes. The 3/16 x 2-1/4 Quadrive is a masonry screw anchor for fastening into concrete, block and brick, and the 2-1/4 inch length leaves usable embedment after passing through a box ear, strap, clip or strut channel. For thicker standoffs or deeper fixtures you want a longer screw in the same diameter, since embedment is whatever length remains past the fixture.
3) How many Metallics QCSH3B screws come in a box?
They ship 1000 pieces to the box, which is a contractor bulk pack rather than a jobsite handful. Useful if you are standardizing one anchor size across a building for conduit straps, box mounting and hangers; if you only need a few dozen, a bulk carton is more than the job calls for.
4) Can concrete screws like the QCSH3B be removed and reused?
They back out with the same 1/4 inch hex driver, so removal is easy, but reinstalling in the same hole is unreliable because the threads were cut into the masonry on the first pass. If you have to relocate, drill a fresh 5/32 inch hole rather than reusing the old one.
