Anchors 1/2 x 6 Hx Hd Lg Dia CS St-Gv (Box 25)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Box
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Anchors
Metallics LCSX1260 – Frequently Asked Questions
1) Will a 1/2 x 6 anchor work in hollow block or drywall?
No. The LCSX1260 is a large diameter screw anchor meant for solid base material like poured concrete, where the threads cut into the drilled hole. Hollow block cells, drywall, or hollow tile won't develop holding power with it. Use a toggle or sleeve type anchor rated for hollow base material instead.
2) Is the LCSX1260 anchor galvanized for outdoor or damp locations?
Yes. The 1/2 x 6 LCSX1260 is carbon steel with a galvanized coating, so it holds up better than plain steel in damp or exterior concrete work. For fully corrosive or coastal exposure, stainless is the usual step up.
3) Do I need a hex driver or a wrench to set the Metallics LCSX1260?

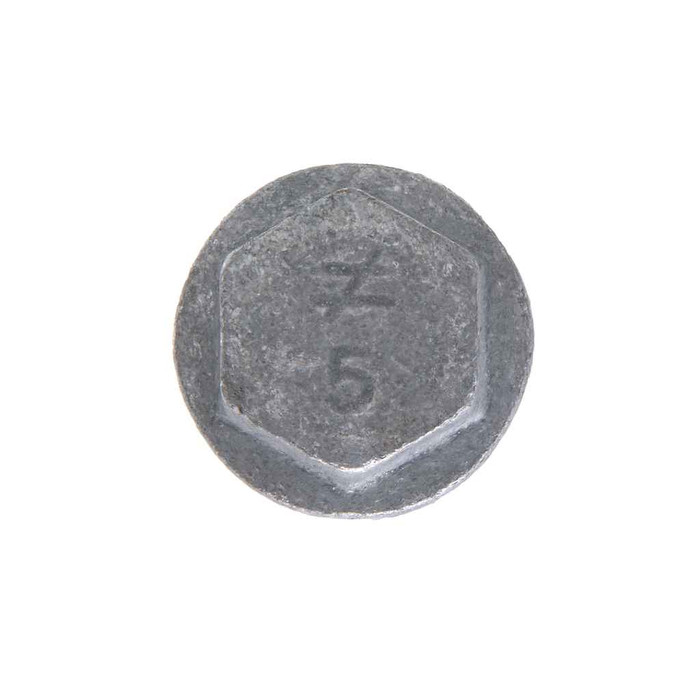

It's a hex head anchor, so it drives with a socket or impact wrench rather than a bit in a screw gun. Large diameter screw anchors like this 1/2 inch size are torqued down after the hole is drilled, so plan on an impact wrench for a box of 25.
4) What is the LCSX1260 used for on electrical jobs?
It's a fastener anchor stocked for electrical work, typically for mounting heavier gear to concrete or masonry: strut channel, panel and enclosure backing, transformer and disconnect mounts. The 6 inch length suits going through a mounting plate or furring into solid base material.
5) How deep do I have to drill for a 1/2 inch by 6 inch screw anchor?
The hole has to be drilled deeper than the embedment you want, because the anchor cuts its own thread and the dust falls to the bottom. With a 6 inch anchor you are sizing the hole to whatever embedment the fixture thickness leaves you, so measure your fixture, subtract it from the 6 inches, and drill past that figure in solid concrete.
How fast can I get the Metallics LCSX1260 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Metallics LCSX1260 come with a warranty?
Absolutely. The Metallics LCSX1260 is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Metallics LCSX1260?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
