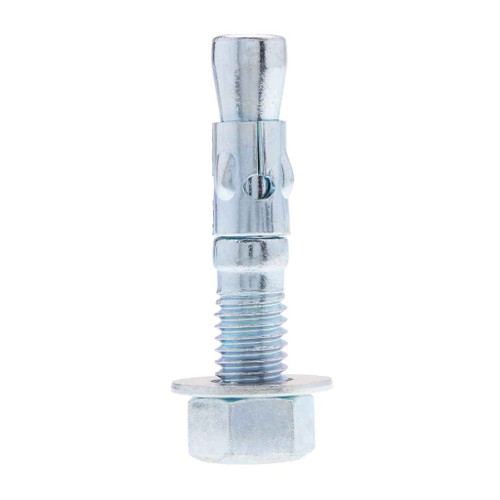

Metallics TS312G Anchors 3/8 x 3-3/4 Wdg Galv (Box 100)

Drill a 3/8 inch hole with a carbide bit. Wedge anchors are drilled to the same nominal diameter as the anchor itself, so the 3/8 x 3-3/4 inch TS312G goes into a 3/8 inch hole drilled deeper than the embedment you need so debris has somewhere to go. Blow or vacuum the hole out, then drive the anchor through the fixture until the clip is past the surface and tighten the nut to expand the wedge.

Wedge anchors are for solid concrete only. The expansion clip needs a continuous hole wall to grip, so they are used in poured slabs, walls, and footings, not in hollow block, brick, or grout-filled cells. For hollow masonry use a sleeve anchor or a toggle; for hollow block or drywall a wedge anchor will spin and never set.

It is a galvanized wedge anchor, so it holds up better outdoors, in damp mechanical rooms, and in parking structures than a plain zinc anchor. For permanently submerged, coastal, or chemically aggressive conditions, stainless is the usual move instead.

Yes, that is the common use for this length. The 3-3/4 inch overall length on the TS312G leaves working thread for the fixture plus nut and washer once the anchor body is embedded in the slab. Thicker fixtures or stacked channel eat into that, so measure your fixture thickness against the length before you buy. Overhead anchoring into the underside of a slab is also where you want to be sure the hole is clean, because an unseated clip in tension is how overhead anchors pull out.

No. Once the nut is tightened and the wedge clip expands against the hole wall, the anchor is permanent. You can remove the nut and the fixture, but the body stays in the concrete. If the anchor is in the wrong spot, drive it below the surface and patch, then re-drill a new hole at least several diameters away so you are not in the failure cone of the old one.

They ship 100 per box, which is the Metallics box pack for this item. Nuts and washers come with wedge anchors as assembled; the carbide bit is separate.
