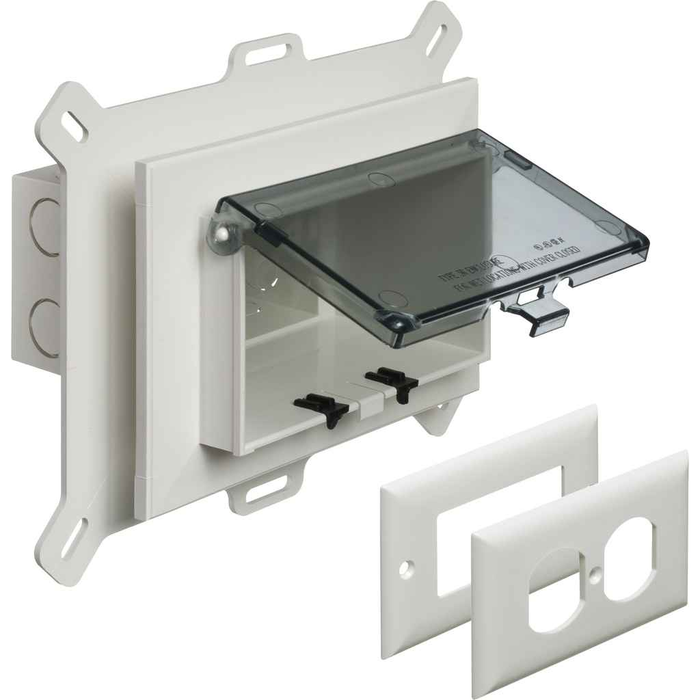

Arlington Industries DBHSXX 1-Gang Low Profile Outlet Box for Vinyl Siding, UV-Rated Plastic

Arlington Industries DBHSXX 1-Gang Low Profile Outlet Box for Vinyl Siding, UV-Rated Plastic

(No reviews yet) Write a Review

Model: DBHS1C

In Stock (leaves warehouse same day if ordered before 3pm ET)

$44.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
"

Arlington Industries DBHSXX 1-Gang Low Profile Outlet Box for Vinyl Siding, UV-Rated Plastic

The Arlington Industries DBHSXX is a 1-gang, low profile outlet box engineered specifically for new vinyl siding construction, allowing electricians to mount exterior receptacles without adding bulk or a raised profile to the finished wall. Molded from UV-rated plastic, the DBHSXX sits flush against the siding for a clean, professional appearance and ships in both vertical and horizontal orientations with a choice of clear or white extra duty covers. Every box is UL and CSA listed and built to satisfy 2017 NEC Section 406.9(B), making it a dependable, code-compliant choice for new residential and light commercial siding projects that require a durable, weatherproof exterior box.

Key Features

  • Low Profile Design: 1-gang body sits flush against the siding for a clean, finished look and reduced weather exposure.
  • UV-Rated Plastic: Resists sunlight degradation for lasting outdoor performance in exterior installations.
  • Extra Duty Cover: Clear or white cover option provides enhanced weatherproof protection for exterior receptacles.
  • Vertical & Horizontal Orientations: Choose the configuration that fits your rough-in layout and receptacle orientation.
  • Paintable Surface: Paint the body to match any siding color or architectural finish for a seamless exterior appearance.
  • UL and CSA Listed: Meets recognized safety standards for professional electrical installations.
  • Compatible with All Siding Types: Works with vinyl, fiber cement, wood, and composite siding for versatile jobsite use.

Certifications & Compliance

  • UL Listed
  • CSA Listed
  • 2017 NEC Section 406.9(B) Compliant, meeting exterior outlet protection requirements for wet-location in-use covers

Technical Specifications

  • Gang Size: 1-Gang
  • Body Color: White
  • Cover Color: Clear or White (by variant)
  • Orientation: Vertical or Horizontal (by variant)
  • Material: UV-Rated Plastic
  • Listing: UL, CSA
  • NEC Compliance: Meets 2017 NEC Section 406.9(B) for exterior outlet protection requiring a wet-location in-use cover
  • Paintable: Yes
  • Siding Compatibility: All Types
  • Country of Origin: United States
  • Standard Pack: 4 pcs
  • Unit Pack: 1 pc

Typical Applications

  • New residential and light commercial construction
  • Vinyl and composite siding installations
  • Exterior GFCI and standard outlet rough-ins
  • Weatherproof exterior electrical protection
  • Code-compliant exterior outlet boxes

Why Arlington Industries?

Arlington Industries manufactures this outlet box in the United States and backs it with UL and CSA listings, giving electricians a reliable, code-compliant exterior box that installs fast and looks right on the finished wall. The DBHSXX pairs a low profile, UV-rated plastic body with an extra duty clear or white cover, making it a go-to solution for new vinyl siding construction where a clean exterior finish and 2017 NEC Section 406.9(B) compliance both matter for the job. With vertical and horizontal orientations, clear or white cover options, and a paintable surface compatible with vinyl, fiber cement, wood, and composite siding, the DBHSXX gives contractors and electricians a single flexible part number to stock for a wide range of exterior siding rough-in scenarios on residential and light commercial jobsites.

"

Manufacturer Resources

Product Specs

Country Of Origin:
United States
Listing:
UL, CSA
Paintable:
Yes
Siding Type:
All Types
Department:
Electrical
Product Type:
Mounting Block
Product Category:
Siding & Mounting Blocks
Product Color:
White
Product Material:
UV-Rated Plastic
Product Size:
1-Gang
Product Cover Color:
Clear
Product Group:
Siding Mounting Blocks

Arlington Industries DBHS1C – Frequently Asked Questions

1) Will the Arlington DBHS1/DBVS1 low profile outlet box work on fiber cement or wood siding, or is it only for vinyl?
Siding compatibility is all types, so the box works on vinyl, fiber cement, wood and composite walls, not just vinyl. It is built for new construction, where the box goes in at rough-in before the siding is closed up around it. The body is UV-rated plastic, so it holds up on a sun-exposed elevation.
2) What do I have to specify when ordering the Arlington DBHS1 or DBVS1 siding outlet box?
Two choices decide the part number: orientation and cover color. The four combinations are DBHS1C and DBHS1W for the vertical version in clear and white, and DBVS1C and DBVS1W for the horizontal version in clear and white. The box body is white on all four. Pick orientation off your rough-in layout and cover color off whether you want the receptacle visible.
3) Does the Arlington low profile siding box satisfy the code requirement for an in-use cover on an exterior receptacle?
Yes. The box meets 2017 NEC Section 406.9(B), the exterior outlet requirement for a wet-location in-use cover, and the extra duty cover is part of the assembly rather than something you add later. It is also UL and CSA Listed. For a facility inspection that is the pairing an AHJ looks for: listed enclosure plus an extra duty in-use cover.
4) Can I use the Arlington DBVS1 box to add an outlet to a house that is already sided?
It is a new construction box. It goes in during rough-in, before or as the siding goes on, so the flange sits flat against the wall and the siding closes to it. On an existing sided wall you would be cutting the siding back to make that work. For a retrofit on finished siding, use a box built for that, not this one.
5) How many receptacles will the Arlington DBHS1 siding outlet box hold?
One. It is a 1-gang box, so it takes a single duplex or a single GFCI device. For a two-device exterior location you need a 2-gang box, not two of these side by side, unless the layout genuinely calls for two separate openings in the siding.
6) Why choose a low profile siding box instead of a standard weatherproof box with a bubble cover?
A surface-mounted weatherproof box with a bubble cover sticks out from the wall and catches weather; this one mounts flush against the siding surface so it barely protrudes and there is less exposed edge for water to work behind. The trade-off is that you have to plan it at rough-in. On a wall where appearance matters, or where a bubble cover would look wrong against clean siding, the low profile box is the one to spec.
7) Do the Arlington DBHS1 and DBVS1 boxes come as a complete kit or do I buy the cover separately?
Box and extra duty cover ship together as one assembly, so the cover color is baked into the part number rather than ordered as a separate line. You still supply the receptacle and the wiring method. Standard pack is 4 pieces, unit pack is 1.
8) Can I paint the Arlington siding outlet box to match the house color?
Yes, the box is paintable, which is how you get it to disappear into a colored siding run or match an architectural spec. The stock body is white. If you want the receptacle itself hidden, order the white cover version; the clear cover leaves the device and anything plugged in visible.
9) Is the Arlington low profile outlet box made in the USA?
Yes, Arlington Industries manufactures it in the United States. That matters on public and institutional jobs carrying domestic-sourcing language in the spec, and it is a documented attribute here rather than a marketing claim.
