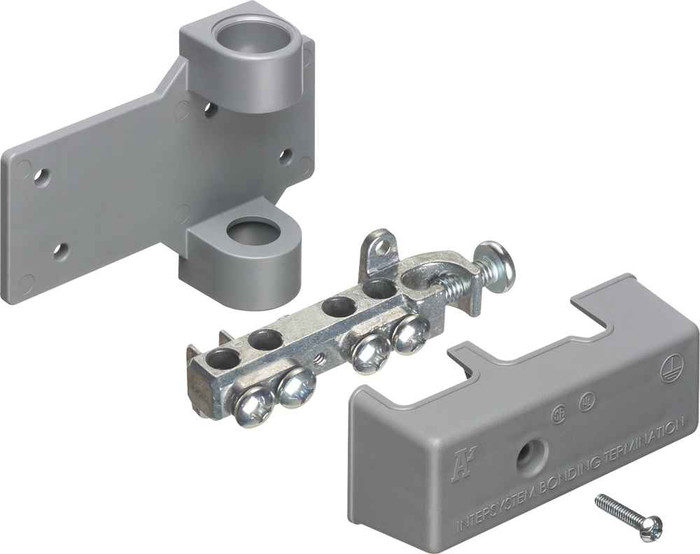

Arlington Industries Intersystem Grounding Bridge with 4 Termination Points, Lay-In Style Lug, NEC Compliant

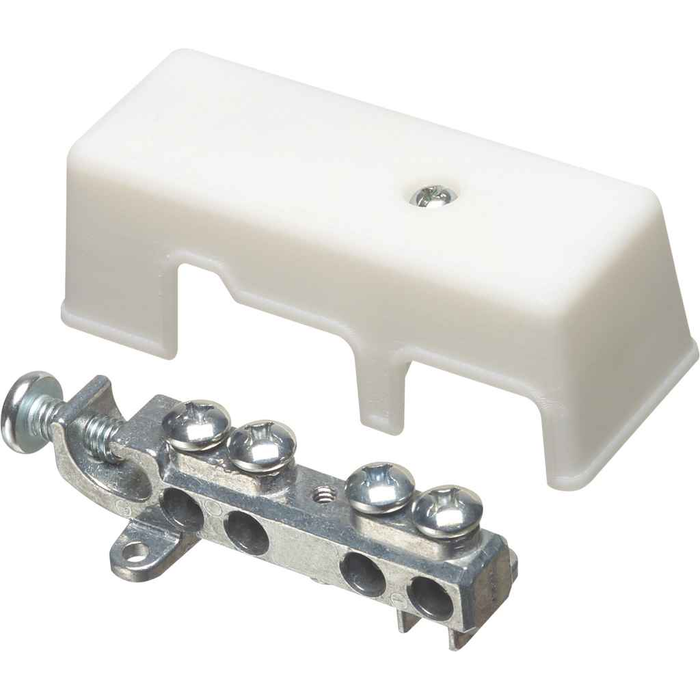

Arlington Industries Intersystem Grounding Bridge with 4 Termination Points - NEC Compliant Bonding System

(No reviews yet) Write a Review

Model: GB5

In Stock (leaves warehouse same day if ordered before 3pm ET)

$11.67
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Arlington Industries Intersystem Grounding Bridge with 4 Termination Points - NEC Compliant Bonding System

Professional intersystem bonding solution for reliable power and communication grounding

The Arlington Industries Intersystem Grounding Bridge delivers professional-grade bonding between power and communication grounding systems with NEC compliant design. This zinc construction bridge features four termination points for versatile conductor connections, accommodating #6 to #2 grounding electrode conductors and #14 to #4 intersystem bonding conductors in copper or aluminum configurations. The lay-in style lug design with paintable plastic cover ensures reliable performance and professional installation flexibility.

Professional Features & Benefits

  • Four Termination Points: Provides multiple connection options for comprehensive intersystem bonding applications and flexible conductor routing.
  • NEC Compliant Design: Ensures code compliance for professional electrical installations and meets industry safety standards.
  • Zinc Bridge Construction: Delivers corrosion resistance and long-term durability for reliable grounding system performance.
  • Versatile Conductor Compatibility: Accommodates #6 to #2 grounding electrode and #14 to #4 intersystem bonding conductors in copper or aluminum.
  • cULus Listing: Provides third-party safety verification for professional installation confidence and code compliance.
  • Lay-In Style Lug Design: Simplifies installation with easy conductor placement and secure termination capabilities.
  • Paintable Plastic Cover: Allows customization to match installation environment while protecting connections from environmental exposure.

Technical Specifications

  • Application: Provides Reliable Intersystem Bonding Between Power and Communication Grounding Systems
  • Color: Silver
  • Country Of Origin: United States
  • Equipment Grounding Conductor: #6 to #2 Copper or Aluminum - Solid or Stranded
  • Grounding Electrode: #6 to #2 Copper or Aluminum - Solid or Stranded
  • Intersystem Bonding And Grounding Conductors: #14 to #4 Copper or Aluminum - Solid or Stranded
  • Listing: cULus
  • Material S : Zinc (Bridge) / Paintable Plastic (Cover)
  • Pipe Size: 1/2" PVC Conduit
  • Standard Packaging: 10pcs
  • Termination Points: (4) Four
  • Trade Size: #6 to #2 Grounding Electrode
  • Unit Packaging: 1pc

Installation & Operation

  1. Mount the grounding bridge in a suitable location with appropriate clearance and access for conductor connections and service.
  2. Connect grounding electrode conductors following applicable NEC guidelines and the manufacturer's instructions.
  3. Wire intersystem bonding conductors according to the provided specifications and compatible conductor sizes.
  4. Configure termination points as needed for the specific grounding system requirements and conductor routing.
  5. Test bonding continuity and verify proper grounding system performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to grounding system applications.

Professional Applications

  • Residential Electrical Systems
  • Commercial Building Grounding
  • Communication System Bonding
  • Multi-Unit Properties
  • Professional Offices
  • Industrial Facilities
  • Telecommunications Infrastructure

Why Choose Arlington Industries Quality?

Arlington Industries delivers reliable intersystem grounding solutions with cULus listing verification and NEC compliant design. The zinc construction with paintable plastic cover ensures long-term durability and professional installation flexibility, backed by USA manufacturing quality standards for dependable grounding system performance.

Manufacturer Resources

Product Specs

Application:
Provides Reliable Intersystem Bonding Between Power and Communication Grounding Systems
Country Of Origin:
United States
Equipment Grounding Conductor:
#6 to #2 Copper or Aluminum - Solid or Stranded
Grounding Electrode:
#6 to #2 Copper or Aluminum - Solid or Stranded
Intersystem Bonding And Grounding Conductors:
#14 to #4 Copper or Aluminum - Solid or Stranded
Listing:
cULus
Termination Points:
(4) Four
Department:
Electrical
Product Type:
Intersystem Grounding Bridge
Product Category:
Grounding Products
Pipe Size Dimension:
1/2" PVC Conduit
Product Color:
Silver
Product Material:
Zinc (Bridge) / Paintable Plastic (Cover)
Product Size:
#6 to #2 Grounding Electrode
Product Group:
Grounding

Arlington Industries GB5 – Frequently Asked Questions

1) Will the Arlington GB5 grounding bridge accept my #4 grounding electrode conductor and my satellite/cable ground wires at the same time?
Yes. The GB5 intersystem grounding bridge takes a grounding electrode conductor of #6 to #2, copper or aluminum, solid or stranded, and separately accepts intersystem bonding and grounding conductors from #14 to #4, again copper or aluminum, solid or stranded. So a #4 GEC lands on the electrode side and the coax, satellite and telecom bonding jumpers land on the four termination points. Equipment grounding conductors are the same #6 to #2 range as the electrode connection.
2) What is the difference between the Arlington GB5 and the GB5P?
Same bridge, one ordering difference. The GB5 is the standard version. The GB5P ships with a 1/2 inch PVC conduit adaptor, which is what you want when the bonding run comes up in 1/2 inch PVC and you need to terminate the conduit at the bridge. If you are surface mounting and bringing conductors in without conduit, the plain GB5 is the one to order.
3) How many communication services can one Arlington intersystem grounding bridge bond?
Four. The bridge carries four termination points, so cable TV, satellite, telephone and a broadband or antenna ground can each land on their own lug without doubling up or daisy chaining grounds between services. If a building has more than four services coming in, you need a second bridge bonded into the same electrode system.
4) Is the Arlington GB5 grounding bridge listed for use by an electrical inspector?
It carries a cULus listing, which is third party safety verification recognized in both the US and Canada. That listing plus the intersystem bonding function is what an inspector is looking for at the service when low voltage services need a bonding point.
5) Does the Arlington grounding bridge replace running a separate ground rod for the cable and satellite installers?
That is exactly what it is for. The bridge provides bonding between the power grounding system and the communication grounding systems, giving the low voltage trades a single accessible point tied to the building's grounding electrode instead of each service driving its own rod. Bonding them to one point is what keeps the systems at the same potential.
6) Can the intersystem grounding bridge be mounted outdoors on the meter or service side of a house?
The bridge body is zinc and the cover is a paintable plastic, which is a corrosion resistant combination built for exterior service equipment locations. The cover protects the terminations from the weather and can be painted to match siding or the meter enclosure. Silver finish under the cover.
7) Do I have to cut and strip the bonding wire to land it on the Arlington GB5, or can I lay it in?
Lay-in lugs. The conductor drops into the open lug and you tighten it down, so a continuous unbroken bonding conductor can pass through without being cut, and adding a service later does not mean re-terminating the existing grounds. That is the practical difference between this and a lug you have to thread a wire end into.
8) My bonding conductor is #12 telephone ground wire. Is that too small for the Arlington GB5?
No, it lands fine. The intersystem bonding terminations are rated down to #14, so #12 and #10 telecom and coax bonding jumpers are within range. The lower limit only becomes a problem below #14. The upper limit on those points is #4.
9) How is the Arlington GB5 grounding bridge packaged for a contractor buying quantity?
It sells as a single piece, and the standard manufacturer carton is 10 pieces. Made in the United States.
