Arlington Industries ONE-BOX® ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$27.15

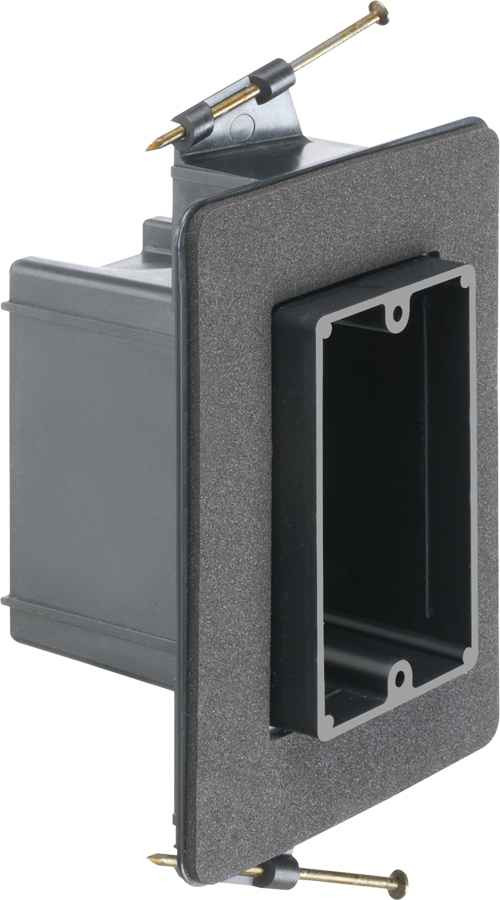

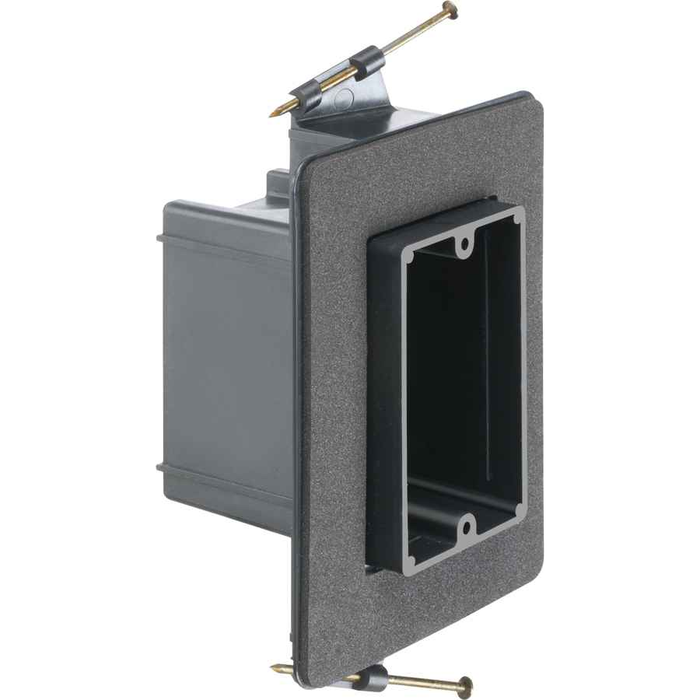

Arlington Industries ONE-BOX® Vapor Box with Air Infiltration Protection and 2-Hour Fire Rating - Black Plastic

Arlington Industries ONE-BOX® Vapor Box with Air Infiltration Protection and 2-Hour Fire Rating - Black Plastic

(No reviews yet) Write a Review

Model: F103F

In Stock (leaves warehouse same day if ordered before 3pm ET)

$27.15
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Arlington Industries ONE-BOX® Vapor Box with Air Infiltration Protection and 2-Hour Fire Rating

Professional fire-rated electrical box with superior air infiltration protection

Arlington Industries ONE-BOX® Vapor Box delivers professional-grade protection for electrical devices with integrated air infiltration barriers and certified 2-hour fire rating. This UL-listed black plastic enclosure provides reliable performance for applications requiring enhanced fire safety and air sealing capabilities, ensuring code compliance and long-term durability in demanding installations.

Professional Features & Benefits

  • 2-Hour Fire Rating: Provides extended fire protection for critical electrical connections and enhanced building safety compliance.
  • Air Infiltration Protection: Integrated vapor barrier design prevents unwanted air movement and improves energy efficiency in building envelope applications.
  • UL Listed: Certified safety and performance standards ensure reliable operation and code compliance for professional installations.
  • Durable Plastic Construction: Engineered plastic material offers corrosion resistance and consistent performance in various environmental conditions.
  • Black Finish: Professional appearance integrates seamlessly with standard electrical components and device installations.
  • ONE-BOX® Design: Arlington's proven enclosure platform provides reliable mounting and connection solutions for electrical devices.
  • Made in USA: Domestic manufacturing ensures consistent quality control and reliable product availability for professional contractors.

Technical Specifications

  • Color: Black
  • Country Of Origin: United States
  • Listing: UL
  • Material S : Plastic
  • Usage: Protects Against Air Infiltration

Professional Applications

  • Commercial Building Electrical Systems
  • Residential Fire-Rated Assemblies
  • Multi-Unit Housing Projects
  • Professional Office Buildings
  • Retail and Commercial Facilities
  • Educational and Institutional Buildings
  • Healthcare Facility Electrical Installations

Why Choose Arlington Industries Quality?

Arlington Industries delivers proven reliability through UL-listed products manufactured in the United States with consistent quality control. The durable plastic construction and 2-hour fire rating provide long-term performance and safety compliance, making this vapor box an ideal choice for professional electrical contractors requiring dependable air infiltration protection and fire safety in critical applications.

Manufacturer Resources

Spec Sheet

Product Specs

Country Of Origin:
United States
Listing:
UL
Department:
Electrical
Product Type:
Junction Box
Product Category:
Enclosures & Boxes
Product Color:
Black
Product Material:
Plastic
Product Group:
Conduit Fittings
Product Usage:
Protects Against Air Infiltration
Product Subgroup:
Electrical

Arlington Industries F103F – Frequently Asked Questions

1) What is an Arlington ONE-BOX vapor box actually for, and do I still need a separate poly boot?
The Arlington ONE-BOX is a plastic device box with the air infiltration barrier built into the box itself, so you are not wrapping the back of a standard box with poly and taping it off. Its stated purpose is protecting against air infiltration, which is what keeps conditioned air from moving through the device opening in an exterior wall or a ceiling below an unconditioned attic. On a job where the envelope gets blower-door tested, that means one part at rough-in instead of a box plus a sealing boot plus tape.
2) Can I use an Arlington F101F box in a 2-hour fire rated wall assembly?
Yes. The ONE-BOX vapor box carries a 2-hour fire rating and is UL listed, which is what lets it go into a rated wall or ceiling assembly without a separate putty pad or box insert. That is the difference between it and an ordinary plastic new-work device box, which has no rating and has to be pulled or wrapped when an inspector walks a rated corridor.
3) What is the difference between the nail-on and screw-on Arlington ONE-BOX vapor boxes?
Two mounting styles cover two situations. The nail-on versions (FN101F, FN102F, FN103F) mount straight to a stud at rough-in, which is the fast option on new wood framing. The screw-on versions (F101F, F102F, F103F) fasten with screws, which is what you want when you are setting to a steel stud, adjusting depth against varying drywall thickness, or working somewhere a hammer swing is awkward. Electrically and in rating they are the same box.
4) Which Arlington ONE-BOX part number do I order for a two-gang or three-gang device?
Gang count is in the part number. Screw-on: F101F single gang, F102F two gang, F103F three gang. Nail-on: FN101F single, FN102F two, FN103F three. So a two-gang switch bank on wood framing at an exterior wall is FN102F; the same opening on steel studs is F102F.
5) Is there a four-gang version of the Arlington ONE-BOX fire rated vapor box?
No. The fire-rated ONE-BOX vapor box runs one, two, and three gang only, in both nail-on and screw-on. For a four-gang or larger opening in a rated envelope wall you need a different approach, not a wider version of this box.
6) Can a metal box be used instead where I need air sealing on an exterior wall?
A standard metal box gives you no air seal and no vapor control at the device opening, so it has to be paired with a sealing boot or caulked and taped at the rough-in. The Arlington ONE-BOX is plastic with the air infiltration protection integral to the box, so the sealing step is already handled. Where the wall is also a 2-hour rated assembly, the ONE-BOX carries that rating and is UL listed.
7) Are Arlington ONE-BOX vapor boxes made in the USA?
Yes, the ONE-BOX vapor boxes are manufactured in the United States. On federal, state, and institutional work with domestic sourcing language in the spec, that is the line the submittal needs.
8) Will a black plastic vapor box show through a device plate?
The ONE-BOX vapor box is black, and that is the only color it comes in. Once the device and plate are on, the box body sits behind the drywall and the color is not a finish decision, so matching it to a white or ivory device is not something you need to solve.
How fast can I get the Arlington Industries F103F delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Arlington Industries F103F come with a warranty?
Absolutely. The Arlington Industries F103F is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Arlington Industries F103F?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Arlington Industries F103F from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
