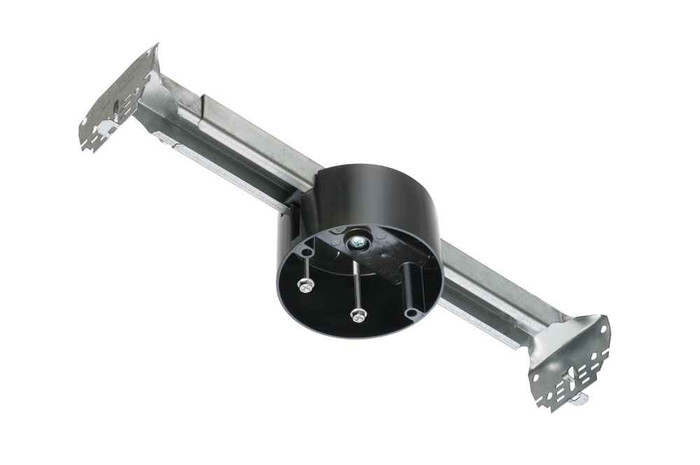

Arlington Industries Steel Adjustable Fan and Fixture Mounting Bracket with Plastic Box - 2 Hour Fire Rated - 70 lb Fan/90 lb Fixture Load Rating

Arlington Industries Steel Adjustable Fan and Fixture Mounting Bracket with Plastic Box - 2 Hour Fire Rated

Professional fire-rated mounting solution for ceiling fans and fixtures

The Arlington Industries Steel Adjustable Fan and Fixture Mounting Bracket delivers reliable support for ceiling fans and fixtures with 2-hour fire rating protection. This professional-grade mounting system features adjustable steel construction with plastic box, accommodating ceiling thickness up to 1-1/4" while providing UL-rated load capacity of 70 lb for fans and 90 lb for fixtures at 24" on center spacing.

Professional Features & Benefits

• UL Rating: 70 lb fan and 90 lb fixture capacity at 24" o.c. ensures safe installation for a wide range of ceiling-mounted equipment
• 2-Hour Fire Rating: Provides critical fire protection compliance for commercial and residential applications requiring enhanced safety standards
• Adjustable Design: Accommodates ceiling thickness up to 1-1/4" for versatile installation in various construction types
• Steel Construction: Durable steel bracket with plastic box combination delivers long-lasting structural integrity and reliability
• UL Listing: Third-party safety certification ensures compliance with electrical and building code requirements
• 23.0 cu. in. Trade Size: Provides adequate wiring space for proper electrical connections and code compliance

Technical Specifications

• Ceiling Thickness: Adjustable up to 1-1/4"
• Color: Black
• Country Of Origin: United States
• Height: 2.548"
• Listing: UL
• Load Rating: UL rating: 70 lb fan, 90 lb fixture at 24" o.c.;
• Material S : Plastic, Steel
• Standard Packaging: 10pcs
• Trade Size: 23.0 cu. in.
• Unit Packaging: 1pc
• Weight: 1.460 lbs/each
• Width: 4.233"

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential ceiling fan and fixture installations requiring fire rating compliance
• Commercial buildings with fire-rated ceiling assemblies
• Multi-unit residential properties with enhanced safety requirements
• Professional offices and retail establishments
• Educational and healthcare facilities
• Light industrial applications requiring UL-listed mounting solutions

Why Choose Arlington Industries Quality?

Arlington Industries delivers professional-grade electrical solutions with UL listing certification and domestic manufacturing quality. This fire-rated mounting bracket combines durable steel construction with reliable load ratings, backed by comprehensive safety testing and compliance with industry standards for long-term performance and peace of mind.
