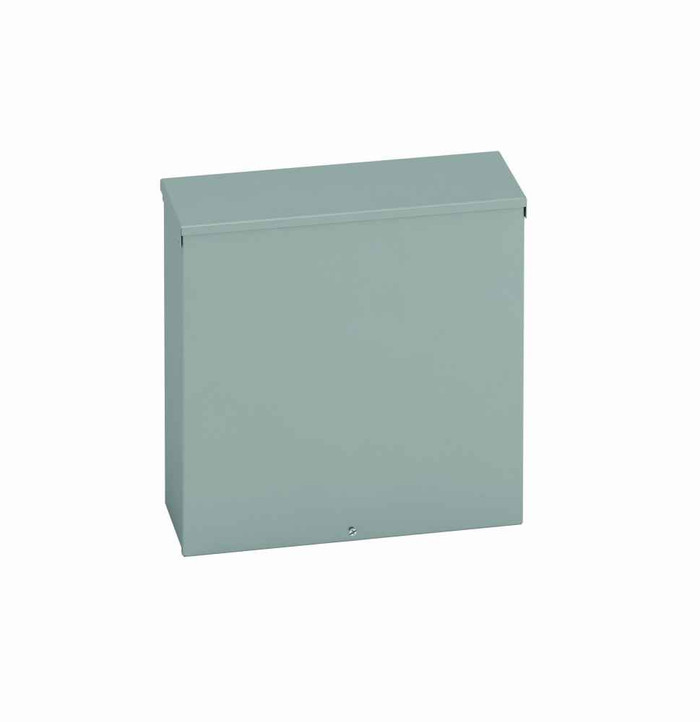

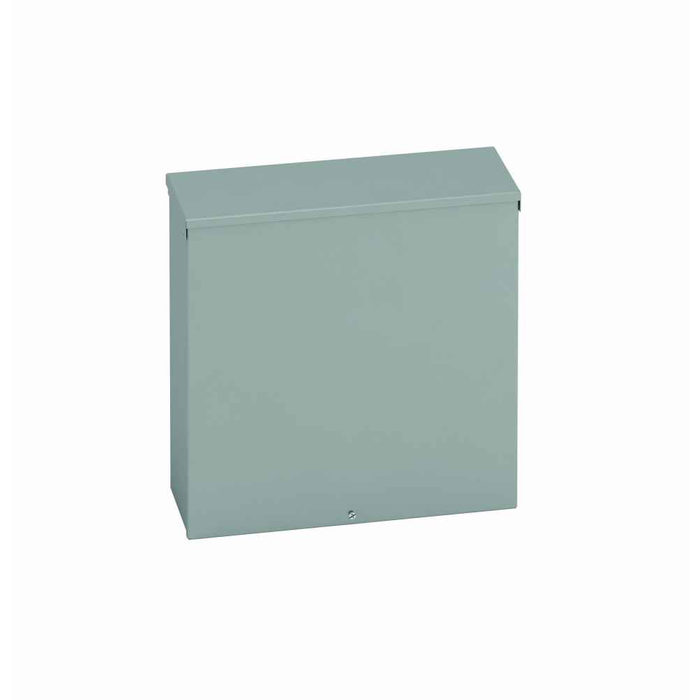

Eaton B-Line series Type 3/3R junction boxes
Manufacturer Resources
Product Specs
- Certifications:
- UL 50
- Country Of Origin:
- United States
- Cover Type:
- Screw
- Finish Color:
- Unfinished
- Mounting Hole Details:
- Embossed thru holes
- Nema Rating:
- 3R
- Product Height:
- 24 IN
- Product Length Depth:
- 6 IN
- Product Weight:
- 40.2 LB
- Product Width:
- 24 IN
- Special Features:
- Rainhood,embossed mounting provisions,platedscrews
- Wall Thickness:
- 14 gauge
- Department:
- Electrical
- Product Model:
- RTSCGV NK enclosure
- Product Color:
- Grey
- Mounting Method:
- Surface
- Product Style:
- Medium single door
- Product Material:
- Galvanized steel
B-LINE 24246 RTSCGV NK – Frequently Asked Questions
1) Is the B-Line 24246 RTSCGV NK enclosure rated for outdoor use?
The 24246 RTSCGV NK carries a NEMA 3R rating, which covers outdoor installations against rain, sleet and snow. It also ships with a rainhood over the door to shed water away from the seam. For washdown or hosedown areas you need a 4 or 4X enclosure instead, not a 3R.
2) What are the box dimensions on the B-Line 24246 junction box?
24 inches high by 24 inches wide with a 6 inch depth, which is where the 24246 designation comes from. The 6 inch depth is the number to check first: it limits how much gutter space you have behind terminal blocks or breakers mounted on a back panel.
3) Does the 24246 RTSCGV NK come with conduit knockouts?
No. The NK suffix means no knockouts, so the box arrives with blank walls and you drill or punch your own conduit entries where the job needs them. On a 3R enclosure, keep entries on the sides or bottom and use rain tight fittings so you do not compromise the rating. If you would rather have factory holes, order a knockout version rather than the NK.
4) How is this junction box mounted, and are mounting holes provided?
Surface mount, with embossed thru holes formed into the back of the enclosure so the fasteners stand the box slightly off the wall. Fasteners and struts are not part of the box, so pick up your own lags, unistrut or channel to suit the substrate. At 40.2 pounds empty, plan a two person lift or a strut rack for an overhead run.
5) How does the cover open on the B-Line 24246 enclosure, hinged or screw-on?
Screw cover with plated screws, not a hinged latching door. That is fine for a pull box or a junction point you open rarely, but if the box houses controls a tech needs into weekly, a hinged door enclosure is the better choice. Allow clearance around all four sides so the cover can be lifted straight off.
6) What gauge steel is the B-Line 24246 RTSCGV box, and is it listed?
14 gauge galvanized steel, and it is built to UL 50 for enclosures. That gauge and listing is what institutional and MRO specs usually want on a 24 x 24 outdoor box, since a thinner wall will oil-can when you tighten fittings on a span that wide.
7) Is the B-Line 24246 RTSCGV NK made in the USA?
Country of origin is the US, which matters if you are bidding public work with domestic sourcing language in the contract. The exact part to quote is B-Line 24246 RTSCGV NK.
