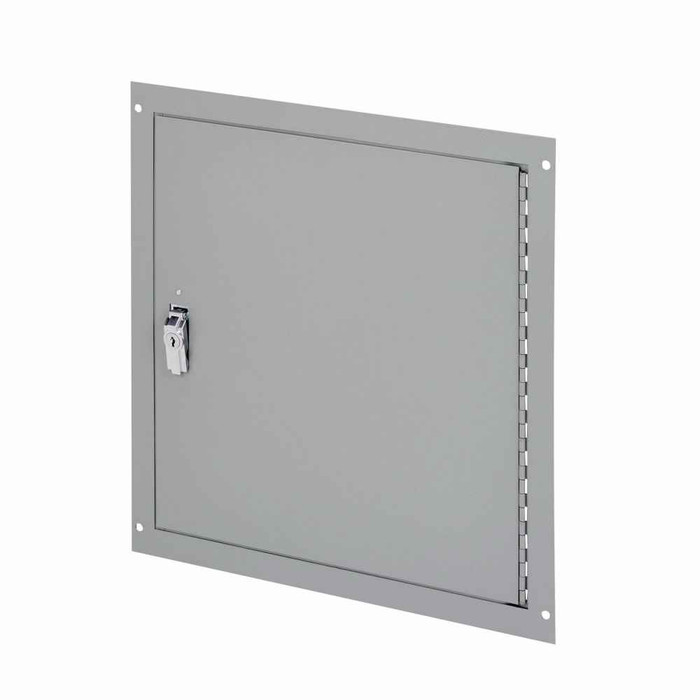

B-Line 3630 TCS Eaton series utility cabinets, NEMA 1, ANSI 61 gray, Protects against contact with enclosed equipment, Type 1 telephone termination cabinet, Utility cabinets, Type 1 telephone termination cabinet/surface mount, 12 gauge

No. The 3630 TCS is rated NEMA 1, which is an indoor enclosure type that guards personnel against contact with enclosed equipment and keeps out falling dirt. It offers no protection against rain, hose-down, dust or corrosive atmospheres, so keep it in a dry conditioned space like a telecom closet, electrical room or back-of-house corridor. For an exterior wall or a wet location you need a gasketed Type 3R, 4 or 4X enclosure instead.

Plan on a 31 x 25 in footprint on the wall (31 in height, 25 in width) with 31 in for the length/depth dimension, and figure 28 lb bare. One person can hold it, but on drywall you want the back box landing on studs or a plywood backboard, which is standard practice in a telecom closet anyway.

Surface mount. The 3630 TCS hangs on the face of the wall, so no wall cavity or trim ring work is involved and you are not cutting into fire-rated construction. If the architect called for a flush or semi-flush cabinet, this is not the part.

Steel body in 12 gauge, painted ANSI 61 gray. That is the standard light gray used on switchgear and panelboards, so it blends with the rest of the gear in an electrical or telecom room without repainting.

A telephone termination cabinet like the Eaton B-Line 3630 TCS is built for exactly that job: a large, open, hinged-door steel box you can mount blocks and terminations in and come back to for service. A pull or junction box is sized for splicing and routing conductors, not for housing terminations you need regular access to. If the run only needs a pull point, a box is cheaper and smaller; if it is the demarcation or distribution point for the building's phone cable, the utility cabinet is the correct enclosure.

Order it as B-Line 3630 TCS. That single catalog number covers the cabinet as described: NEMA 1, steel, ANSI 61 gray, surface mount, telephone termination type. There are no finish or size options to specify with it.

The cabinet is built to NEMA, and the enclosure type is NEMA 1. If your drawing calls out a Type 1 indoor telephone termination cabinet, this meets that callout. Any other rating on the submittal, such as a fire or seismic requirement, is not covered by that designation.

The cabinet is a 12 gauge steel enclosure, and 12 gauge is heavy enough to punch or drill in the field for conduit hubs and connectors without deforming the box. That is the normal way these utility cabinets get fitted for the conduit layout on the job, since the entries you need depend on how the cable comes into the room.
