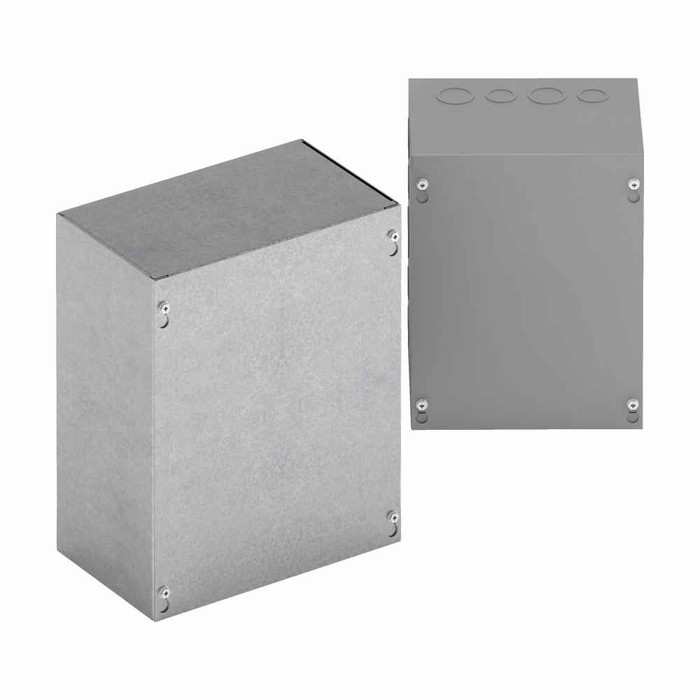

Eaton B-Line series Type 1 junction boxes
Manufacturer Resources
Product Specs
- Certifications:
- UL 50
- Country Of Origin:
- United States
- Cover Type:
- Screw
- Finish Color:
- Unfinished
- Mounting Hole Details:
- Thru holes
- Nema Rating:
- 1
- Product Height:
- 48 IN
- Product Length Depth:
- 6 IN
- Product Weight:
- 129.2 LB
- Product Width:
- 36 IN
- Special Features:
- Keyhole slots on cover, plated screws
- Wall Thickness:
- 16 gauge
- Department:
- Electrical
- Product Model:
- SCGV NK enclosure
- Product Color:
- Grey
- Mounting Method:
- Surface
- Product Style:
- Medium single door
- Product Material:
- Galvanized steel
B-LINE 48366 SCGV NK – Frequently Asked Questions
1) What size is the B-Line 48366 SCGV NK junction box?
The 48366 SCGV NK enclosure is 48 inches high, 36 inches wide and 6 inches deep, which is where the catalog number comes from. It weighs 129.2 lb, so plan on two people and appropriate anchors for the surface mount.
2) Can this Eaton B-Line Type 1 junction box be installed outdoors or in a washdown area?
No. A NEMA Type 1 enclosure is for indoor use only, giving protection against incidental contact with the enclosed equipment and falling dirt. It is not rated against rain, hose-down, dust or oil. For a wet or outdoor location you need a Type 3R, 4 or 4X enclosure instead.
3) Does the B-Line 48366 SCGV NK come with knockouts for conduit?
No, it is a no-knockout box (the NK in the catalog number). The walls and cover come blind, so you punch or hole-saw your own openings exactly where the conduit runs land. Steel is 16 gauge, so a standard knockout punch handles it.
4) Is 6 inches of depth enough for pulling and splicing large feeders?
The 48366 SCGV NK gives 6 inches of interior depth behind a 48 by 36 inch face. That is a pull and splice box footprint, not a gear enclosure, so it suits large-radius conductor pulls and splices laid across the back plane rather than mounted equipment. Size your box against NEC pull and junction box bending-space rules for the largest raceway you are landing before you commit to the 6 inch depth.
5) Is the cover on the 48366 SCGV NK hinged or a screw cover?
It is a screw cover, not a hinged door. The cover has keyhole slots so one person can hang it on partially driven screws and then tighten the rest, and the screws are plated. Where the enclosure needs frequent access, a hinged-door enclosure is the better choice.
6) How does this junction box mount to the wall?
Surface mounting through thru holes in the back of the enclosure. There is no flush or recessed trim provision. At 129.2 lb empty, fasten into studs, strut or masonry anchors rated for the load plus conductors.
7) What is the 48366 SCGV NK enclosure made of, and does it need painting?
The body is galvanized steel in 16 gauge, supplied unfinished in a grey galvanized appearance. There is no paint or powder coat on it, so it is normally installed as-is in mechanical and electrical rooms. If the spec calls for a painted finish, plan to prime and paint in the field or specify a painted enclosure.
8) Is the Eaton B-Line 48366 SCGV NK UL listed?
It is built to UL 50, the standard covering enclosures for electrical equipment. It is manufactured in the US.
