B-Line B24SH-120 PLN Eaton ser...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$73.20
$27.14

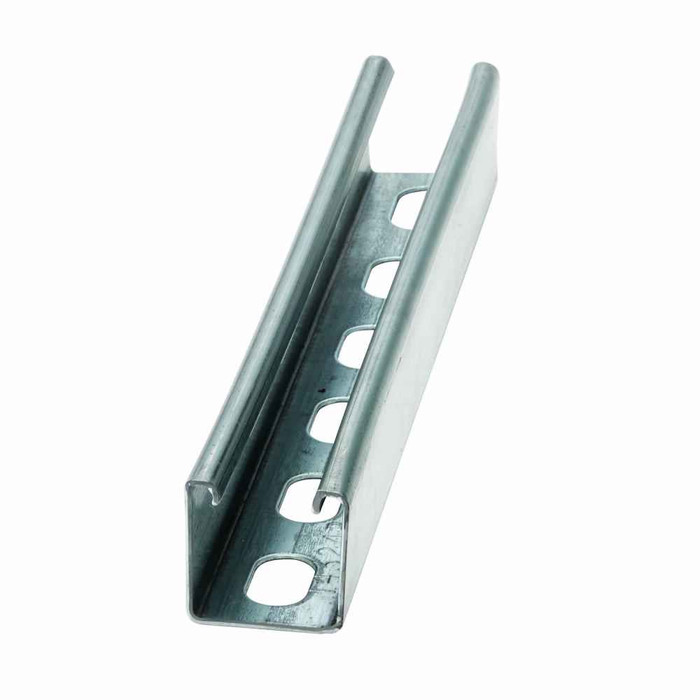

B-Line B24SH-120 PLN Eaton series strut channel, 1.62" channel height, 120" channel length, 1.62" channel width, Steel, 14 Gauge, SH hole pattern, B24 channel type, Plain

B-Line B24SH-120 PLN Eaton series strut channel, 1.62" channel height, 120" channel length, 1.62" channel width, Steel, 14 Gauge, SH hole pattern, B24 channel type, Plain

(No reviews yet) Write a Review

Model: B24SH-120 PLN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$73.20
$27.14
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut channel, 1.62" channel height, 120" channel length, 1.62" channel width, Steel, 14 Gauge, SH hole pattern, B24 channel type, Plain

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Channel Type:
B24
Hole Pattern:
SH
Material Gauge:
14 Gauge
Product Height:
1.62 IN
Product Length Depth:
120 IN
Product Weight:
13.4 LB
Product Width:
1.62 IN
Department:
Electrical
Product Finish:
Plain
Product Material:
Steel

B-LINE B24SH-120 PLN – Frequently Asked Questions

1) Is the B-Line B24SH-120 strut channel a full 1-5/8 inch profile?
Yes. The B24 channel measures 1.62 inches high by 1.62 inches wide, which is the standard 1-5/8 by 1-5/8 inch strut profile the trade works with. Standard 1-5/8 strut fittings, spring nuts, and clamps sized for that profile drop straight into the channel opening.
2) Does plain finish strut channel work outdoors or in a wet area?
No. Plain finish is bare, uncoated steel with no zinc or paint protection, so it is for dry interior use only. Run it outdoors, in a parking garage, or anywhere with washdown or condensation and it will rust. For those locations specify a pre-galvanized or hot-dip galvanized B24 instead.
3) What does the SH hole pattern mean on B-Line B24 strut channel?
SH is B-Line's slotted-hole designation, so the B24SH-120 comes with slots punched through the back of the channel rather than a solid, unpunched back. That lets you through-bolt or lag the strut to structure at existing slot locations without field drilling. If you want an unpunched back for a cleaner run or full strength along the web, you want the plain-back version of the B24 instead, not the SH.
4) Is 14 gauge strut channel heavy enough for pipe trapeze hangers?
14 gauge is the lighter-duty strut thickness, thinner than the 12 gauge sections used for heavy runs. On a B24 double channel the back-to-back construction makes up some of that, and 14 gauge is common for conduit racks, small-diameter pipe trapezes, and equipment supports on short spans. For long spans or heavy mechanical piping, size up to a 12 gauge section and check your span load against the engineer's numbers.
5) What part number do I order for B-Line 10 foot plain 14 gauge double strut?
Order Eaton B-Line B24SH-120 PLN. The number breaks down as B24 channel type, SH slotted hole pattern, 120 inch length, PLN for plain finish, in 14 gauge steel.
6) Do strut nuts and fittings from other brands fit B-Line B24 channel?
The channel opening on the B24 follows the 1-5/8 by 1-5/8 inch strut standard, so channel nuts, spring nuts, and fittings made for 1-5/8 inch strut engage the same inturned lips regardless of who made them. What does not interchange is anything sized for the 13/16 inch shallow strut profile, so check the depth of what you already have on the job before mixing.
