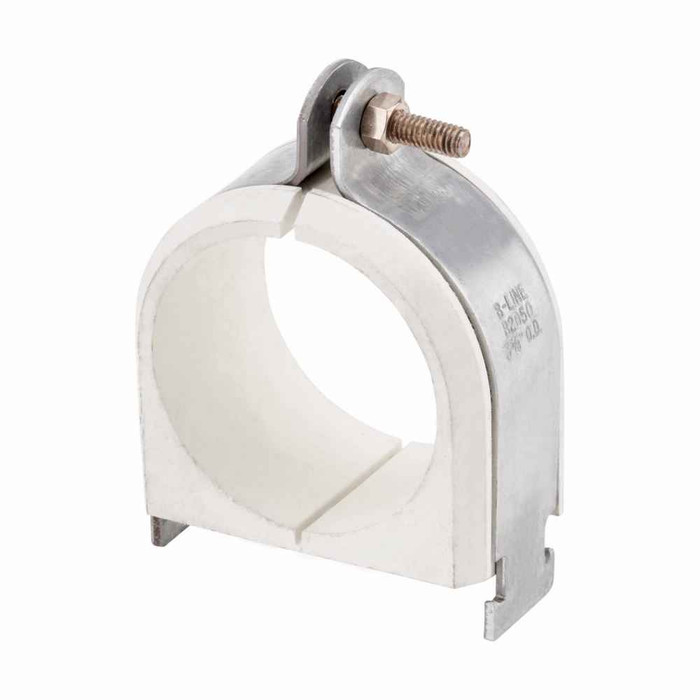

B4079ZN
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Diameter:
- 2.75 in
- Product Height:
- 3.62 in
- Product Weight:
- 1.09 lb
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:
- Insuclamp cable clamps
- Product Finish:
- Electro-plated
- Product Details:
- Insuclamp cable clamps
- Product Material:
- Steel
B-LINE B4079ZN – Frequently Asked Questions
1) What size cable does the B-Line B4079ZN Insuclamp hold?
The B4079ZN is an Insuclamp cable clamp built around a 2.75 inch diameter, so it is sized for large-diameter feeder or service cable in that range rather than small branch-circuit wiring. Overall height of the clamp assembly is 3.62 inches, which is the figure to check against your strut or structural standoff clearance.
2) Is the B-Line B4079ZN cable clamp steel or aluminum?
Steel, with an electro-plated finish. That makes it a general indoor or protected-location clamp; for continuously wet, coastal, or corrosive process areas you want a hot-dip galvanized or stainless clamp instead of an electro-plated one.
3) What is the part number and MPN for the B-Line Insuclamp I need to order?
Order it as B-Line B4079ZN. That single model number is the manufacturer part number as well, so there is no separate size or finish suffix to specify: the ZN designation already covers the electro-plated steel version.
4) Why use an Insuclamp instead of a plain steel one-hole strap for large power cable?
An Insuclamp is an insulated-liner cable clamp, so it grips the cable jacket without the metal-to-jacket bearing you get from a bare strap. On single-conductor power cable that also avoids clamping the conductor in a continuous ferrous loop. A plain strap is fine for conduit; for jacketed feeder cable at 2.75 inch diameter, the Insuclamp is the right family.
5) How much does a B4079ZN cable clamp weigh for a hanger load calculation?
Each B4079ZN clamp weighs 1.09 lb. On a long cable run with clamps at regular intervals, that adds up quickly on the supporting strut or trapeze, so include it with the cable weight when you size the hangers.
