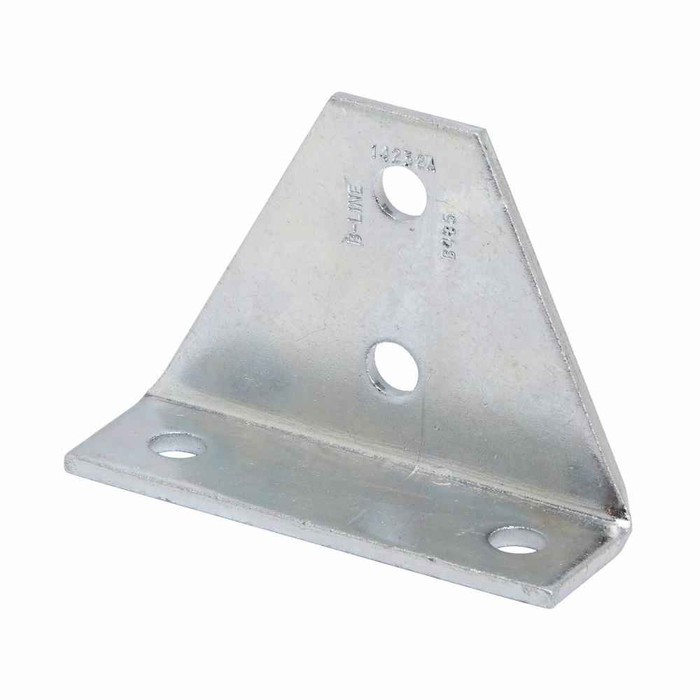

B485HDG
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- 5.37 in
- Product Length Depth:
- 1.87 in
- Product Weight:
- 1.48 lb
- Product Width:
- 3.93 in
- Department:
- Electrical
- Product Type:
- Four hole gussetted shelf angle
- Product Finish:
- Hot-dipped galvanized
- Product Details:
- Four hole gussetted shelf angle
- Product Material:
- Steel
B-LINE B485HDG – Frequently Asked Questions
1) Is the B-Line B485HDG shelf angle rated for outdoor or wet locations?
The B485HDG is steel with a hot-dipped galvanized finish, which is the coating normally specified for outdoor, damp, and corrosive-atmosphere runs rather than plain or electro-zinc plated fittings. If you are bracketing strut off a wall outside, on a rooftop, or in a wash-down area, the HDG finish is the reason to pick this one over a plated equivalent.
2) How many bolt holes does the B-Line B485HDG have, and does it come with hardware?
Four holes, two per leg, as a four hole gusseted shelf angle. The bracket is supplied as the angle itself, so order your channel nuts, bolts, and any wall anchors separately. Match the fastener plating to the bracket: with a hot-dipped galvanized angle you want galvanized or stainless hardware, not plain steel, or the fasteners will be the first thing to rust.
3) What size is the B-Line B485HDG gusseted shelf angle bracket?
Overall it measures 5.37 by 3.93 by 1.87 inches and weighs 1.48 lb. Use those numbers to check your clearance before you order, particularly the 1.87 inch dimension where the bracket has to sit between a wall face and whatever you are hanging.
4) What is a gusseted shelf angle used for in a strut channel system?
A shelf angle like the B-Line B485HDG is a 90 degree bracket that ties a horizontal member back to a wall or vertical channel. The gusset is the triangular web across the corner, and it is what keeps the angle from opening up under load, so a gusseted version is the one you reach for when the bracket carries weight rather than just locating a run. The B485HDG is the four hole version.
5) Is the part number B485HDG the same as B485 without the suffix?
The HDG on the end is the finish code, not a different bracket shape. B485HDG is the hot-dipped galvanized version of the four hole gusseted shelf angle; the bare B485 designation refers to the same angle in a different finish. If your drawing calls for exterior or corrosive-duty fittings, HDG is the one to order.
