B602CZN
Manufacturer Resources
Product Specs
- Beam Flange Width:
- 7.625 in
- Beam Thickness:
- .875 in
- Certifications:
- cULus Listed
- Load Capacity:
- 1200 lb
- Product Height:
- 5.625 in
- Product Length Depth:
- 10.375 in
- Product Weight:
- 12 lb
- Product Width:
- 1.75 in
- Special Features:
- Used with (B451), (B213) support,(B213) beam clamp
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:

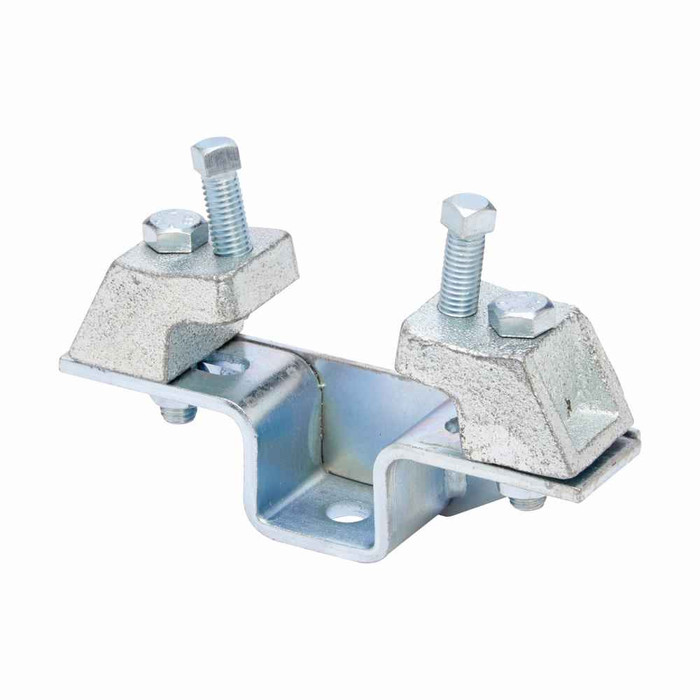

- Beam clamp with gusset assembly
- Product Details:
- Beam clamp with gusset assembly
- Product Material:
- Malleable iron
B-LINE B602CZN – Frequently Asked Questions
1) What size beam flange will the B-Line B602CZN beam clamp fit?
The B602CZN is sized for a beam flange up to 7.625 inches wide and .875 inch thick. If your flange is wider or thicker than that, this clamp won't seat properly and you need a larger-jaw clamp. Measure the flange at the point you intend to hang from, not at the web, since flange thickness tapers on some rolled shapes.
2) How much weight can the B602CZN beam clamp hold?
Rated at 1200 lb load capacity. That is the clamp assembly's rating only, so the beam, the rod, and whatever hardware you hang below it all have to be rated for the same or more. For heavier runs of pipe or cable tray, split the load over additional clamps rather than exceeding the single-point figure.
3) Is the B-Line B602CZN beam clamp UL listed for electrical support work?
It carries a cULus Listing, which covers it for both the US and Canada. That matters on institutional and government jobs where the inspector wants a listed support component rather than a field-fabricated bracket.
4) What other B-Line parts does the B602CZN beam clamp work with?
It is meant to be used with the B451 and the B213 support, and with the B213 beam clamp. Order those separately, they are not part of the clamp assembly. If you are building out a hanger run, sort the mating support first, then confirm the rod size you will thread through it.
5) How much room does the B602CZN beam clamp take up once installed?
The assembly measures 10.375 inches in length/depth, 5.625 inches high and 1.75 inches wide. Depth is the number that usually bites you: in a tight ceiling cavity or against a fire-rated deck, check you have the clearance to get the jaw over the flange and still turn the hardware.
6) What is the B602CZN made of, and will it hold up in a damp or unheated space?
The body is malleable iron, which is the standard material for structural beam clamps because it takes the clamping load without cracking the way gray iron can. Malleable iron is a good fit for mechanical rooms, parking structures and unconditioned plenums where a stamped steel bracket would be marginal.
7) Is the B602CZN heavy enough to need two people to install overhead?
Each unit weighs 12 lb. That is a meaningful overhead lift on a ladder or lift basket, so plan on handing it up rather than carrying it one-handed, and account for it when you are ordering a full pallet's worth for a large run.
8) What is the manufacturer part number to order the B-Line gusseted beam clamp?
Order it as B-Line B602CZN. That single part number covers the clamp with gusset assembly as supplied, there are no finish or size options to specify on it.
