B613HDG
Manufacturer Resources
Product Specs
- Certifications:
- cULus Listed
- Load Capacity:
- 800 lb
- Product Height:
- 3.5 in
- Product Length Depth:
- 3.5 in
- Product Weight:
- 1 lb
- Product Width:
- 1.625 in
- Set Screw Size:
- 3/8"
- Special Features:
- Used with (B52) and (B54) channel
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Supports
- Product Type:
- Column support for B22
- Product Details:
- Column support for B22
- Product Material:
- Steel
- Product Length:
- 3.5 in
B-LINE B613HDG – Frequently Asked Questions

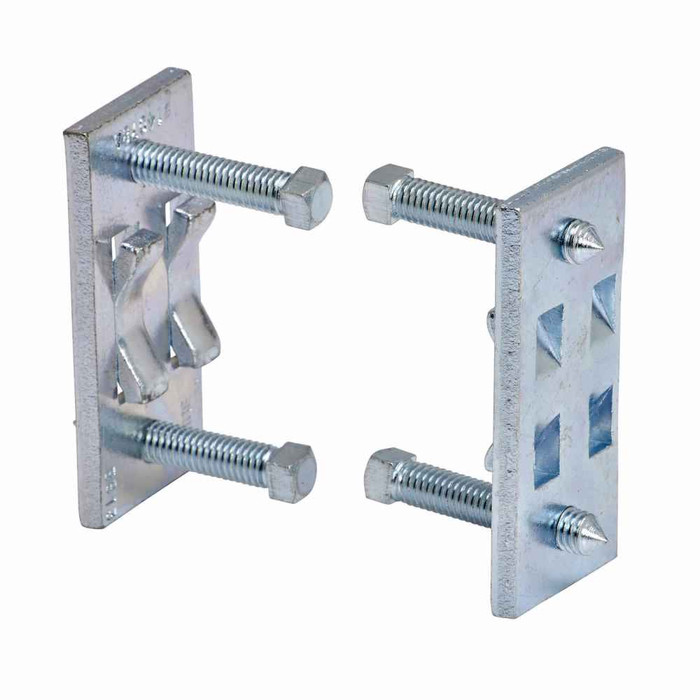

1) What does the B-Line B613HDG column support actually do?
The B613HDG is a steel column support for B22 strut, and it is also used with B52 and B54 channel. It brackets the channel run off a column or similar structural face so the strut can carry conduit, cable tray, or pipe hangers below it. Set screw size is 3/8 inch.
2) Will the B613HDG work on B52 or B54 strut, or is it only for B22?
Both. It is built as a column support for B22 channel and is also used with B52 and B54 channel. If your run is a different strut profile than those, this is not the fitting for it.
3) Is the B-Line B613HDG hot dip galvanized or plain steel?
The HDG suffix on B613HDG is the hot dip galvanized finish, over a steel body. That is the version to use outdoors, in parking structures, wash-down areas, and other damp or corrosive locations where plain electro-galvanized fittings rust out.
4) What size is the B613HDG fitting and how much does it weigh?
Height 3.5 inches, length/depth 3.5 inches, width 1.625 inches, and about 1 lb each. The 1.625 inch dimension matches standard 1-5/8 inch strut width, so it sits flush on the channel face without overhang.
5) Does the B613HDG come with the bolts to fasten it to the column?
What is defined with the fitting is a 3/8 inch set screw size. The anchors or through-bolts into the concrete, masonry, or steel column are sized to the structure and are ordered separately along with the channel itself.
