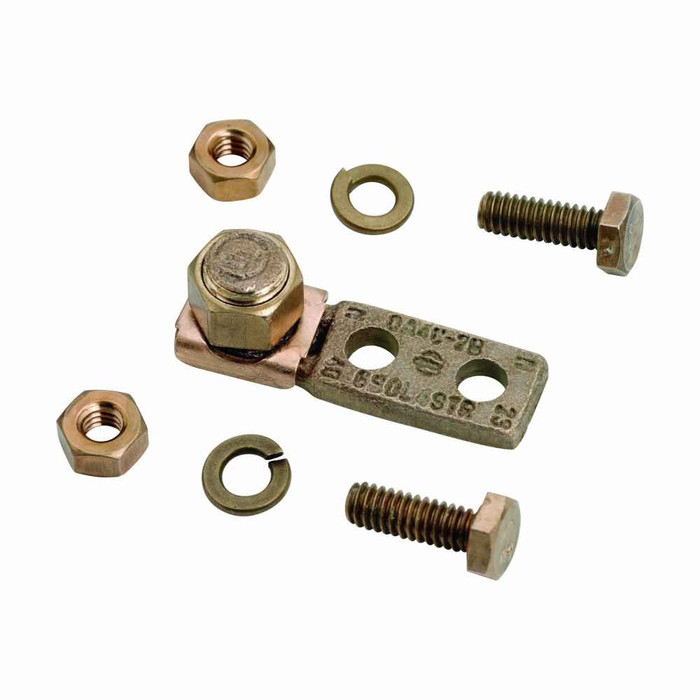

Eaton grounding lug, 0.7" height, 2" length, 0.5" width, For connection of electric wire to grounding bus, Copper, Copper alloy, Two-hole mechanical lug, Grounding accessories, Silicon bronze hardware, additional size available
Manufacturer Resources
Product Specs
- Application:
- Connection of electric wire to grounding bus
- Certifications:
- UL Listed
- Product Category:
- Grounding accessories
- Product Height:
- .7 in
- Product Length Depth:
- 2 in
- Product Weight:
- .07 lb
- Product Width:
- .5 in
- Special Features:
- Silicon bronze hardware,additional size available
- Department:
- Electrical
- Product Model:
- Two-hole mechanical lug
- Product Material:
- Copper alloy
B-LINE SB47802 – Frequently Asked Questions
1) Is the B-Line SB47802 grounding lug UL Listed for use in an electrical panel or ground bus?
The SB47802 two-hole mechanical lug is UL Listed. It's built for connecting an electric wire to a grounding bus, which is the application it's rated and sold for. For institutional and MRO work where the submittal has to show a listed grounding connector, that's the line item you need.
2) What is the B-Line SB47802 grounding lug made of, and can I use it on a copper ground bus?
Copper alloy body with silicon bronze hardware. That combination is what you want against a copper bus: the bronze bolt and pressure hardware won't set up the galvanic problem a plated steel fastener would in a damp or outdoor enclosure.
3) Does the B-Line SB47802 lug need to be crimped, or can I terminate it with hand tools?
Mechanical, not compression. The conductor goes in and is clamped by the setscrew hardware, so an electrician needs a hex or socket driver and a torque wrench, not a hydraulic crimper. That's the practical reason to spec a mechanical lug on a service call or a retrofit where nobody wants to haul a crimp head into a live room.
4) I need a bigger grounding lug than the B-Line SB47802 for a larger conductor. Is there another size?
Yes, the SB47802 is part of a range and an additional size is offered in the same two-hole silicon bronze configuration. If your conductor is larger than what this 2 inch body takes, order up within the family rather than forcing an oversize wire into this one.
5) Can I use the B-Line SB47802 as a general-purpose wire connector or splice?
No. This is a grounding accessory, made for landing an electric wire on a grounding bus. For a phase or neutral splice, or a tap in a wireway, use a connector rated for that duty instead. Using a grounding lug outside its stated application is the kind of substitution that fails an inspection.
6) What is the exact part number for the Eaton B-Line two-hole grounding lug?
The manufacturer part number is SB47802, an Eaton B-Line grounding lug. That's the number to quote to a distributor or put on a submittal, rather than describing it as a two-hole bronze lug, since B-Line carries several sizes in the same style.
