Spec Sheet
Product Specs
- Ansi Revenue Accuracy:
- C12.20 (0.5)
- Configuration:
- Standard energy
- Output:
- Pulse output only
- Separate Ground And Neutral Current:
- Combined
- Terminal Type:
- Screw Terminal
- Department:
- Electrical
- Product Length:
- 3.6 IN
- Product Height:
- 4.2 IN
- Product Weight:
- .62 LB
- Product Width:
- 2.3 IN
B-LINE IQ35MA11 – Frequently Asked Questions

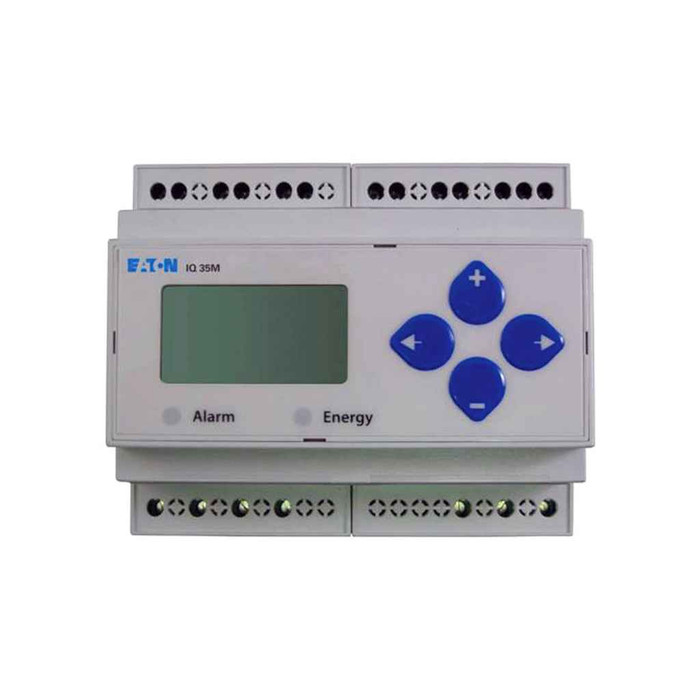

1) Does the Eaton IQ 35M meter (IQ35MA11) meet ANSI C12.20 revenue accuracy for tenant billing?
The IQ 35M, model IQ35MA11, is rated to ANSI C12.20 at the 0.5 accuracy class. That is the accuracy class submetering for tenant billing is normally specified at, so it suits multi-tenant and multi-family energy allocation work.
2) What kind of output does the Eaton IQ35MA11 energy meter have - can I connect it to a BAS over Modbus?
Pulse output only on the IQ35MA11. There is no serial or network communications port on this configuration, so it feeds a pulse-counting input on a BAS, datalogger, or totalizer. If your building automation system needs Modbus or Ethernet, this is not the right variant of the IQ 35M.
3) What type of terminations does the Eaton IQ35MA11 use for the CT and voltage leads?
Screw terminals. You land the voltage taps and current transformer leads directly under screws, so no crimped plugs or special connectors are needed, and field-installed CT leads can be trimmed to length.
4) Does the IQ 35M measure ground and neutral current separately?
No. On the IQ35MA11 the ground and neutral current measurement is combined, not separated. If your application requires discrete ground-fault current monitoring apart from neutral current, you need a meter configured for separate ground and neutral sensing.
5) Is the Eaton IQ35MA11 a power quality meter or just an energy meter?
It is configured as a standard energy enclosure with pulse output only, so it is an energy meter for kWh accumulation and billing, not a power quality analyzer. Harmonic analysis and waveform capture call for a higher-tier IQ meter.
6) Where do I find the wiring and CT selection details for Eaton meter IQ35MA11?
Eaton publishes a spec sheet specific to the IQ35MA11, linked from the product information, and that is where the wiring diagram and current transformer ratios for this model are laid out. Confirm CT ratio against your service size before ordering CTs separately, since they are not part of the meter.
