B-Line Eaton series accessorie...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$191.91

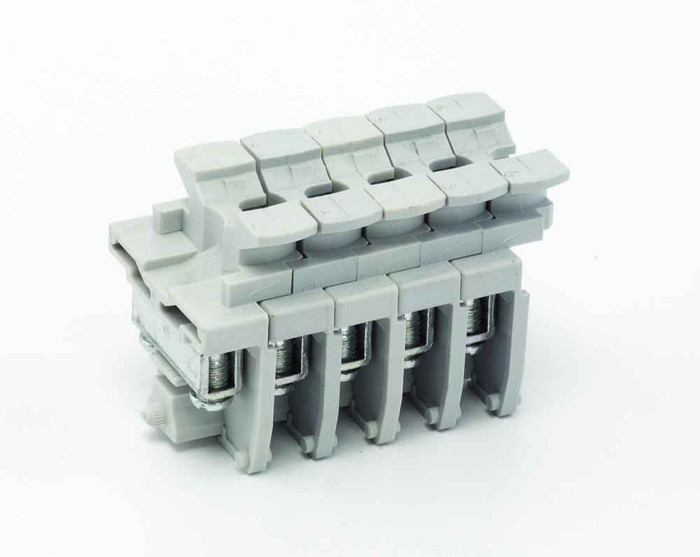

B-Line Eaton series accessories, 12, AW-14 series, Channel mount, Console accessories, #18-#8 medium-duty channel terminal block

B-Line Eaton series accessories, 12, AW-14 series, Channel mount, Console accessories, #18-#8 medium-duty channel terminal block

(No reviews yet) Write a Review

Model: CTB3005
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$191.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series accessories, NEMA 12, AW-14 series, Channel mount, Console accessories, #18-#8 medium-duty channel terminal block

Manufacturer Resources

Product Specs

Certifications:
UL Listed
Degree Of Protection:
NEMA 12
Product Category:
Console accessories
Product Height:
1.63 in
Product Length Depth:
1.5 in
Product Weight:
.067 lb
Product Width:
1.5 in
Department:
Electrical
Product Type:
Fiberglass accessories
Product Details:
Fiberglass accessories
Product Style:
AW-14 series
Product Length:
1.5 in

B-LINE CTB3005 – Frequently Asked Questions

1) What wire sizes does the Eaton B-Line CTB3005 channel terminal block accept?
The CTB3005 is a medium-duty channel terminal block rated for #18 through #8 conductors, so it covers everything from small control wiring up to #8 power conductors in one block. Model number is CTB3005.
2) Does the CTB3005 terminal block mount on channel or do I need a DIN rail?
It is a channel mount block, part of Eaton B-Line's AW-14 series console accessories. It seats on B-Line channel, not on DIN rail, so if your enclosure is built out with DIN rail you want a DIN-rail style block instead.
3) Can I use this terminal block in a NEMA 12 enclosure and is it UL Listed?
Yes on both counts. The CTB3005 carries a NEMA 12 degree of protection rating and is UL Listed, which is what an MRO or institutional spec usually calls for in a dust-tight, drip-tight industrial cabinet.
4) How much space does each CTB3005 block take up inside the panel?
Each block measures 1.63 in high, 1.5 in wide, and 1.5 in deep, and weighs .067 lb. Multiply the 1.5 in width by the number of poles you are ganging to work out the channel run you need, and leave the 1.63 in of vertical clearance above the channel.
5) Is the CTB3005 a heavy-duty or medium-duty terminal block?
Medium duty. The #18-#8 range is where it belongs, control and branch wiring rather than large feeders. If you are landing conductors larger than #8, this is the wrong block and you need a heavy-duty type.
6) Is this B-Line part the block itself or just a mounting accessory?
It is the terminal block, model CTB3005, not a bracket or filler. It is grouped with B-Line's fiberglass accessory line for console and channel builds, but the item you receive is the channel-mount terminal block.
7) Is CTB3005 sold as a single block or a strip of multiple poles?
CTB3005 is one model with a single configuration, and at .067 lb and 1.5 in wide it is an individual block. Order the quantity of poles you need and gang them along the channel.
