B-Line Eaton series box support fasteners, Wall studs, 1" Height, 1" Length, 1" Width, 0.137lbs, Metal stud size: 3.63", 2.5", Box support brackets, P

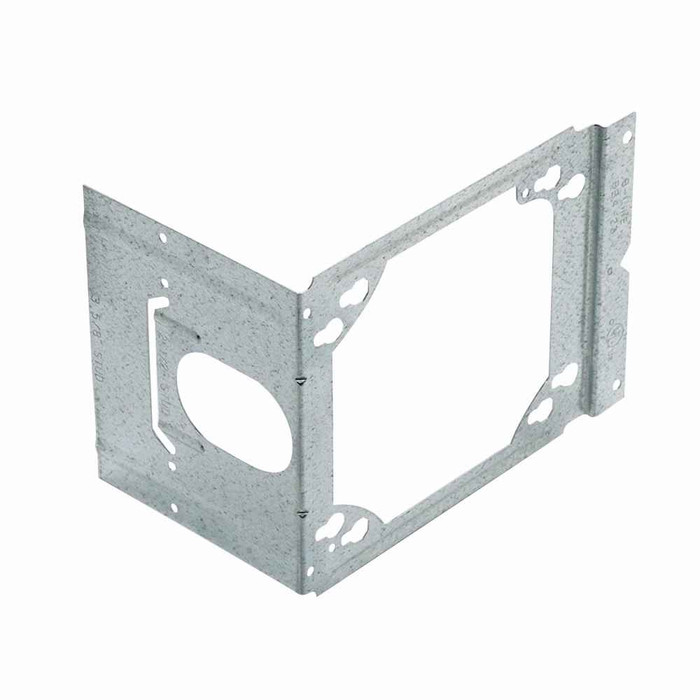

Eaton B-Line Box Support Bracket Wall Stud 1 Inch Dimensions Pre-Galvanized Steel Metal Stud 3.63 2.5 Inch

(No reviews yet) Write a Review

Model: BB4-23
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$578.11
$4.02
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton B-Line Box Support Bracket Wall Stud

Professional Electrical Box Support System for Wall Stud Installation

The Eaton B-Line Box Support Bracket delivers exceptional structural support and installation efficiency for electrical box mounting in wall stud applications. This compact 1 inch dimensional box support bracket provides reliable mounting solution designed for professional electricians, mechanical contractors, and facility installers, offering the proven strength and versatile mounting capabilities that professionals trust from the industry leader in electrical enclosure support systems.

Professional Features & Benefits

Structural Performance & Durability

  • Pre-Galvanized Steel Construction - Superior corrosion resistance and long-lasting structural integrity for demanding electrical installation environments
  • Compact 1 Inch Dimensional Design - Space-efficient mounting solution with 1 inch height, length, and width for tight installation spaces
  • Lightweight 0.137 lb Design - Easy handling and installation while maintaining structural support capabilities for electrical box mounting
  • UL/CUL Listed Safety Compliance - Certified electrical safety standards ensuring reliable performance in commercial and industrial applications

Wall Stud Installation Efficiency

  • Metal Stud Compatibility - Engineered for 3.63 inch and 2.5 inch metal stud sizes providing versatile wall mounting solutions
  • Professional Box Support Design - Optimized bracket configuration for secure electrical box positioning and structural stability
  • Quick Installation System - Streamlined mounting process reducing installation time for electrical contractors and facility professionals

Electrical System Integration

  • Electrical Box Mounting Optimization - Precision-engineered support for reliable electrical enclosure installation in wall stud construction
  • Professional Grade Construction - B-Line quality manufacturing ensuring dependable performance in commercial electrical applications

Technical Specifications

Dimensions: 1 inch height x 1 inch length x 1 inch width, Weight: 0.137 lb, Material: Steel with pre-galvanized finish, Metal stud compatibility: 3.63 inch and 2.5 inch sizes, Product type: Box support brackets, Certifications: UL/CUL listed, Application: Wall stud electrical box mounting, Product category: Wall studs, Product group: Enclosures & Boxes

Installation & Usage

  1. Select appropriate metal stud size (3.63 inch or 2.5 inch) for your wall construction application
  2. Position the box support bracket at the desired electrical box mounting location on the wall stud
  3. Secure the bracket to the metal stud using appropriate fastening hardware for structural stability
  4. Verify proper bracket alignment and structural support before electrical box installation
  5. Mount electrical box to the support bracket ensuring secure attachment and proper positioning
  6. Complete electrical connections following local electrical codes and safety requirements

Professional Applications

Ideal for:

  • Commercial Electrical Installation - Office buildings, retail spaces, and commercial facilities requiring reliable electrical box support
  • Industrial Facility Wiring - Manufacturing plants, warehouses, and industrial buildings with metal stud wall construction
  • Institutional Building Projects - Schools, hospitals, and government facilities requiring code-compliant electrical box mounting
  • Residential Construction - Multi-family housing and residential projects using metal stud framing systems
  • Renovation and Retrofit Projects - Electrical system upgrades in existing buildings with metal stud wall construction
  • Data Center Infrastructure - Electrical box mounting for power distribution and control systems in critical facilities
  • Healthcare Facility Electrical - Medical buildings requiring reliable electrical infrastructure with proper box support
  • Educational Institution Wiring - Schools and universities needing dependable electrical box mounting solutions

Pre-Galvanized Steel Advantage

The pre-galvanized steel construction provides superior corrosion resistance and long-term durability for electrical box support applications. This protective finish ensures reliable performance in various environmental conditions while maintaining structural integrity throughout the service life of the electrical installation, making it ideal for both indoor and protected outdoor electrical applications.

Why Choose B-Line Quality?

B-Line's decades of electrical support system innovation and commitment to safety-rated reliability make this box support bracket the trusted choice for contractors, electricians, and facility professionals worldwide. With UL/CUL listing and proven performance in demanding electrical applications, B-Line delivers the quality construction and dependable structural performance that professionals require for critical electrical infrastructure projects.

Manufacturer Resources

Product Specs

Certifications:
UL/CUL listed
Product Category:
Wall studs
Product Height:
1 in
Product Length Depth:
1 in
Product Weight:
.137 lb
Product Width:
1 in
Department:
Electrical
Product Group:
Enclosures & Boxes
Product Subgroup:
Electrical Boxes
Product Type:
Box support brackets
Product Finish:
Pre-galvanized
Product Size:
Metal stud size: 3.63 inch, 2.5 inch
Product Details:
Box support brackets

B-LINE BB4-23 – Frequently Asked Questions

1) Will the B-Line BB4-23 box support bracket work on 2-1/2 inch metal studs, or is it only for 3-5/8?
Both. The BB4-23 box support bracket is made for metal stud sizes of 3.63 inch and 2.5 inch, so it covers the two stud widths you see most in commercial partition framing. If your wall is framed in something outside those two widths, this is not the bracket for that opening.
2) Is the B-Line BB4-23 electrical box bracket UL listed for a hospital or school job?
The BB4-23 box support bracket is UL/CUL listed, which is what a spec writer on an institutional job is usually looking for on box support hardware. The CUL half means it is recognized for Canadian installations as well.
3) What finish is the B-Line BB4-23 box support bracket, and can it go in a damp location?
Pre-galvanized steel. The zinc coating is applied to the sheet before the bracket is formed, so it carries corrosion protection on the flat faces without a post-fabrication dip. That suits indoor and protected applications inside a stud wall, which is where box support brackets live anyway.
4) Does the B-Line BB4-23 come with screws to fasten it to the stud?
Fastening hardware is a separate line item. The BB4-23 is the bracket alone, and you secure it to the metal stud with the fastener appropriate to your stud gauge before hanging the box on it. Plan on framing screws in your material takeoff.
5) What is the actual part number to order this Eaton B-Line box support bracket?
Order it as B-Line BB4-23. That is the manufacturer part number, from Eaton's B-Line box support fastener line, and it is the identifier a distributor will cross to.
