B-Line Eaton series box suppor...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,473.66

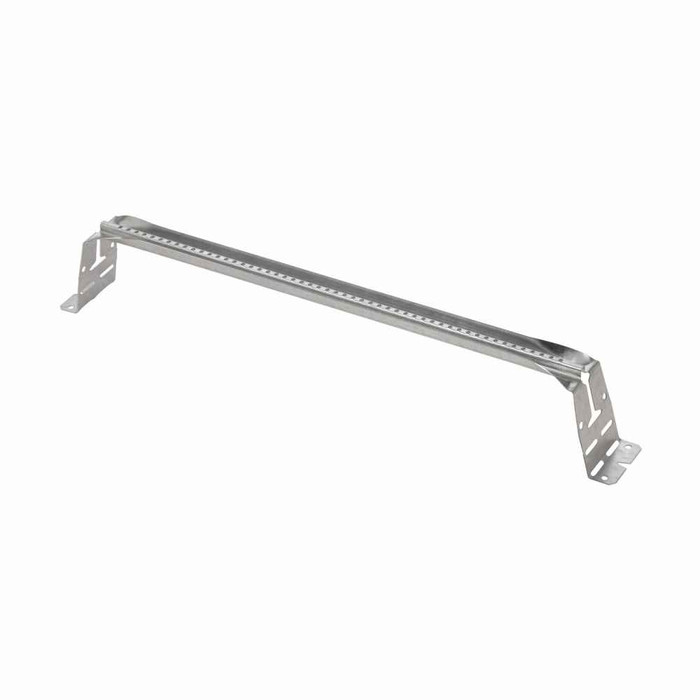

B-Line Eaton series box support fasteners, Wall studs, Mounts 1.5", 2.13", 2.5", and 2.8" deep boxes, 1" Height, 1" Length, 1" Width, 0.315lbs, Metal

B-Line Eaton series box support fasteners, Wall studs, Mounts 1.5", 2.13", 2.5", and 2.8" deep boxes, 1" Height, 1" Length, 1" Width, 0.315lbs, Metal

(No reviews yet) Write a Review

Model: BB2-16D
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,473.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series box support fasteners, Wall studs, Mounts 1.5", 2.13", 2.5", and 2.8" deep boxes, 1" Height, 1" Length, 1" Width, 0.315lbs, Metal stud spacing: 11" to 18", Telescoping box mounting bracket, Pre-galvanized

Manufacturer Resources

Product Specs

Application:
Completely adjustable fits range of stud spacings
Certifications:
UL/CUL listed
Mounting Method:
Mounts 1.5inch, 2.13inch, 2.5inch, and 2.8inch deep boxes
Product Category:
Wall studs
Product Height:
1 in
Product Length Depth:
1 in
Product Weight:
.315 lb
Product Width:
1 in
Department:
Electrical
Product Group:
Enclosures & Boxes
Product Subgroup:
Electrical Boxes
Product Type:
Telescoping box mounting bracket
Product Size:
Metal stud spacing: 11 inch to 18 inch
Product Details:
Telescoping box mounting bracket

B-LINE BB2-16D – Frequently Asked Questions

1) What depth of electrical box does the B-Line BB2-16D box support bracket mount?
It mounts boxes 1.5 inch, 2.13 inch, 2.5 inch and 2.8 inch deep. That covers the common shallow and deep single and multi-gang steel device boxes used in stud walls. A box outside those four depths is not a match for this bracket.
2) Is this box mounting bracket for metal studs or wood framing?
The BB2-16D is a metal stud bracket. Its adjustment range is specified as metal stud spacing of 11 to 18 inches, and it telescopes between stud faces rather than screwing to the side of a wood member. For wood framing you would normally nail or screw the box directly to the stud or use a wood-stud bar hanger instead.
3) Is the B-Line BB2-16D bracket UL listed for electrical work?
Yes, it carries a UL/CUL listing, which is what an inspector or an institutional specification will be looking for on a box support in a commercial wall. The CUL side covers Canadian installations as well.
4) Do I still need to buy the electrical box separately with this bracket?
Yes. The BB2-16D is the telescoping support bracket only. The device box, its mounting screws and any mud ring or plaster ring are ordered separately, and the box you pick has to be one of the 1.5, 2.13, 2.5 or 2.8 inch depths the bracket accepts.
5) Can one part number cover several different stud layouts on the same job?
That is the point of the telescoping design. Because the bracket is fully adjustable across an 11 to 18 inch spacing range, a property manager or contractor standardizing a rough-in package can carry the single BB2-16D instead of separate fixed-length bars for each bay width.
6) Does the BB2-16D come pre-galvanized, and is it suitable for damp interior walls?
The bracket is steel and supplied pre-galvanized, so there is no field painting or coating step before it goes in the wall. Pre-galvanized is an interior, dry to normally humid finish, not a substitute for hot-dip or stainless in wet or corrosive locations.
