B-Line Eaton series conduit su...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,318.49

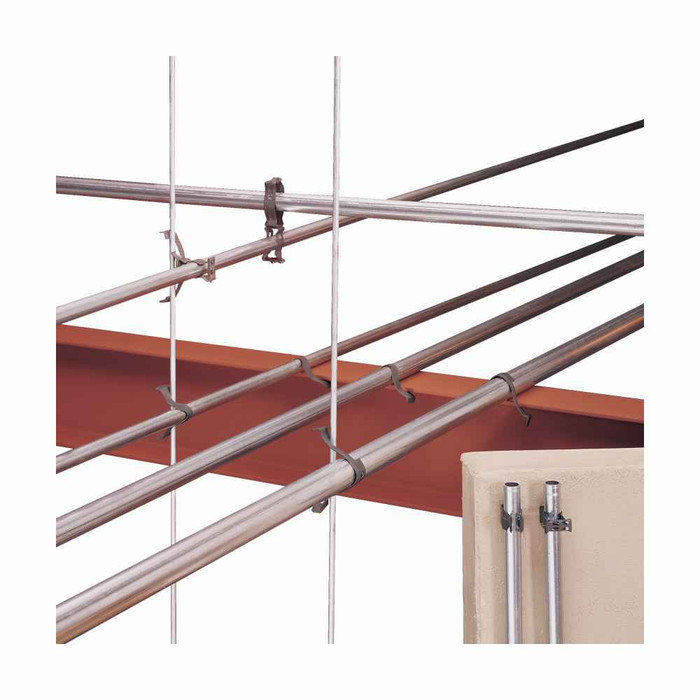

B-Line Eaton series conduit support fasteners, 25 lb load capacity, Steel, 1/2" EMT conduit size, W6 series for 3/8" plain or threaded rod

B-Line Eaton series conduit support fasteners, 25 lb load capacity, Steel, 1/2" EMT conduit size, W6 series for 3/8" plain or threaded rod

(No reviews yet) Write a Review

Model: BP8-S18-W6
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,318.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series conduit support fasteners, 25 lb load capacity, Steel, 1/2" EMT conduit size, W6 series for 3/8" plain or threaded rod

Manufacturer Resources

Product Specs

Certifications:
cULus Listed
Load Capacity:
25 lbs
Product Height:
1.25 in
Product Length Depth:
8 in
Product Weight:
.35 lb
Product Width:
.5 in
Department:
Electrical
Product Type:
W6 series for 3/8" plain or threaded rod
Product Size:
1/2 inch EMT conduit size
Product Details:
W6 series for 3/8" plain or threaded rod
Product Material:
Steel

B-LINE BP8-S18-W6 – Frequently Asked Questions

1) What conduit size does the B-Line BP8-S18-W6 hanger fit?
It's sized for 1/2 inch EMT. One fastener holds one run of 1/2 inch EMT, so for a multi-conduit rack you order one per conduit per support point, or move to a strut-and-strap arrangement.
2) Does this B-Line conduit fastener work on plain rod or does the rod have to be threaded?
Either. The W6 series takes 3/8 inch rod, plain or threaded, so you can hang it off existing all-thread drops or cut plain rod to length without tapping it.
3) How much weight can a single W6 conduit support fastener carry?
Rated load is 25 lbs per fastener. That covers a single 1/2 inch EMT run at normal support spacing; if you are stacking conduits or hanging anything heavier off the same drop, use a trapeze on strut instead of loading one fastener.
4) Is this conduit hanger listed for use on an inspected commercial job?
Yes, the BP8-S18-W6 is cULus Listed, which covers it for both US and Canadian inspection on electrical support work.
5) What is the B-Line conduit fastener made of, and can I use it in a damp area?
The body is steel. There is no coating or corrosion rating stated for it, so treat it as an interior, dry-location support fastener and specify a galvanized or stainless product where it will see moisture or exterior exposure.
6) Is the 3/8 inch rod included with this B-Line hanger?
No. The W6 fastener is the conduit-to-rod attachment only. You supply the 3/8 inch rod, plain or threaded, plus whatever you are anchoring the rod to at the deck.
7) I'm ordering a bulk run of 1/2 inch EMT hangers for a tenant fit-out. What part number do I ask for?
Order B-Line BP8-S18-W6. That is the 1/2 inch EMT, 3/8 inch rod version of the W6 fastener, steel, 25 lb rated. Count one per conduit per support point when you take off the job.
