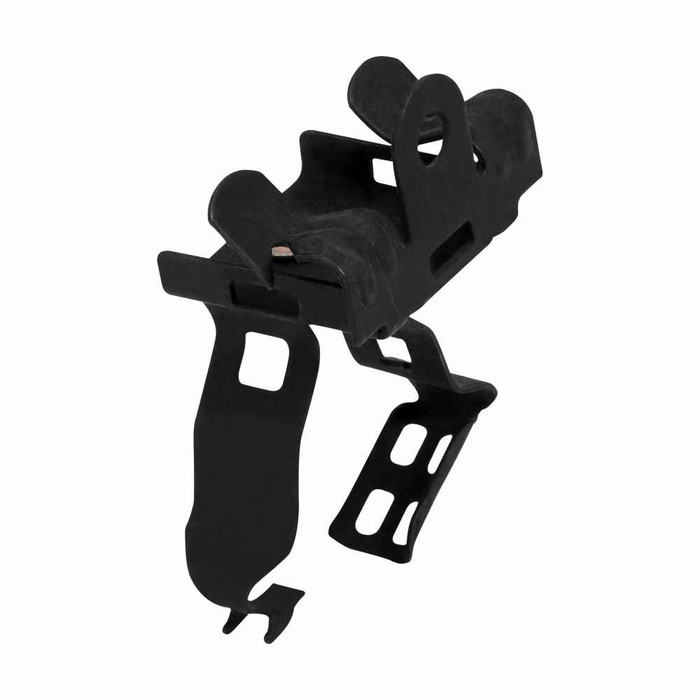

B-Line Eaton series conduit su...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,029.39
B-Line Eaton series conduit support fasteners, Beams, Flange, 1" Height, 1" Length, 1" Width, 0.105lbs, Conduit size: 1.25", Guide-Rite conduit to bea

B-Line Eaton series conduit support fasteners, Beams, Flange, 1" Height, 1" Length, 1" Width, 0.105lbs, Conduit size: 1.25", Guide-Rite conduit to bea

(No reviews yet) Write a Review

Model: BG-20-U-2-4
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,029.39
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series conduit support fasteners, Beams, Flange, 1" Height, 1" Length, 1" Width, 0.105lbs, Conduit size: 1.25", Guide-Rite conduit to beam fasteners, .125" Min mount size, .25" Max mount size

Manufacturer Resources

Product Specs

Application:
Conduit to beam fasteners
Certifications:
UL/CUL listed
Mounting Dimensions Max:
0.25
Mounting Dimensions Min:
0.125
Mounting Method:
Flange
Product Category:
Beams
Product Height:
1 in
Product Length Depth:
1 in
Product Weight:
.105 lb
Product Width:
1 in
Department:
Electrical
Product Group:
Conduit & Fittings
Product Subgroup:
Conduit Accessories
Product Type:
Guide-Rite conduit to beam fasteners
Product Size:
Conduit size: 1.25 inch
Product Details:
Guide-Rite conduit to beam fasteners

B-LINE BG-20-U-2-4 – Frequently Asked Questions

1) What beam flange thickness will this B-Line conduit to beam fastener clamp onto?
It grips flange material from 0.125 inch up to 0.25 inch thick. Thinner sheet or a heavier structural flange outside that 1/8 to 1/4 inch window won't seat properly, so check the flange edge on the beam or bar joist before ordering.
2) Does the Guide-Rite conduit fastener need drilling or welding to attach to a beam?
No drilling, no welding, no anchors. The Guide-Rite fastener mounts by clipping onto the beam flange, which is why the usable range is stated as a flange thickness rather than a hole size. That keeps you off the structural steel and avoids a fire-stop or coating repair on the beam.
3) Is this B-Line conduit support fastener UL listed for an inspected commercial job?
Yes, the Guide-Rite beam fastener is UL and cUL listed, so it carries both the US and Canadian listings inspectors look for on a conduit support submittal.
4) Can I use this instead of a beam clamp and threaded rod for a single conduit run?
For one 1-1/4 inch conduit picked up directly off a beam flange, yes, this replaces the clamp, rod and strap assembly with a single clip. Where the conduit has to drop below the structure, or where you are ganging several runs on a trapeze, you still want a beam clamp with rod and channel instead, since the Guide-Rite holds the conduit at the flange.
