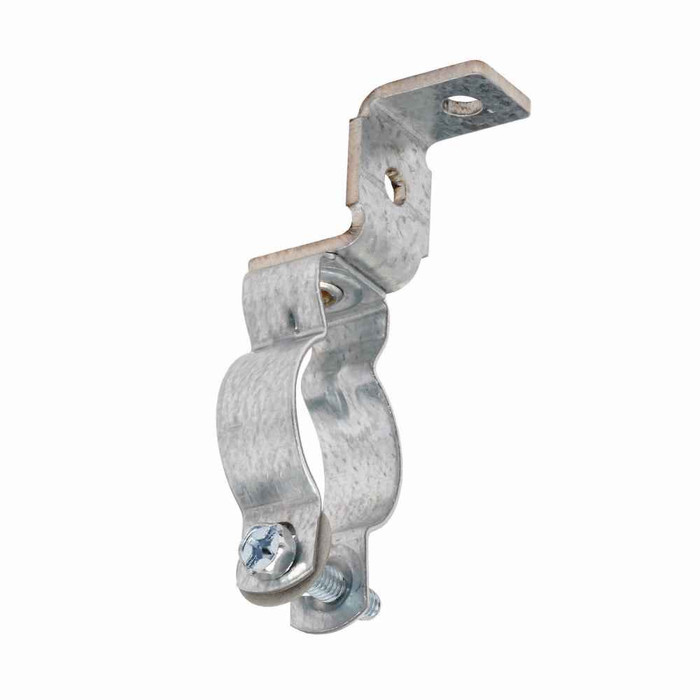

B-Line Eaton series conduit support fasteners, Hangers, 1" Height, 1" Length, 1" Width, 0.19lbs, Conduit size: 1.25" EMT, Deck hanger bracket, 100 lbs

B-Line Eaton series conduit support fasteners, Hangers, 1" Height, 1" Length, 1" Width, 0.19lbs, Conduit size: 1.25" EMT, Deck hanger bracket, 100 lbs

(No reviews yet) Write a Review

Model: BL1425-DH
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$56.86
$8.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series conduit support fasteners, Hangers, 1" Height, 1" Length, 1" Width, 0.19lbs, Conduit size: 1.25" EMT, Deck hanger bracket, 100 lbs load capacity

Manufacturer Resources

Product Specs

Application:
Supports conduit or pipe up to 1.5 inch diameter
Certifications:
UL/CUL listed
Load Capacity:
100 lbs
Product Category:
Hangers
Product Height:
1 in
Product Length Depth:
1 in
Product Weight:
.19 lb
Product Width:
1 in
Department:
Electrical
Product Group:
Mounting Hardware
Product Subgroup:
Brackets
Product Type:
Deck hanger bracket
Product Size:
Conduit size: 1.25 inch EMT
Product Details:
Deck hanger bracket

B-LINE BL1425-DH – Frequently Asked Questions

1) What conduit size does the B-Line BL1425-DH deck hanger fit?
The BL1425-DH is sized for 1-1/4 inch EMT. The broader application rating covers conduit or pipe up to 1.5 inch diameter, so it will take 1-1/4 EMT as its nominal size within that range. If you are running 1/2 or 3/4 EMT, order the matching size in the series rather than this one.
2) How much weight will a B-Line 1-1/4 inch EMT deck hanger bracket hold?
Rated at 100 lbs load capacity. That is the hanger's rating only, not the deck or the fastener into it, so your anchorage into the steel deck or concrete has to be good for at least as much.
3) Is the B-Line BL1425-DH conduit hanger UL listed for electrical work?
Yes, the BL1425-DH carries a UL/CUL listing, which is what an inspector or a spec on an institutional job usually wants to see on conduit support hardware.
4) What is a deck hanger bracket used for compared with a strut clamp or a one-hole strap?
A deck hanger like the BL1425-DH attaches the conduit run up at the deck overhead, so the raceway hangs from the structure rather than being clamped flat to a wall or to a piece of strut. Use a one-hole strap or strut clamp when you have a surface to fasten to; use the deck hanger when the only thing above you is the deck itself and you need the conduit supported off it.
5) Can I use this B-Line hanger on rigid pipe instead of EMT?
The application rating covers conduit or pipe up to 1.5 inch diameter, so it is not EMT-only as a matter of what it will physically hold. The part is nominally sized for 1-1/4 inch EMT, so check the actual outside diameter of your rigid or IMC against that before you commit a whole run to it.
6) What part number do I order for the Eaton B-Line 1-1/4 inch EMT deck hanger?
Order it as BL1425-DH, an Eaton B-Line series part. That single model is the whole offering here, so there is no finish or size suffix to pick.
