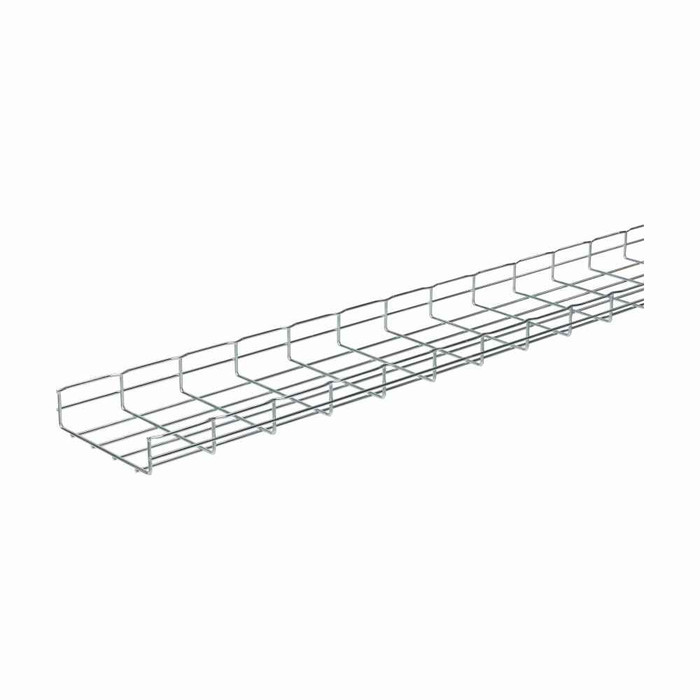

Eaton B-Line series Flex tray wire basket tray, Blue, Steel, 31.5" actual area inside tray, 2" deep flex tray
Manufacturer Resources
Product Specs
- Certifications:
- CE
- Product Height:
- 2.38 in
- Product Length Depth:
- 118.312 in
- Product Weight:
- 11.2 lb
- Product Width:
- 8 in
- Special Features:
- 31.5" area inside tray
- Department:
- Electrical
- Product Type:
- 2" deep flextray
- Product Details:
- 2" deep flextray
- Product Material:
- Steel
B-LINE FT2X8X10 BLU – Frequently Asked Questions
1) What size is the B-Line FT2X8X10 BLU flex tray, and how much usable cable space does it actually give me?
The FT2X8X10 BLU is a 2 inch deep wire basket tray, 8 inches wide, and it ships in a stick measuring 118.312 inches long. Usable fill area inside the tray is 31.5 square inches, which is the number to use when you are calculating cable fill rather than the nominal 2 x 8 outside profile. Overall height measures 2.38 inches, so allow for that plus your support hardware when you plan clearance above a ceiling grid or under a raised floor.
2) Can this B-Line flex tray be cut and bent on site for corners and offsets?
Yes, that is the point of a flex tray. The welded steel wire basket is cut with a bolt cutter or wire cutter at the wire intersections and bent to form elbows, tees, and vertical offsets from the straight 118.312 inch stick, so you are not ordering separate fittings for every direction change. Deburr and treat any cut ends, and keep splice hardware over the cut.
3) Is the B-Line blue flex tray CE marked?
Yes, the FT2X8X10 BLU carries CE certification. That is the rating held on record for this tray; specify from it if your submittal package calls for CE marked cable management.
