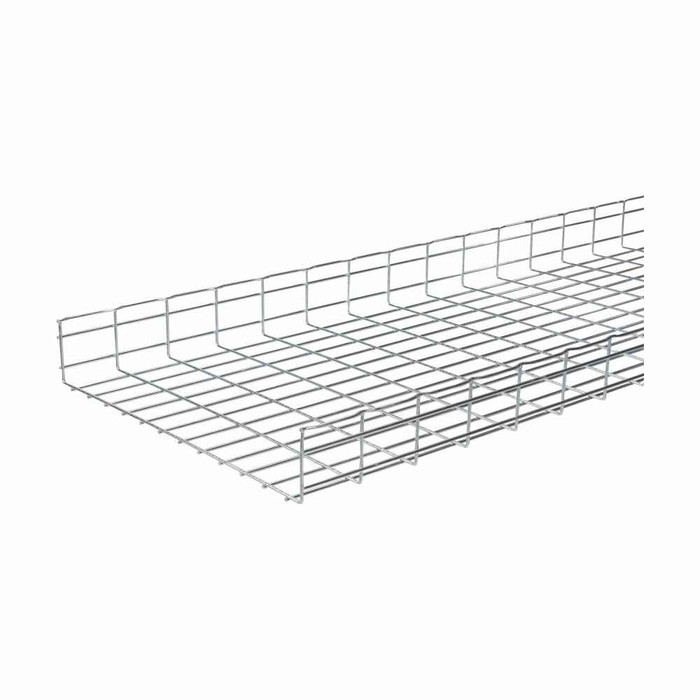

Eaton B-Line series Flex tray wire basket tray, Controlled interior recommended application, Electroplated zinc galvanized, Steel, 119.5" actual area inside tray, 4" deep flex tray
Manufacturer Resources
Product Specs
- Application:
- Controlled interior recommended application
- Certifications:
- CSA
- Product Height:
- 4.38 in
- Product Length Depth:
- 118.312 in
- Product Weight:
- 31.19 lb
- Product Width:
- 30 in
- Special Features:
- 119.5" area inside tray
- Department:
- Electrical
- Product Type:
- 4" deep flextray
- Product Finish:
- Electro-plated
- Product Details:
- 4" deep flextray
- Product Material:
- Steel
B-LINE FT4X30X10 ELG – Frequently Asked Questions
1) Can I run this B-Line flex tray outdoors or in a corrosive area like a wash-down room?
No. The FT4X30X10 ELG is electroplated zinc galvanized steel and is rated for controlled interior use only. Outdoors, in damp or chemically aggressive spaces, or in wash-down areas you want a hot-dip galvanized or stainless basket tray instead. Electroplated zinc is a thin coating and will corrode quickly in those conditions.
2) Does the FT4X30X10 ELG basket tray come with splices, hangers, or hold-down hardware?
The order is the tray section itself, part number FT4X30X10 ELG. Splice connectors, threaded rod and trapeze hardware, wall brackets, and any grounding bonding jumpers are ordered separately. Budget splice hardware at every joint and support hardware at your engineered spacing before you place the order, or the run stops on site.
3) Is the Eaton B-Line FT4X30X10 ELG basket tray approved for use in Canada?
It carries a CSA certification, which is the listing Canadian inspectors look for. Confirm your local AHJ's requirements for the specific occupancy, but the CSA mark is on the product.
4) Can this wire basket tray be cut and bent on site to form elbows and drops?
Yes, that's the point of a welded wire basket system. The steel mesh is cut with a bolt cutter or tray cutter and the section is bent to form 90s, tees, and vertical drops without ordering fittings. Cut ends should be dressed and, because the FT4X30X10 ELG is electroplated rather than hot-dip, touch up bare cut wire with a zinc-rich coating in any area where humidity is a factor.
5) I'm standardizing tray across a building. How do I make sure reorders match what I already installed?
Order by the full part number including the finish suffix: FT4X30X10 ELG. The FT prefix is the flex tray series, 4 is the depth in inches, 30 is the width, 10 is the nominal length in feet, and ELG denotes the electroplated zinc galvanized finish. Drop the ELG and you can end up with a pre-galvanized or hot-dip section that won't match the existing run visually and behaves differently in a damp area.
