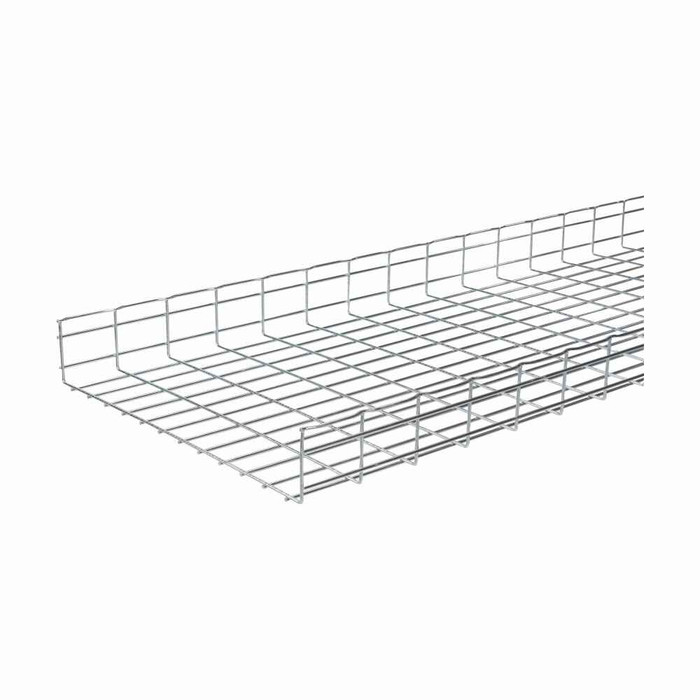

B-Line Eaton series Flex tray wire basket tray, Reended for exterior and corrosive applications, Hot-dip galvanized, Steel, 95.5" actual area inside t

Yes. The FT4X24X10 HD flextray is hot-dipped galvanized steel and is recommended for exterior and corrosive applications, so it suits rooftop runs, wash-down areas, water treatment plants and coastal sites where a pre-galvanized or plain steel tray would rust out. It also carries CSA certification.

The tray is 24 inches wide and 4.38 inches high overall, with a stated 95.5 inch actual area inside the tray and a length/depth figure of 118.312 inches. It is a 4 inch deep flextray, so plan your fill against the 4 inch usable depth rather than the overall height, which includes the wire edge.

Order Eaton B-Line part number FT4X24X10 HD. In that designation FT is flextray, 4 is the 4 inch depth, 24 is the 24 inch width, and HD is the hot-dip galvanized finish. Pre-galvanized and stainless versions of the same profile carry different suffixes, so the HD is what you specify for the corrosion-resistant finish.

One FT4X24X10 HD section weighs 26.59 lb empty. Add that to your cable load when you size trapeze hangers, rod diameter and anchors. At 24 inches wide with a 4 inch depth it is a heavy backbone run, so support spacing should follow the cable load you are actually pulling.

Wire basket tray like the 4 inch deep FT4X24X10 HD is the usual choice for data, comms and low voltage bundles: the open mesh gives free air ventilation, lets you drop cable out anywhere along the run, and cuts and bends on site with a bolt cutter instead of needing fabricated fittings. Solid bottom tray is what you want when cables need physical shielding or EMI separation, and ladder tray suits long spans of large power feeders. For an outdoor or corrosive run, the hot-dip galvanized finish here is the deciding factor over pre-galvanized mesh.

Yes. The FT4X24X10 HD is the tray section only. Splice washers or clips to join sections end to end, plus wall brackets, trapeze hangers, threaded rod and anchors, are separate items. Match the accessory finish to the tray: if you are running this outdoors or in a corrosive area, use hot-dip galvanized or stainless hardware so the fasteners do not fail before the tray does.

The tray is CSA certified, which is what an inspector on a Canadian job will look for. That is the only listing stated for it, so if your spec calls out an additional mark, confirm against the drawing.

Yes, that is the point of mesh tray. Flextray is cut with a bolt cutter or mesh cutter and formed into elbows, tees and drops in the field, so you are not waiting on fabricated fittings. One caution with the hot-dip galvanized version: every cut exposes bare steel, so brush cut ends with a cold galvanizing compound before you leave, otherwise the corrosion resistance you paid for starts failing at the cuts.
