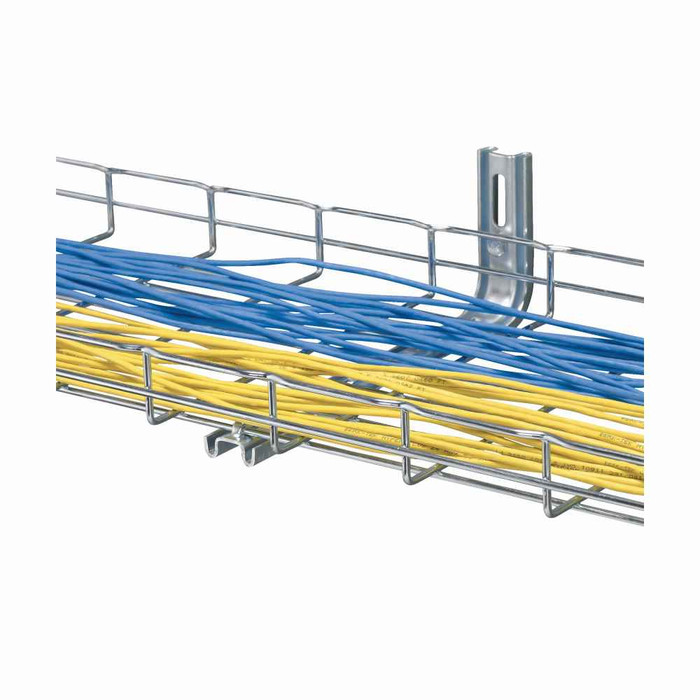

Eaton B-Line series Flextray wire basket tray, Steel, Flex tray wall mount kit
Manufacturer Resources
Product Specs
- Certifications:
- UL Classified
- Compliances:
- CSA
- Product Height:
- 2 in
- Product Length Depth:
- 2 in
- Product Weight:
- 1.3 lb
- Product Width:
- 10 in
- Department:
- Electrical
- Product Group:
- Mounting Hardware
- Product Subgroup:
- Mounting Accessories
- Product Type:
- Flex tray wall mount kit
- Product Details:
- Flex tray wall mount kit
- Product Material:
- Steel
B-LINE WB48WMK – Frequently Asked Questions
1) What is the B-Line WB48WMK wall mount kit used for?
It is a wall mount kit for Eaton B-Line Flextray wire basket cable tray. Instead of hanging the basket from threaded rod or trapeze hangers off the deck, the kit anchors the tray run along a wall surface. It is a mounting accessory only, so the wire basket tray sections and any splice or connector hardware are separate items.
2) How far off the wall does the WB48WMK bracket hold the cable basket?
The bracket measures 10 inches across with a 2 inch height and 2 inch depth, so the 10 inch dimension is the arm that carries the basket out from the wall face. Check that against your basket width before ordering, since a tray wider than the bracket arm will overhang unsupported.
3) Is the B-Line Flextray wall mount kit UL listed for an electrical inspection?
The kit is UL Classified and carries CSA compliance, which is what an inspector or a spec writer on a commercial or institutional job will be looking for on cable tray support hardware in both US and Canadian work.
4) What material is the Flextray wall mount kit made from?
Steel. That is the same base material family as the Flextray wire basket it supports, which keeps the bracket strength in line with the tray run rather than being the weak point at the wall.
5) Do I order the WB48WMK by the piece or does one kit do a whole tray run?
WB48WMK is a single mounting kit, ordered per support point. A wall run needs a bracket at each support interval along its length, so count your spacing first and order that quantity rather than one kit per tray section.
6) How much does one Flextray wall mount bracket weigh?
1.3 lb per kit. Light enough that a single electrician can set brackets along a wall run without a lift, and the load math for your anchors comes down almost entirely to cable fill rather than the bracket itself.
