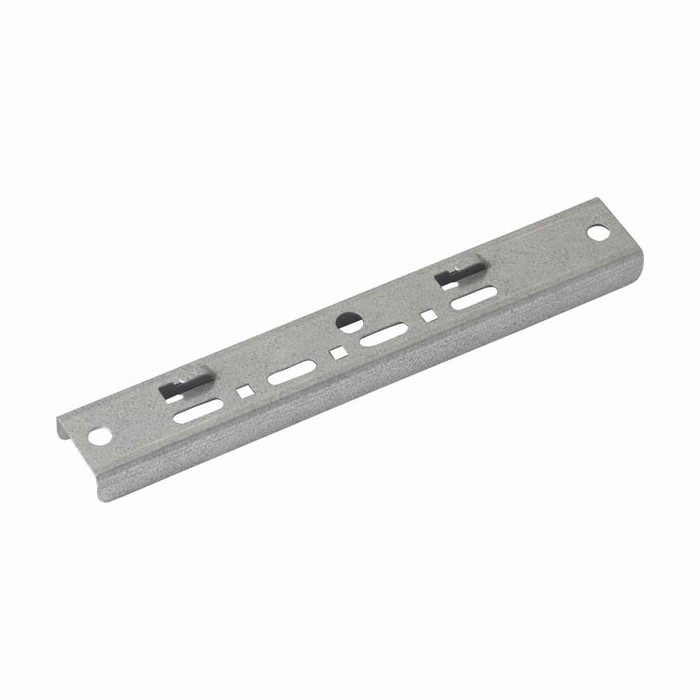

Eaton B-Line series Flextray wire basket tray, Used with (SB301-1/2 X 8) threaded rod protector, Hot dip galvanized, Steel, 12" center trapeze hanger
Manufacturer Resources
Product Specs
- Application:
- (SB301-1/2 x 8) threaded rod protector
- Certifications:
- cULus Listed
- Product Height:
- 1.77 in
- Product Length Depth:
- 15.69 in
- Product Weight:
- .98 lb
- Product Width:
- .78 in
- Department:
- Electrical
- Product Group:
- Mounting Hardware
- Product Subgroup:
- Hangers
- Product Type:
- Center trapeze hanger
- Product Finish:
- Hot-dipped galvanized
- Product Details:
- Center trapeze hanger
- Product Material:
- Steel
B-LINE FTB12CTHD – Frequently Asked Questions
1) Can the FTB12CTHD trapeze hanger be used outdoors or in a wet/corrosive area?
It is hot-dip galvanized steel, which is the finish B-Line specifies for outdoor, damp, and corrosive environments such as parking structures, tunnels, wastewater plants, and exterior runs. For a dry indoor office or data center run, a pre-galvanized version is usually enough; hot dip is what you order when the tray is exposed.
2) Is this B-Line Flextray hanger cULus Listed for a grounding/bonding inspection?
The FTB12CTHD carries a cULus Listing, so it is recognized in both US and Canadian jurisdictions. That matters on inspected commercial jobs where the cable tray support system has to be listed along with the tray itself.
3) What is the difference between a center trapeze hanger and a standard trapeze for wire basket tray?
A standard trapeze carries the tray on a channel spanning two rods and the tray sits on top. A center trapeze hanger like the FTB12CTHD is made to pick the basket up at its centerline, which keeps the support profile tight to the tray and is used where side-rail clearance is limited or where trays are stacked close together. If you need to clamp the tray at the rails or stack multiple trays on one pair of rods, a channel trapeze kit is the better choice.
4) What is the exact part number to order this 12 inch hot dip galvanized Flextray center trapeze hanger?
Order Eaton B-Line part number FTB12CTHD. The FTB prefix is the Flextray bracket family, 12 is the tray width in inches, CT is center trapeze, and HD is the hot dip galvanized finish.
