Eaton B-Line series hanging system, KwikWire single style hook termination, Hook termination, 3/32" wire max, 120" wire length
Manufacturer Resources
Product Specs
- Certifications:
- cULus Listed
- Product Diameter:
- 2.1 in
- Product Height:
- 9.05 in
- Product Weight:
- 2.1 lb
- Wire Diameter Max:
- .093 in
- Wire Length:
- 120 in
- Department:
- Electrical
- Product Type:
- Hook termination
- Product Model:
- KwikWire single style hook termination
- Product Details:
- Hook termination
B-LINE BKH-094-120K – Frequently Asked Questions
1) Is the Eaton B-Line KwikWire hook termination UL listed for electrical work?
Yes, it is cULus Listed, so it carries both the US and Canadian listing marks. That matters on inspected commercial and institutional jobs where every part of a suspended lighting or cable tray support has to be a listed component.
2) What does the hook end of this KwikWire assembly attach to?
The hook termination is the end that catches an existing anchor point, a threaded rod eye, a beam clamp eye, a fixture hanger loop or a ceiling ring. You are not drilling or threading anything at that end, you just drop the hook on and let the gripper set the height. Use a different KwikWire termination style, such as a looped or toggle end, when there is nothing to hook onto.
3) Why is it called a single style KwikWire, and what is the difference from a double?
Single style means one wire with one gripper, so it handles one suspension point per assembly. A fixture that needs support at two or four corners takes that many assemblies. Double style kits run two legs off one termination, which is what you use for V-hanging a run of strut or tray where you also need lateral stability.
4) Should I use wire rope hangers or threaded rod for suspending light fixtures in an open ceiling?

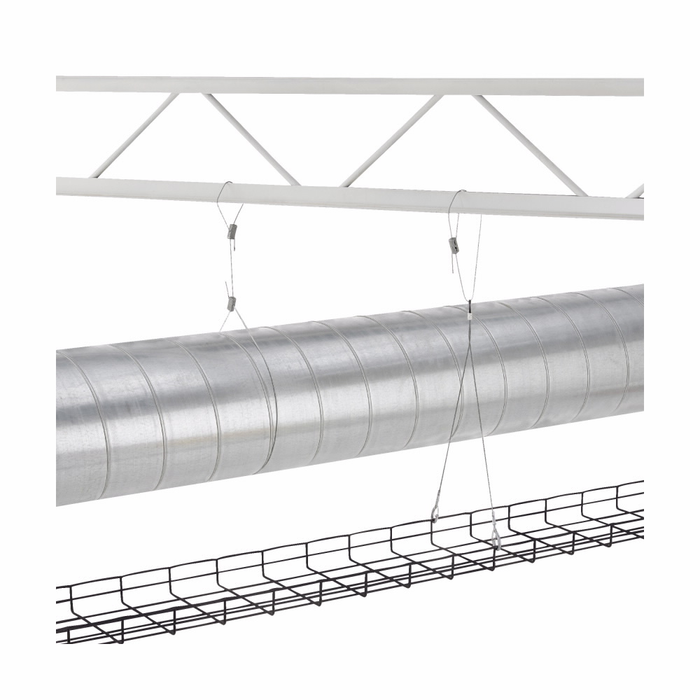

Wire rope like the KwikWire system is faster on repetitive drops, you set the height by pulling the cable through the gripper instead of cutting and threading rod to length. Rod is the choice where the support has to resist push as well as pull, such as seismic bracing or anything that must not swing. For a straight vertical hang carrying a fixture, tray or duct in tension only, the 3/32 inch wire assembly is the quicker install.
5) What do I need to order with the BKH-094-120K for a four-point fixture hang?
Order one assembly per suspension point, so four of the BKH-094-120K for a four-corner hang. Each brings its own 120 inch wire and hook, so nothing else is needed at the cable end, but you do need an anchor at the structure for each hook to catch, whether that is a beam clamp with an eye, an anchor with a loop, or existing rod.
6) What are the dimensions and weight of the BKH-094-120K hook termination?
The assembly measures 9.05 inches in height with a 2.1 inch diameter and ships at 2.1 pounds, including the 120 inch wire coil. The compact body is why these fit in a pouch on a lift, which is the point of a wire hanging system over threaded rod.
