Eaton B-Line series hanging system, KwikWire wire rope, Y Hook termination, 80" wire length
Manufacturer Resources
Product Specs
- Certifications:
- cULus Listed
- Product Diameter:
- .09375 in
- Product Height:
- 80 in
- Product Weight:
- 4.624 lb
- Special Features:
- Includes Assembly and BKC100 clip
- Wire Length:
- 80 in
- Department:
- Electrical
- Product Type:
- Y Hook termination
- Product Model:
- KwikWire wire rope
- Product Size:
- 30 inch leg
- Product Details:
- Y Hook termination
B-LINE BKYH30-094-80K – Frequently Asked Questions
1) What is the wire length on the B-Line KwikWire BKYH30-094-80K Y hook hanger, and how far below the structure will it hang?
The BKYH30-094-80K comes with 80 inches of wire rope, so the maximum drop from the anchor point is 80 inches. The gripper is field-adjustable, so you shorten the drop on site by pulling the wire through and trimming the excess rather than ordering a different length.
2) What does the 30 inch leg mean on this KwikWire Y hook assembly?

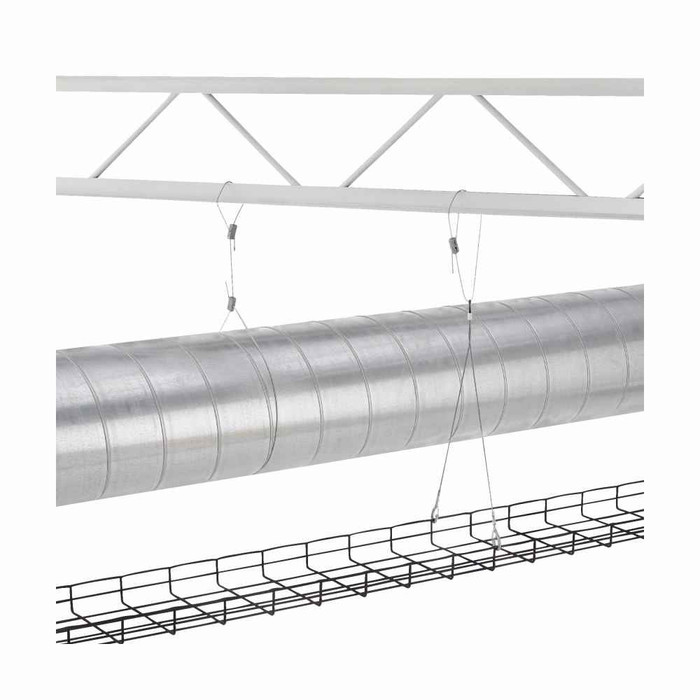

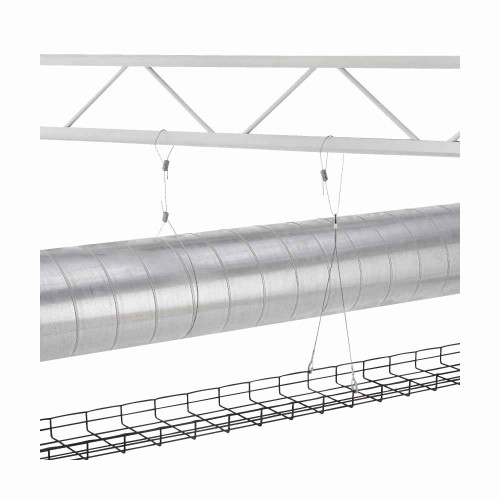

It is a Y, or two-legged, termination: a single drop wire splits into two legs that each run 30 inches to a hook. That spread is what lets one hanging point carry a fixture or tray at two spaced attachment points instead of one.
3) What comes in the box with the BKYH30-094-80K, or do I need to order the gripper separately?
The kit ships complete: the wire rope assembly plus a BKC100 clip. You supply the structural anchor at the top (beam clamp, eye lag, or concrete anchor) to suit what you are hanging from.
4) Should I use a Y hook wire rope hanger or a single drop for suspending a light fixture?
Use the Y termination when the load needs two spaced pick-up points from one overhead anchor, such as a linear fixture or a lay-in troffer that would rotate on a single wire. A single-leg drop is simpler and fine for a centrally balanced load or for pipe and small tray runs where each support has its own anchor. This assembly gives two 30 inch legs off one 80 inch drop.
5) How heavy is the B-Line KwikWire BKYH30-094-80K assembly?
Shipping weight is 4.624 lb for the complete assembly with clip. That is the hanger itself, not a load rating, so size the anchor for the hanger plus whatever you are suspending.
