B-Line Eaton series open rack...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$139.63
$122.13
B-Line Eaton series open racks, 11 Gauge steel, Plates, and #12-24 mounting hardware, Mounting spaces: 1, 1/2" Space between racks, Telco gray powde

B-Line Eaton series open racks, 11 Gauge steel, Plates, and #12-24 mounting hardware, Mounting spaces: 1, 1/2" Space between racks, Telco gray powde

(No reviews yet) Write a Review

Model: SB576A01TG
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$139.63
$122.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series open frame racks, 11 Gauge steel, (2) Plates, and #12-24 mounting hardware, Mounting spaces: 1, 1/2" Space between racks, Telco gray powder coat, 23" Equipment rack to 19" panel mount adapter plate

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Product Height:
1.69 in
Product Length Depth:
2 in
Product Weight:
.4 lb
Product Width:
.13 in
Department:
Electrical
Product Model:
23" equipment rack to 19" panel mount adapter plate
Product Finish:
Telco gray powder coat
Product Material:
Steel

B-LINE SB576A01TG – Frequently Asked Questions

1) What does the Eaton B-Line SB576A01TG adapter plate actually do?

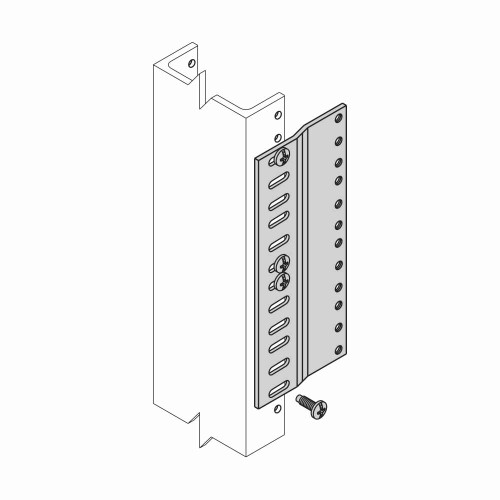

It adapts a 23 inch equipment rack so you can mount standard 19 inch panels and equipment in it. Instead of replacing the rack, you fasten a pair of these plates to the 23 inch rails and mount your 19 inch gear to them. The kit ships as (2) plates with #12-24 mounting hardware.
2) How much rack space does the SB576A01TG adapter take up?
One mounting space. The plate covers a single mounting space, so it suits a 1U panel or device rather than a tall multi-rack-unit chassis. For taller equipment you need adapter plates sized for the number of spaces that equipment occupies.
3) Can I use the SB576A01TG to put 23 inch equipment into a 19 inch rack?
No, it works the other direction. The plate adapts a 23 inch rack to accept 19 inch panel mount equipment. Wider 23 inch gear will not fit a 19 inch frame with this part.
4) Do I need extra screws to mount a panel to this B-Line adapter plate?
#12-24 mounting hardware comes with the pair of plates, which is the standard thread for B-Line open frame rack rails. If your panel uses a different thread, such as M6 or 10-32, you'll need the matching screws for that side.
5) How thick is the steel on this 23 inch to 19 inch rack adapter plate?
11 gauge steel, which is the same heavy gauge used on B-Line open frame rack uprights, so the plate is not a light bracket. Listed dimensions are 1.69 in height, 2 in length/depth and .13 in width, at .4 lb.
6) What part number should I order for the B-Line 23 inch to 19 inch adapter plate?
Order Eaton B-Line SB576A01TG. That single model covers the pair of telco gray plates with the #12-24 hardware.
7) What is the finish and material on the SB576A01TG, and will it match my existing B-Line open frame rack?
Steel with a telco gray powder coat, the same finish B-Line uses on its open frame racks, so it blends with gray telco racks and ladder rack in a typical MDF or IDF room. If your rack is black, the plate will not match visually.
8) Is there a gap left between racks when using these adapter plates?
The design allows 1/2 inch of space between racks. Worth knowing if you're ganging 23 inch frames in a row and laying out cable pathway or vertical managers between them.
