B-Line Eaton series open rack...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$290.69
$284.98
B-Line Eaton series open racks, 11 Gauge steel, Plates, and #12-24 mounting hardware, Mounting spaces: 6, Yellow zinc, 23" Equipment rack to 19" pan

B-Line Eaton series open racks, 11 Gauge steel, Plates, and #12-24 mounting hardware, Mounting spaces: 6, Yellow zinc, 23" Equipment rack to 19" pan

(No reviews yet) Write a Review

Model: SB576A06YZ
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$290.69
$284.98
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series open frame racks, 11 Gauge steel, (2) Plates, and #12-24 mounting hardware, Mounting spaces: 6, Yellow zinc, 23" Equipment rack to 19" panel mount adapter plate

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Product Height:
10.44 in
Product Length Depth:
2 in
Product Weight:
2.2 lb
Product Width:
.13 in
Department:
Electrical
Product Model:
23" equipment rack to 19" panel mount adapter plate
Product Finish:
Yellow zinc chromate
Product Material:
Steel

B-LINE SB576A06YZ – Frequently Asked Questions

1) What does the B-Line SB576A06YZ adapter plate actually do?

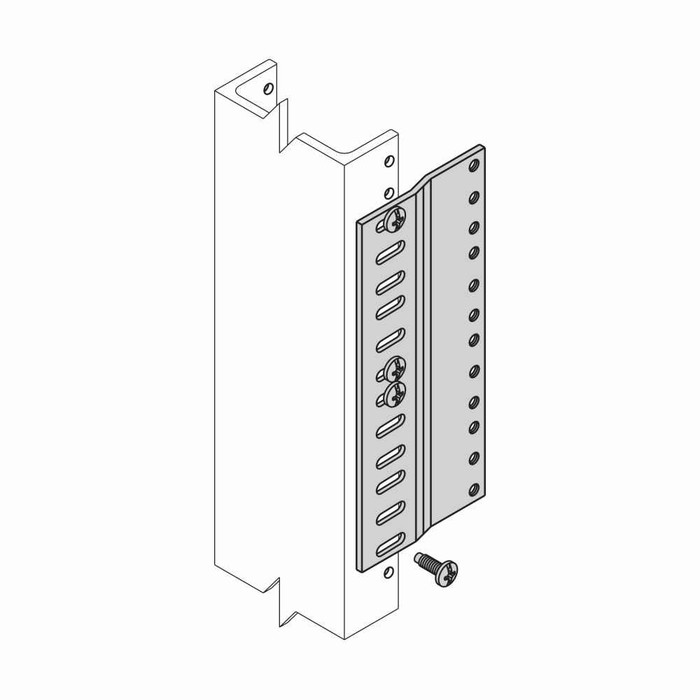

It adapts a 23 inch equipment rack to accept 19 inch panel mount gear. The kit is a pair of plates that mount to the rack rails and give you 6 mounting spaces of 19 inch rail on a 23 inch frame, so telecom-width racks can carry standard 19 inch panels, switches, and patch panels.
2) How much rack space does the SB576A06YZ adapter give me, and is 6 spaces enough for a patch panel and a switch?
The kit provides 6 mounting spaces, which is 6 rack units of usable 19 inch rail. A 1U or 2U patch panel plus a 1U switch fits inside that with room left over; anything taller than 6U needs a second adapter or a larger plate. Plate height is 10.44 inches, which is the physical span of those 6 spaces.
3) Does the B-Line 23 inch to 19 inch adapter plate come with mounting screws?
Yes. #12-24 mounting hardware is included with the two plates, so you are not sourcing screws separately for attaching the adapter. Note that #12-24 is also the thread you will be using to hang equipment on the 19 inch rail, so stock extra screws and washers for the gear itself.
4) I have a 19 inch rack, do I need this adapter?
No. This plate only makes sense if your frame is a 23 inch (telecom width) rack and the gear you are installing is 19 inch EIA. On a 19 inch rack the equipment mounts straight to the rails and the adapter would only cost you space. Buy it when the rack was installed for telco gear and you are now hanging data equipment on it.
5) Will a 19 inch panel with 10-32 tapped holes work on this B-Line adapter?
The rail thread here is #12-24, which is what the included hardware matches. Panels themselves are not tapped, they have slots or clearance holes, so hole thread is a rack-side question and #12-24 is standard on B-Line open frame racks. If your existing rack is 10-32, use 10-32 screws to fasten the adapter plates and keep the #12-24 for the equipment side.
6) What part number do I order for the 6 space yellow zinc B-Line adapter plate?
Order MPN SB576A06YZ from Eaton B-Line. That code carries the 6 mounting space size and the yellow zinc finish, so there is no separate finish or size suffix to specify.
7) Is the yellow zinc finish on this rack adapter OK for a damp or unconditioned telecom room?
The plates are 11 gauge steel with a yellow zinc chromate finish, which gives corrosion resistance suitable for indoor equipment rooms, including unconditioned closets and basements. It is not a finish intended for outdoor or wash-down exposure. Cosmetically it reads gold, so it will not colour match a black rack.
